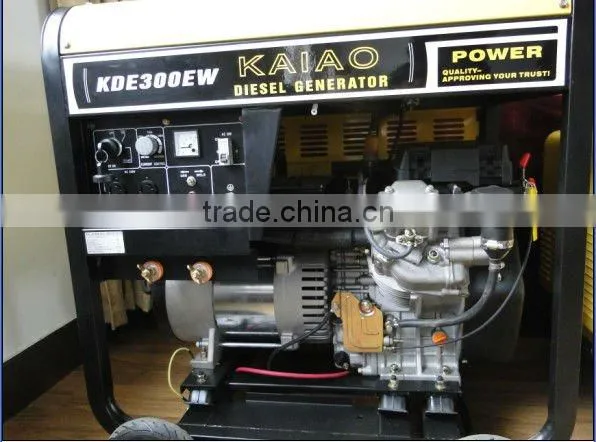

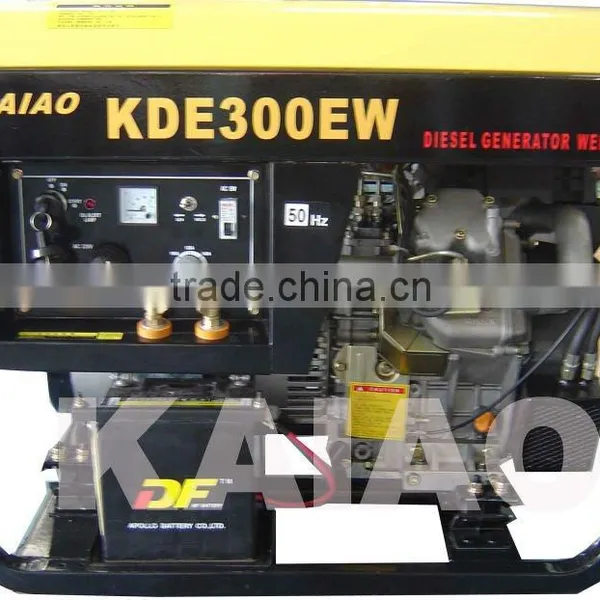

Welding Set (KDE300A)
Negotiable
MOQ: 5 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KAIAO
Model Number:
KDE300EW
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
KAIAO
Model Number
KDE300EW
Output Type
AC Single Phase
Speed
3000
Frequency
50Hz
Rated Power
3Kva
Rated Voltage
230V
Rated Current
13A
Specifications
1.CE & ISO9001 approved2.Powered by KaiAo advanced diesel engine
3.Dula function integrated
4.Available for different market
| WUXI KAIAO POWER MACHINERY CO., LTD | |
| Model | KDE300EW |
| Frequency(Hz) | 50 |
| Rated output(Kva) | 3 |
| Rated.AC voltage(V) | 230 |
|
Current(A) |
13 |
| No-load welding voltaged(V) | 65 |
| Rated welding DC(A) | 300 |
| Power factor | 1 |
| Starting system | Electric Starter |
| Operatong noise lecel(at 7m):dB(A) | 77 |
| Fuel tank capacity(L | 30 |
| Model | R2V840-V2 |
| Engine type | Single-cylinder,vertical,4-stroke air-cooled diesel engine |
| Bore × Stroke(mm) | 2-86×72 |
| Fuel | Summer:0# Winter: -10# |
| Lubricatiom oil Model | SAE10W-30(above CD grade) |
| Lubricatiom oil volume(L) | 1.7 |
| Fuel comsumption Rate(g.kw/h) | 298 |
| Displacemen(L) | 0.812 |
| Power/speed:KW, r/min | 11.76/3000 |
| Compression Ratio | 19:01 |
| Combustion system | Direct lnjection |
| Voltmeter | Yes |
| Socket | 2 |
| circuit breaker | Yes |
| Oil warning light | Yes |
| Oil alert | Yes |
| DC circuit breaker | optional |
| Calculagraph | optional |
| Big Wheel | optional |
| Current meter | optional |
| ATS | optional |
| AMF Panel | optional |
| Remote control | optional |
| Dimension(L×W×H):mm | 850×780×820 |
| Dry weight(kg) | 175 |
Welding Set (KDE300A)
1. A dual use machine with excellent performance allows the customers lower cost.
2. Easy arc striking with steady electric arc
3. convenient adjustment of welding current
4. Suitable for dlectrode 2.0-4.0mm diameter. Easy operation.
