Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > Diesel Welder Generator (KDE6500EW)

Diesel Welder Generator (KDE6500EW)

Name: Diesel Welder Generator (KDE6500EW)
Brand: KAIAO
SKU: 104347405
Availability: InStock

Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

KAIAO

Model Number:

KDE6500EW

Wuxi Kaiao Power Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name KAIAO

Model Number KDE6500EW

Voltage 230V

Current 8.7A

Dimensions 760*510*710(MM)

Weight 138KG

Usage ARC WELDING

Specifications

1.Low oil consumption and low noise
2.One machine with two function(welding and generator)
3.CE & ISO approved
4.Best price

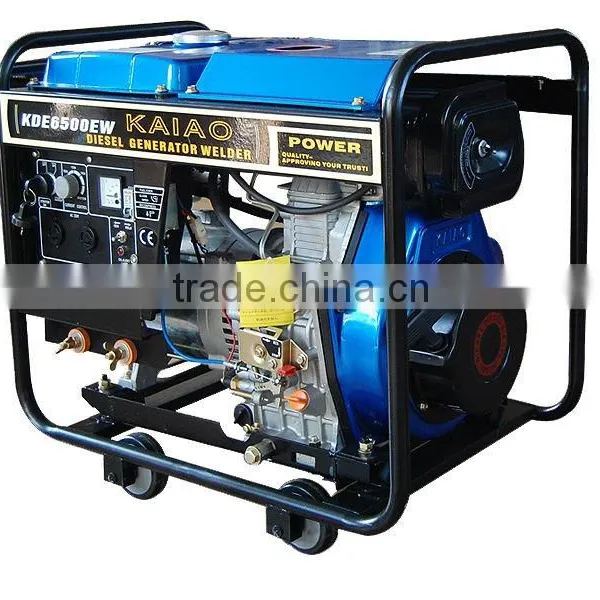

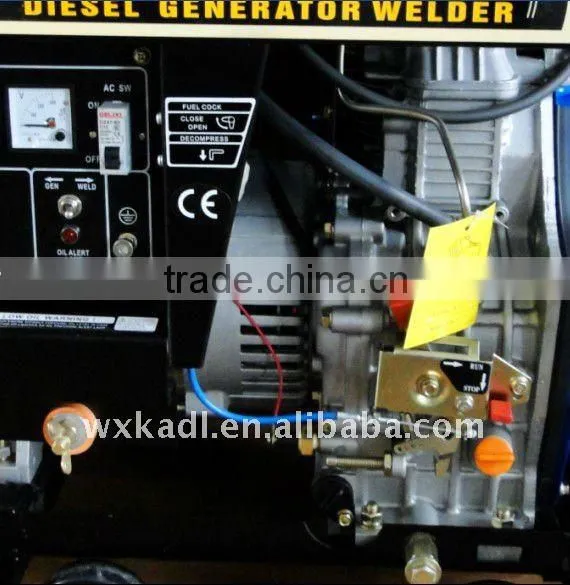

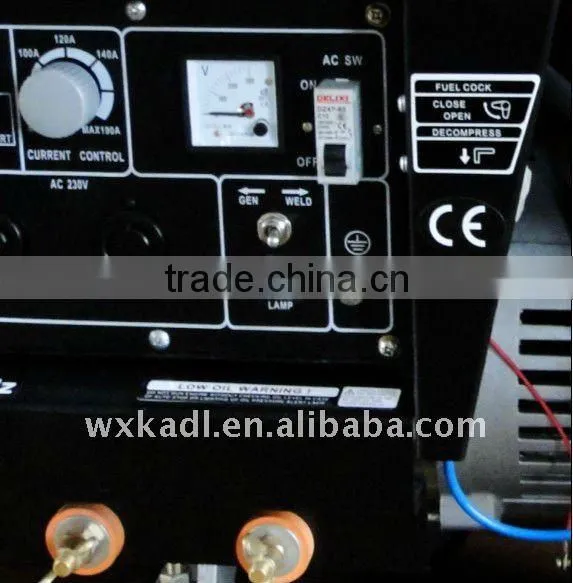

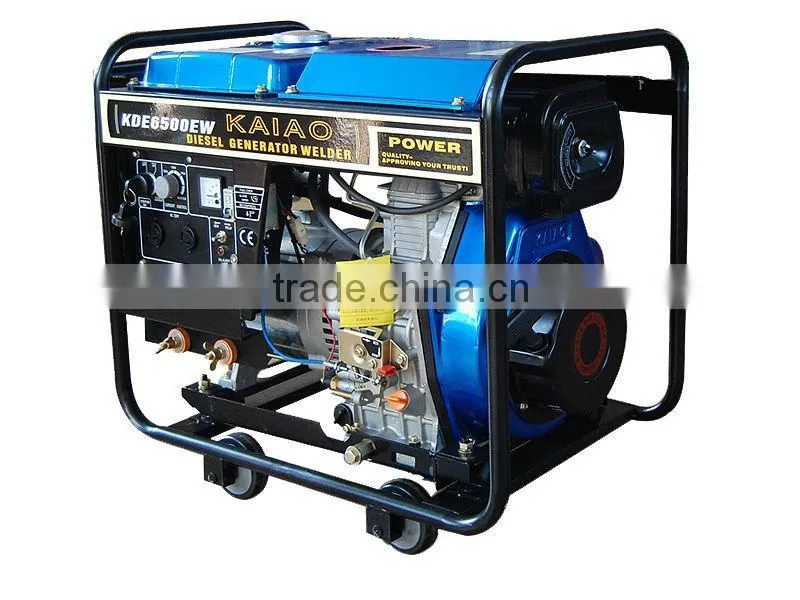

Diesel Welder Generator(KDE6500EW)

1.CE&ISO9001 approved, powered by KaiAo advanced air-cooled diesel engine

2.Dual function integrated in one machine, convenient switch

3.Stable welding current & waveform

4.Large fuel tank, ensuring hours of continuous output

5.Avariety of specially-designed control panels available for different market

WUXI KAIAO POWER MACHINERY CO., LTD

GENERATOR /WELDER	Model	KDE6500EW
	Frequency:Hz	50
	Rated output:Kva	2
	Rated.AC voltage:V	230
	current:A	8.7
	No-load welding voltaged:V	65
	Rated welding voltaged:V	26--30
	Rated welding DC:A	200
	Current adjusting extension	50--200
	Electric welding load rate	50%
	Phase	Single phase
	Power factor:COS	COS=1
	Alternator type	self excited,2 pole,single phase alternator
	Starting system:	Electric Starter
	Operatong noise lecel(at 7m):dB(A)	77
	Fuel tank capacity(L):L	12.5
ENGINE	Model	KA186FA
	Engine type	Single-cylinder,vertical,4-stroke air-cooled diesel engine
	Bore × Stroke:(mm)	86×72
	Fuel	Summer:0# Winter: -10#
	Lubricatiom oil Model	SAE10W-30(above CD grade)
	Lubricatiom oil volume:L	1.65
	Fuel comsumption Rate(g.kw/h)	275.1
	Displacement:L	0.418
	Power/speed:KW, r/min	5.7/3000
	Compression Ratio	19
	Combustion system	Direct lnjection
