Diesel Welding Generator Machine

Diesel Welding Generator Machine photo-1
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KAIAO
Model Number:
KDE6500EW
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name KAIAO
Model Number KDE6500EW
Dimensions 640*480*530
Usage welder

Specifications

1.Low oil consumption and low noise
2.Excellent performance
3.CE & ISO approved
4.One Machine with two function,save cost

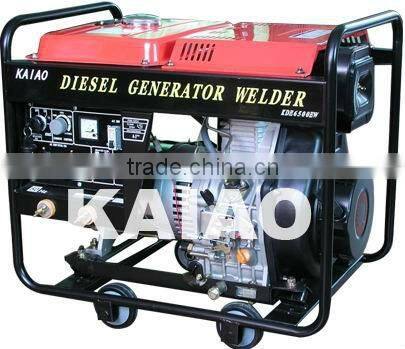

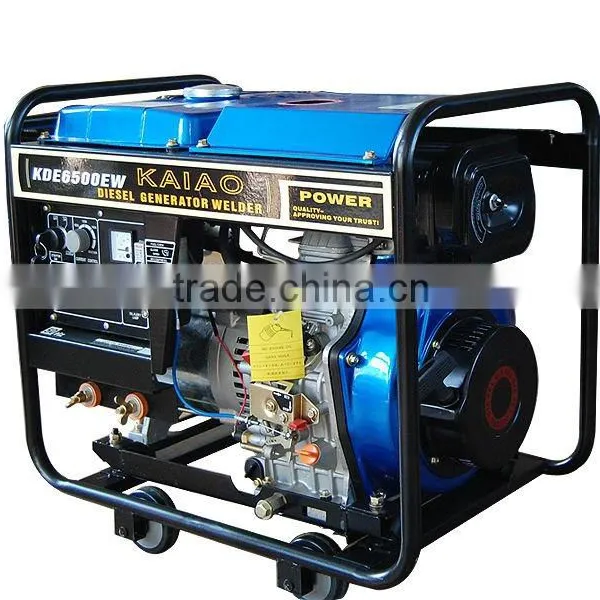

Arc Welding Machine (KDE6500EW)

1. A dual use machine with excellent performance allows the customers lower cost.

2. Easy arc striking with steady electric arc

3. convenient adjustment of welding current

4. Suitable for dlectrode 2.0-4.0mm diameter. Easy operation.



  WUXI KAIAO POWER MACHINERY  CO., LTD

GENERATOR /WELDER                             Model KDE6500EW
Frequency:Hz 50
Rated output:Kva 2
Rated.AC voltage:V 230
current:A 8.7
No-load welding voltaged:V 65
Rated welding voltaged:V 26--30
Rated welding DC:A 200
Current adjusting extension 50--200
Electric welding load rate 50%
Phase Single phase
Power factor:COS COS=1
Alternator type self excited,2 pole,single phase alternator
Starting system: Electric Starter
Operatong noise lecel(at 7m):dB(A) 77
Fuel tank capacity(L):L 12.5
ENGINE Model KA186FA
Engine type Single-cylinder,vertical,4-stroke air-cooled diesel engine
Bore × Stroke:(mm) 86×72
Fuel Summer:0# Winter: -10#
Lubricatiom oil Model SAE10W-30(above CD grade)
Lubricatiom oil volume:L 1.65
Fuel comsumption Rate(g.kw/h) 275.1
Displacement:L 0.418
Power/speed:KW, r/min 5.7/3000
Compression Ratio 19
Combustion system Direct lnjection
  Dimension(L*w*h) 640*480*530
  net weight 105kg
