1.Application of double rotor hammer crusher
Hammer mill pulverizer for crushing all kinds of hard and abrasive materials. The compressive strength of the material is not more than 100MPa, the water content of less than 15%. Broken material for coal, salt, white rock, gypsum, brick, limestone, etc.. Also used for crushing waste fiber , strong flexibility and toughness of broken wood, paper or broken asbestos cement recycling to asbestos fibers, etc..
2.Features of double rotor hammer crusher
1.simple structure
2.high crushing rotio
3.large capacity and easy maintaince
4.low operating cost
5.high efficiency

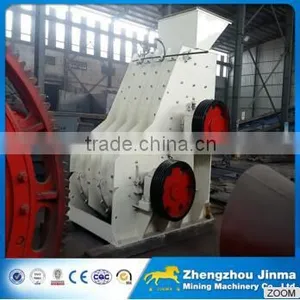

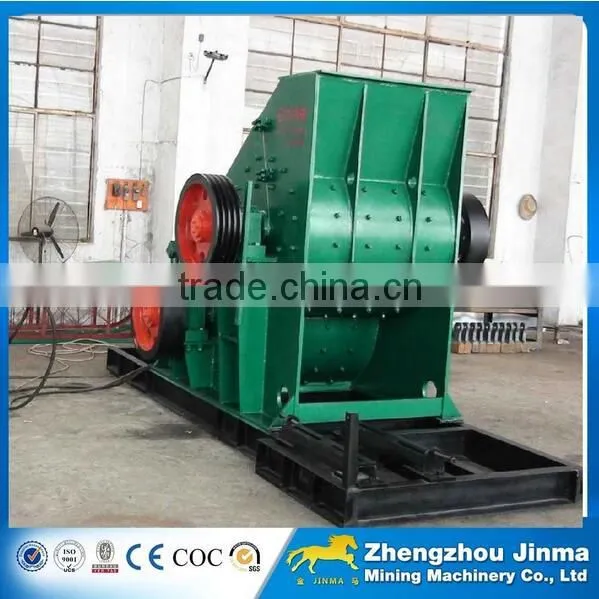

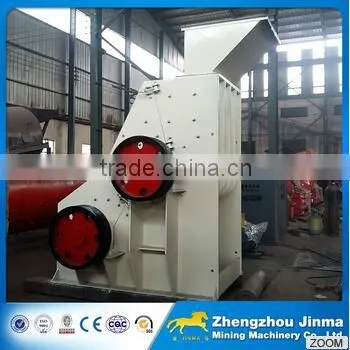

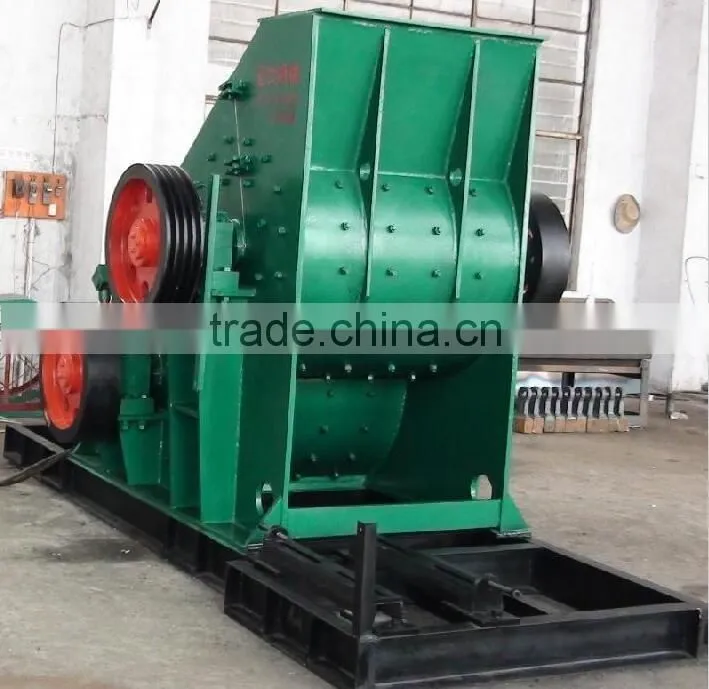

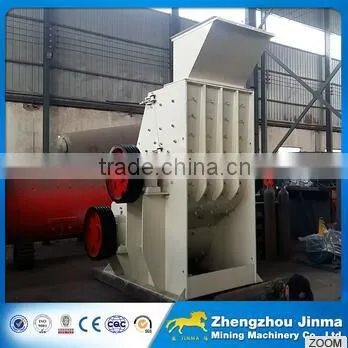

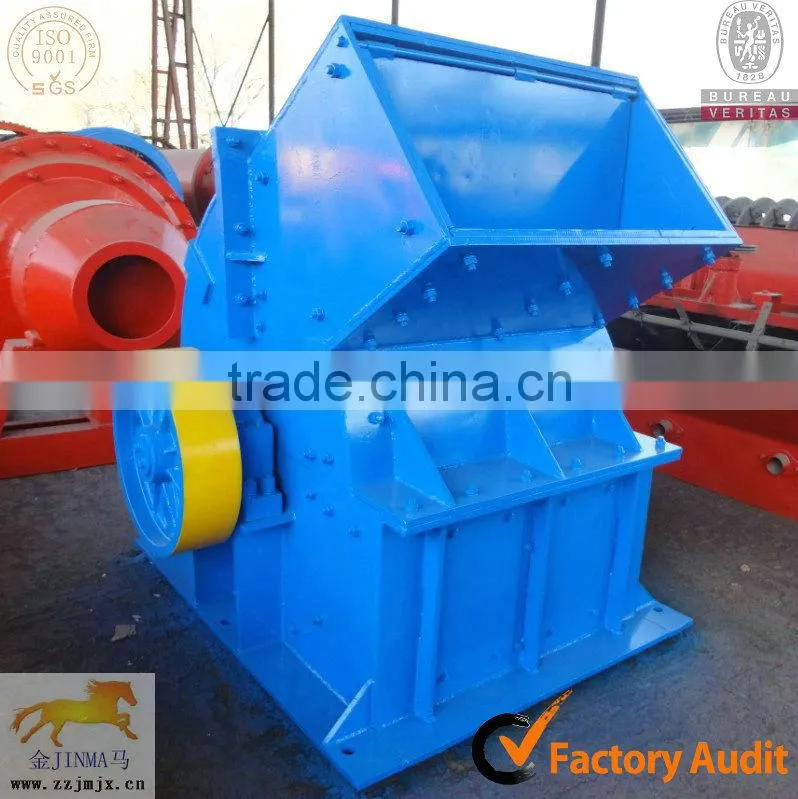

the double rotor hammer crusher produced by Jinma
3.double rotor hammer crusher work principle:
This double rotor hammer crusher is mainly component of casing, rotor, hammers and bars. The case is divided into two parts: up and down, which is connected by welding the cut steel; other parts are connected by screws. The one inside of case is high manganese steel lining board, which is easy to change when wore out. There are several hammers in the spindle, which make up of rotor together with turntable and wear hammer shaft. It works through motor and V-belt to drive spindle and rotor rotating, so that centrifugal force producing by the hammer rotating spread out. Then when the big material was put into crushing chamber, it was crush by the high speed hammer. Afer those process, the standard material was screen out by down bar and non-standard one was left on the crushing chamber and crush again. In order to avoid clogging, humidity of crushed material should below 10%-15%.

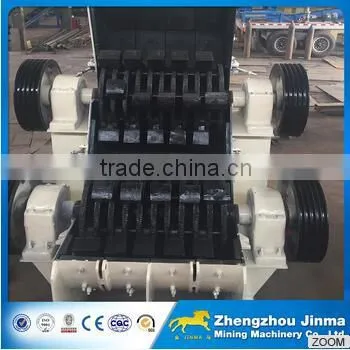

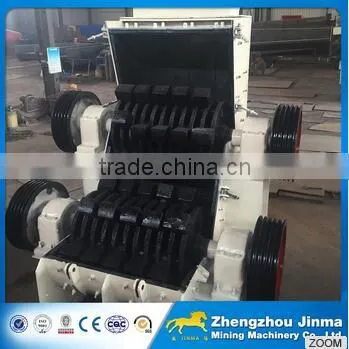

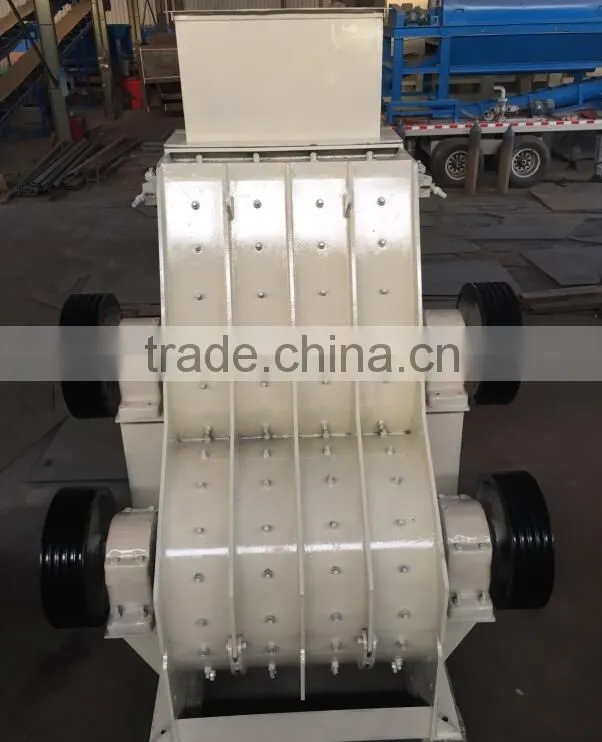

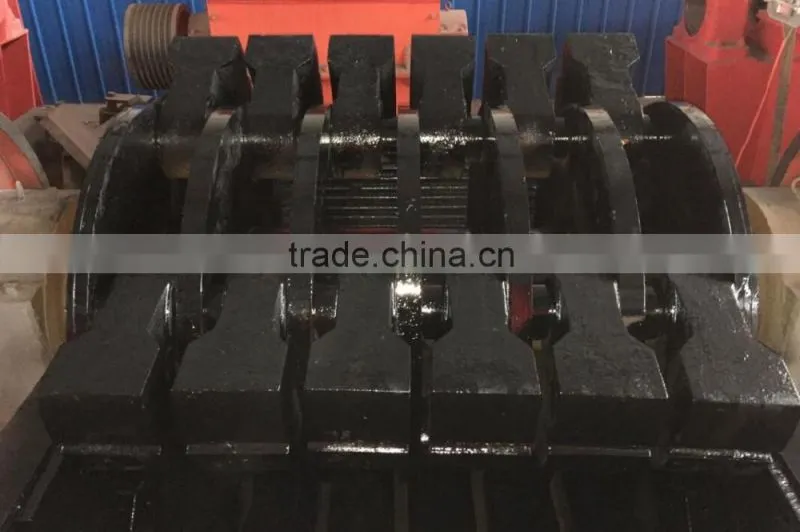

the details of the double rotor hammer crusher
4.Technical parameter of double rotor hammer crusher
Model |
SPCΦ600×600 |
SPCΦ800×600 |
SPCΦ1000×800 |
SPCΦ1200×1000 |
SPCΦ1400×1200 |
SPCΦ1600×1400 |
Feeding size(mm) |
≤100 |
≤120 |
≤160 |
≤200 |
≤300 |
≤400 |
Discharge size(mm) |
≤3(adjustable) |
≤3(adjustable) |
≤3(adjustable) |
≤3(adjustable) |
≤3(adjustable) |
≤3(adjustable) |
Capacity(t/h) |
20-30 |
35-55 |
60-90 |
80-120 |
100-140 |
120-180 |
|
Power (KW) |
22KW+22KW |
45KW+55KW |
55KW+75KW |
90KW+110KW |
132KW+160KW |
160KW+200KW |
|
Dimension (L*W*H) (mm) |
2300×6500×1680 |
2500×870×1700 |
3500×8702×1800 |
3800×1800×2400 |
4400×2300×2600 |
4400×2300×2600 |

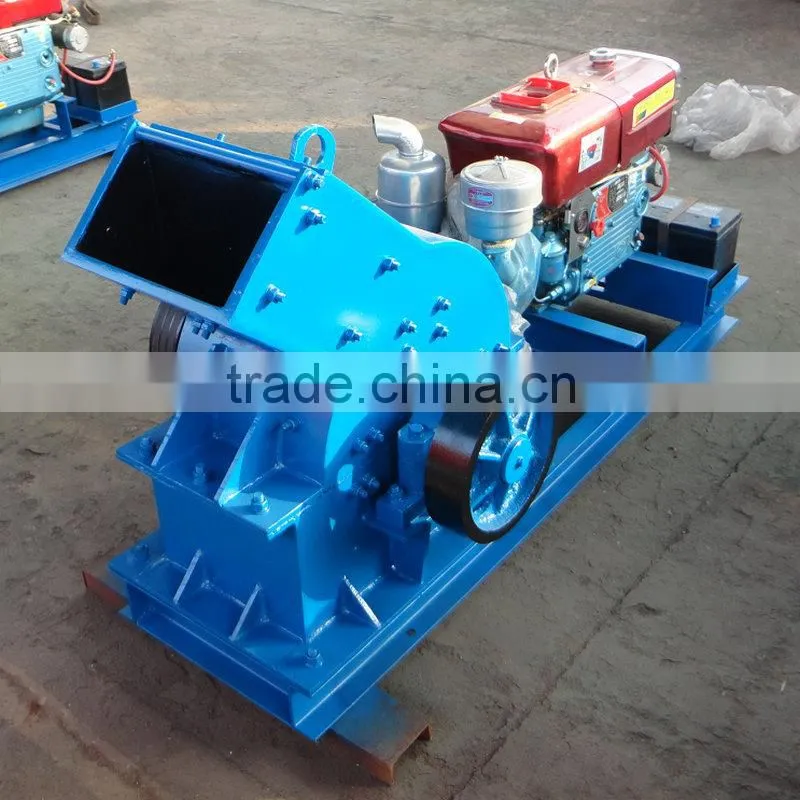

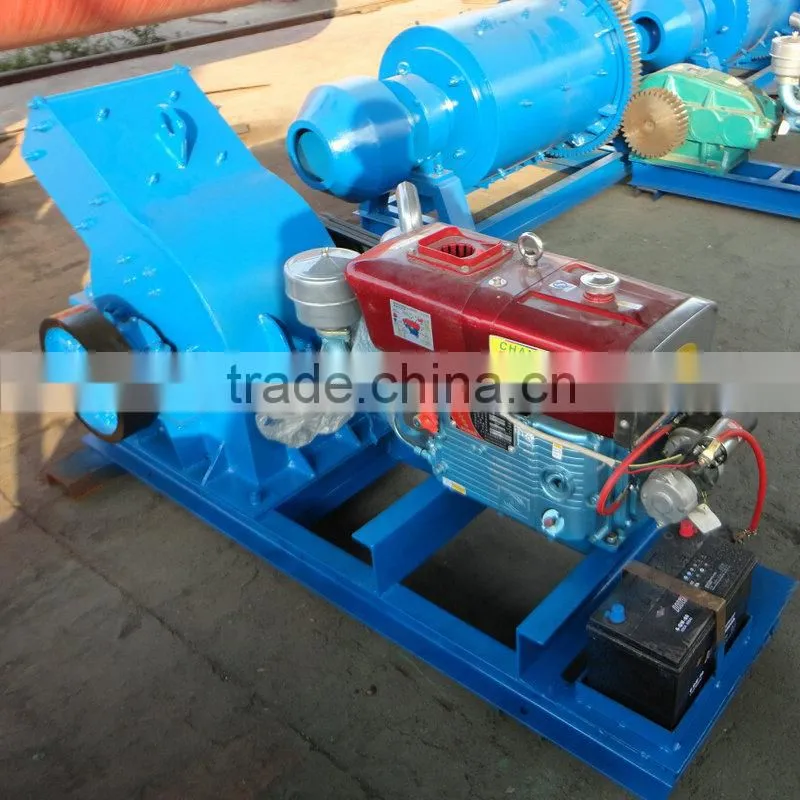

the hammer crusher and the diesel engine hammer crusher
Why choose us?
Our main products jaw crusher, hammer crusher, PCZ heavy hammer crusher, DPC fine crusher, the PXJ third create sand machine, PCH ring hammer crusher, the PC hammer crusher and so on more than 30 varieties of broken machinery.
1) 38 years year of production experience
2) Processional Research and Development team
3) Strict quality control
4) We provide competitive prices, reliable quality products and swift delivery
5)The products are exported to Chile, Peru, Vietnam, Indonesia, Malaysia, India, the Philippines, Thailand, Laos, Russia, Turkey, Iran, north Korea, Kazakhstan,Azerbaijan, Latvia and so on ,more than 30 countries and regions.
the certificate of our factory
If you want to know about our products in details, Welcome to contact me at any time.
