Quarry Mining Machine Rubber Belt Conveyor For Sale
1.Description of Belt Conveyor:
The belt conveyor consists of standard parts. It is advanced and simple in structure, easy to maintain. Belt conveyor is widely used in mining, metallurgical and coal industry to transfer sandy or lump materials, or packaged materials. We have both movement type and fixed type.
According to different transferring equipment, the transmission system can be one independently or multi conveyors or combined with other transmission equipments. The belt conveyor can be installed horizontally or a slope to meet the needs of different transmission lines.

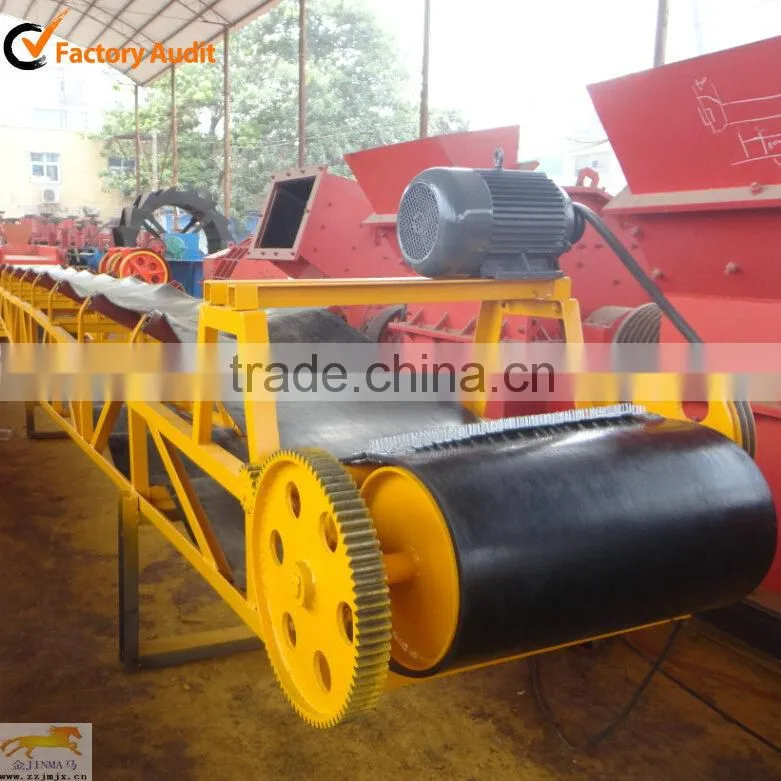

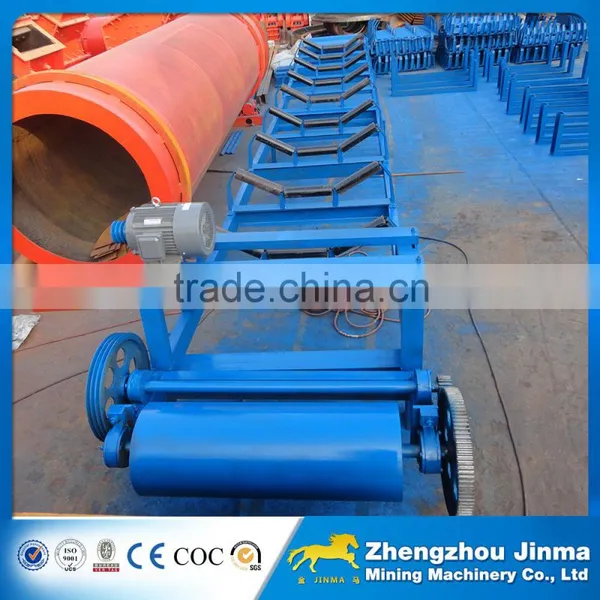

the conveyor produced by our factory
2. Features of Belt Conveyor:
1>Big conveying capacity, simple structure, convenient repair and standard parts.
2>Widely used in the industries of mine, metallurgy and coal to convey loose materials and finished products.
3>According to different technique requirements, the belt conveyor can convey material singly or be formed conveying system with other conveying equipments to meet different requirements of working line.
4>The working temperature is from -200C to +400C and the temperature of conveying material is under 500C.

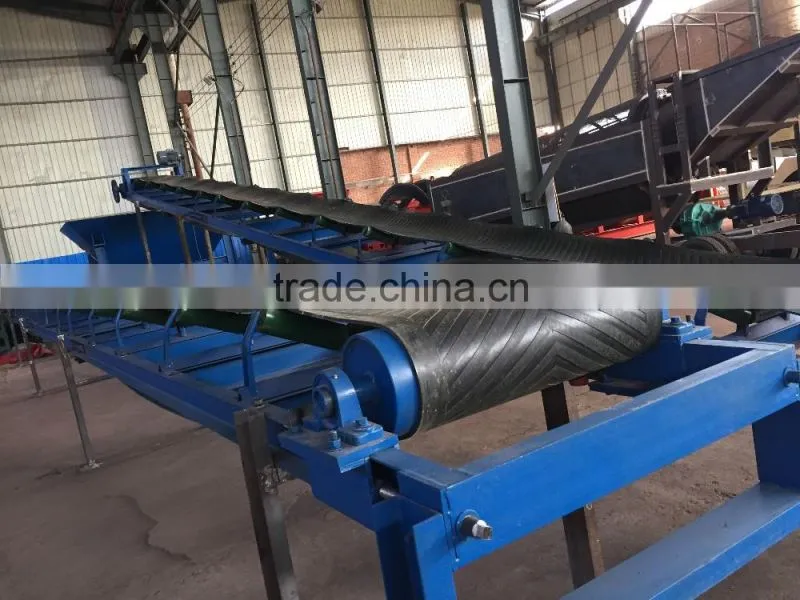

belt has kinds of materials

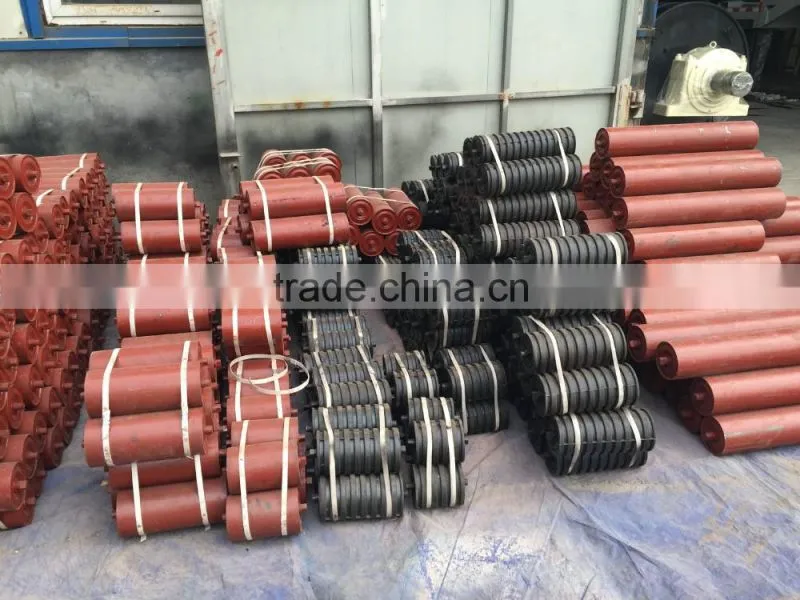

roller, standard parts
3. The Conveying Quantity is worked out by the following conditions:
1>Material density is between 1.0 ton/cubic meter-1.6ton/cubic meter; conveyor obliquity is less than 18° and the material stockpile angle is 30°.
2>Density of material is less than 2.5t/m³.
3>The conveying length isn’t restricted to the form; different length can be manufactured according to customers' demands.

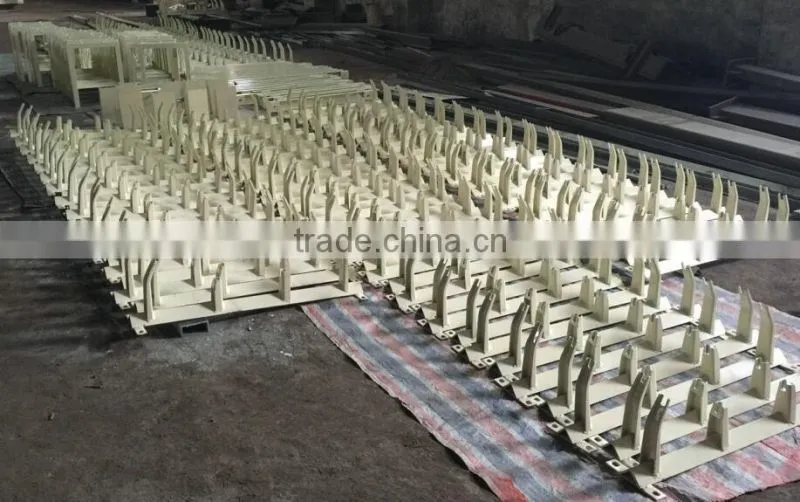

Belt Conveyor Parts: belt frame
Driving rollers and returning rollers
4. Specifications of TD75 Series Belt Conveyor:
|
belt width (mm) |
Transmission length(m) Power(kw) |
Transmission speed (m/s) |
Capacity (t/h) |
||
500 |
≤12 3 |
20-30 4-5.5 |
20-30 5.5-7.5 |
1.3-1.6 |
78-191 |
650 |
≤12 4 |
12-20 5.5 |
20-30 7.5-11 |
1.3-1.6 |
131-323 |
800 |
≤6 4 |
6-15 5.5 |
15-30 7.5-15 |
1.3-1.6 |
278-546 |
1000 |
≤10 5.5 |
10-20 7.5-11 |
20-40 11-12 |
1.3-2.0 |
435-853 |
1200 |
≤10 7.5 |
10-20 11 |
20-40 15-30 |
1.3-2.0 |
655-1284 |
1400 |
≤10 7.5-11 |
10-20 11-18.5 |
20-40 18.5-37 |
1.3-2.0 |
800-1950 |
1600 |
≤10 11 |
10-20 11-22 |
20-40 18.5-45 |
1.3-2.0 |
1200-2600 |
1800 |
≤10 15 |
10-20 15-30 |
20-40 22-55 |
1.3-3.15 |
1500-3500 |
2000 |
≤10 18.5 |
10-20 18.5-37 |
20-40 30-75 |
1.3-3.15 |
1800-4000 |
belt tensioner device

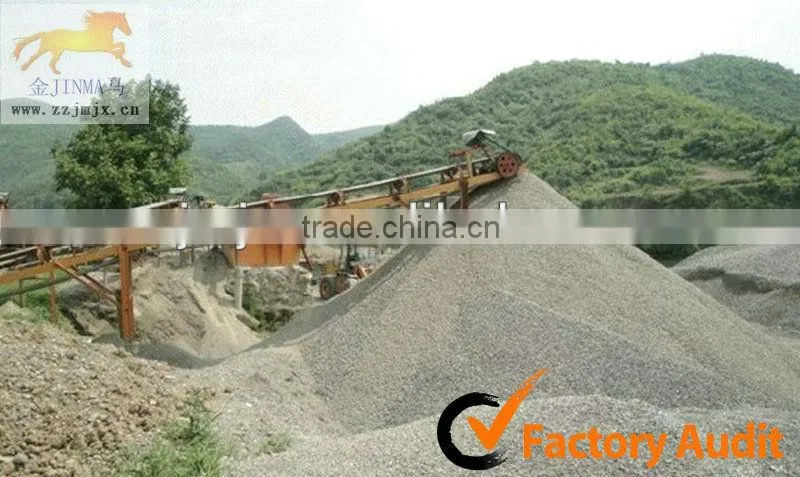

Raw Material Conveyor use for stone crushing plant

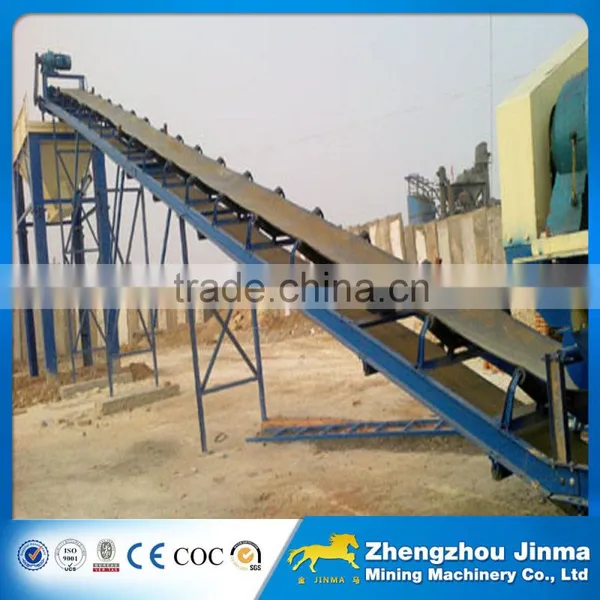

Raw Material Conveyor use for stone washing machine
NOTE: We also have large angle conveyor(chart),If you have any interests,please let me know.
1.Before sales service:
1>We will recommend suitable model of machine according to your demand.
2>We are original equipment manufacturer, if you have some doubt about our products, we can give you the timely answer.
2.Sales service:
1>We will make the products according your requirement, such as the model , color, motor and so on.
2>Packing the equipment in standard container or as your required.
3>Provide solutions for any possible problems.
3. After sales service:
1>Installation and adjustment: we provide installation services, technical engineerswill be provided by supplier for buyer to assist the work such as welding connection of shell body.
2>Technical support is provided from the beginning to the end.
3>Spare parts are serviced for sale in the whole year.
the overseas friends visit our factory
Our advantages
1)our main productsjaw crusher, hammer crusher, PCZ heavy hammer crusher, DPC fine
crusher, the PXJ third create sand machine, PCH ring hammer crusher, the PC hammer crusher
and so on more than 30 varieties of broken machinery.
2)38 years year of production experience
3)Processional Research and Development team
4)Strict quality control
5) We provide competitive prices, reliable quality products and swift delivery
6)the products are exported to Chile, Peru, Vietnam, Indonesia, Malaysia, India, the Philippines,Thailand, Laos, Russia, Turkey, Iran, north Korea, kazakhstan, azerbaijan, Latvia and so on ,more than 30 countries and regions.
the certificate
1.How long is the delivery time of your equipment?
The delivery time is within 30 working days. But when the project is very big and the customers have special requirement on the equipment, the delivery could be extended.
2.How long is the equipment warranty period?
Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.
3.What’s the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide installation service, workers training service, etc.
4.Can you provide wearing parts?
We have two casting factories that specialize in produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.

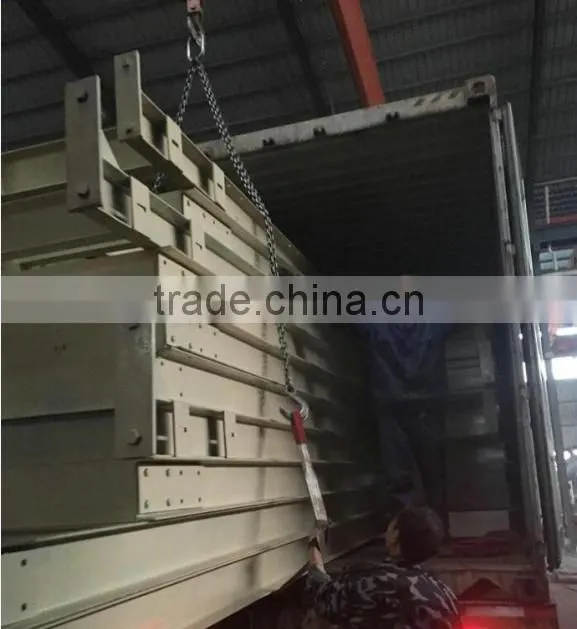

our workers are carefully check before delivery
If you want to know about our products in details, Welcome to contact me at any time.
| Company | Zhengzhou Jinma Mining Machinery Co., Ltd |
| Name | Cherry Fan |
| Tel | +86-371-67511065 |
| Fax | +86-371-67512579 |
| Mobile | +86-13503866295 |
| Skype | cherry74120 |
