Home > Industrial Equipment & Components > Engine & Part > Engine > 8HP Diesel Engine Air Cooled KA186F Best Price and Service CE ISO BV Approved

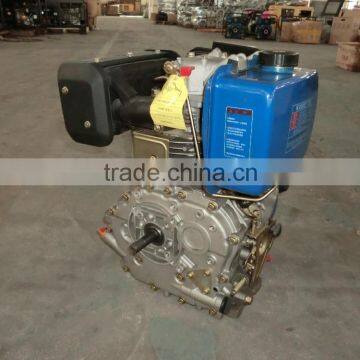

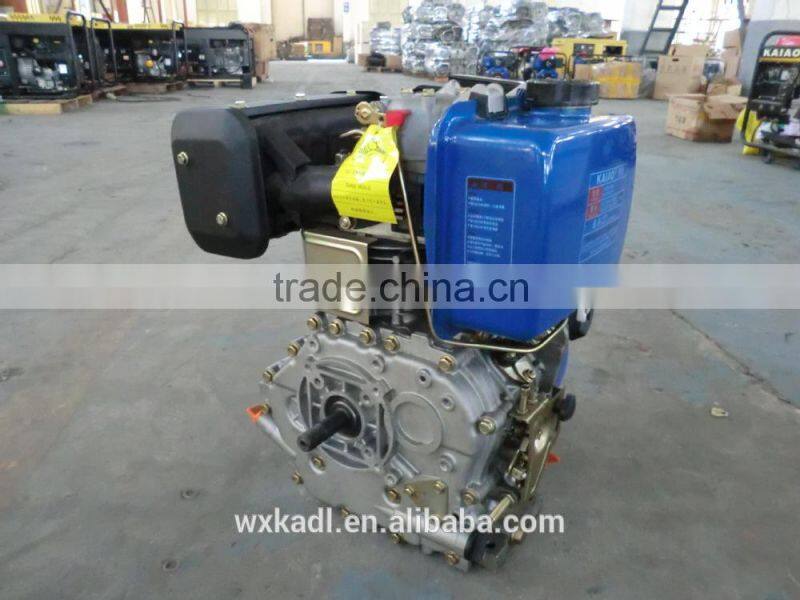

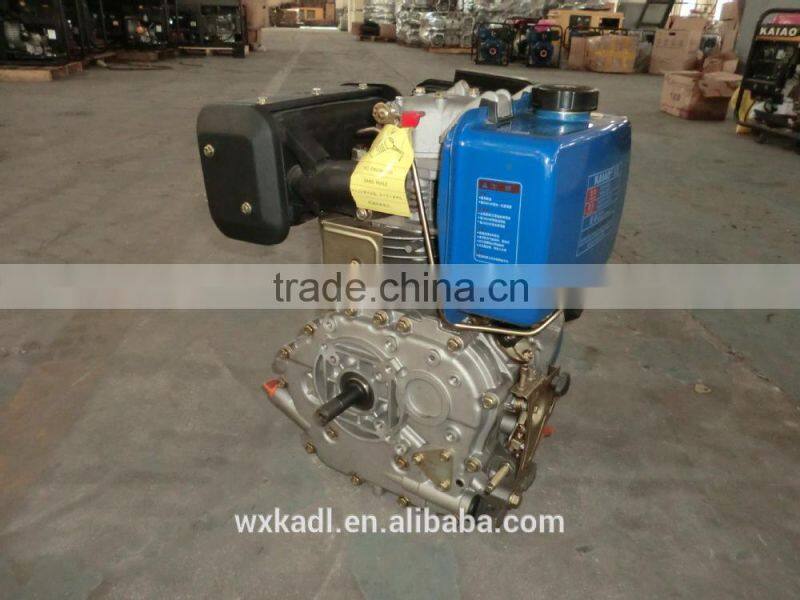

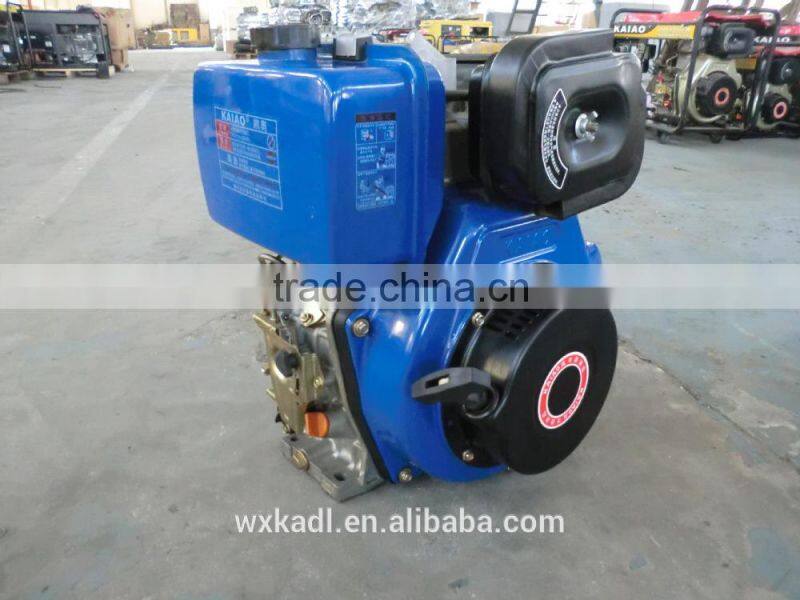

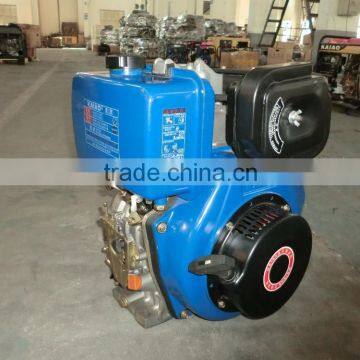

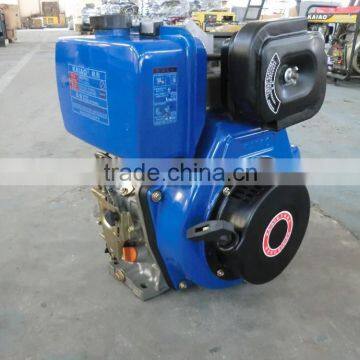

8HP Diesel Engine Air Cooled KA186F Best Price and Service CE ISO BV Approved
US$ 200 - 235
MOQ: 10 Sets
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, home use
Fuel:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diesel Engine /8hp Small Diesel EngineNegotiableMOQ: 5 Pieces -
8 hp Single Cylinder Diesel EnginesNegotiableMOQ: 10 Pieces
-
Easy Start Diesel Engine/7.6HP Engine DieselUS$ 200 - 250MOQ: 5 Pieces
-
7.6-8.4HP Diesel Engine/motorsNegotiableMOQ: 5 Pieces
-
Diesel Engine -KA170FNegotiableMOQ: 10 Sets
Condition
New
Usage
Other, home use
Fuel
Diesel
Stroke
4 Stroke
Cylinder
Single Cylinder
Cold Style
Other, Air-cooled
Start
Other, electrical starting or hand starting
Place of Origin
Jiangsu, China
Brand Name
kaiao or OEM
Model Number
KA186F
Dimension(L*W*H)
520*450*570mm
Weight
48kg
Certification
CE&ISO
Warranty
ONE YEAR
After-sales Service Provided
Engineers available to service machinery overseas
| WUXI KAIAO POWER MACHINERY CO., LTD | |
| Model | KA186F |
| Rated output(HP/rpm) | 7.9HP/3000, 8.6HP/3600 |
| Rated output(KW/rpm) | 5.7KW/3000, 6.3KW/3600 |
| Engine type | Single-cylinder, vertical, four-stroke, air-cooled, direct injection |
| Cylinder Diameter*stroke(mm) | 86X70 |
| Piston displacement (L) | 0.406 |
| Compression ratio | 19 |
| Max. no-load speed(r/min) | 108% of Rated rotary speed |
| Min. no-load speed(r/min) | 1300 |
| Lubrication system | Pressure splash complex Type |
| Engine starting system | Recoil starter or Electric starter |
| Output terminal rotation | AnticlockWise |
| Fuel oil model | Summer:0#, Winter:-10# |
| Fuel tank capacity (L) | 5.5 |
| Fuel consumption rate(g/kW.h) | 275.1/3000 281.5/3600 |
| Oil consumption rate(g/kW.h) | 4.08 |
| Oil grade | CD grade or SAE10W-30,15W-40 |
| Valve clearance(cold state) mm | 0.10-0.15 |
| Lube oil capacity (L) | 1.65 |
| Starting motor (V,kW) | 12V 0.8kW |
| Charging generator(V,A) | 12V 3A |
| Battery capacity(V,AH) | Above 12V-36AH |
| Dimension (L*W*H)(mm) | 522*522*578 |
| Net weight(kg) | 47 |
