Specifications
Slitter Recoiler with Overarm SeparatorExpand or shrink hydraulically
Multi-speed gearbox
Loading capacity: 5-35 tons

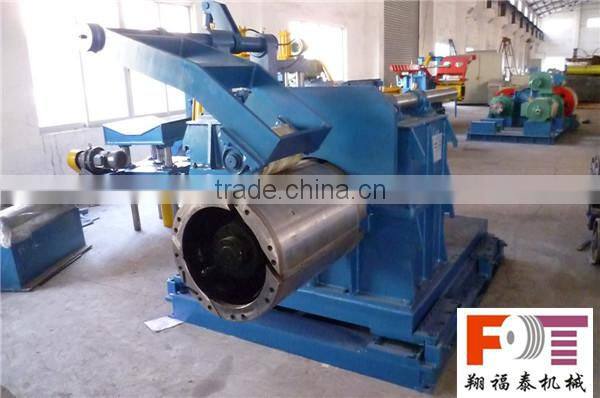

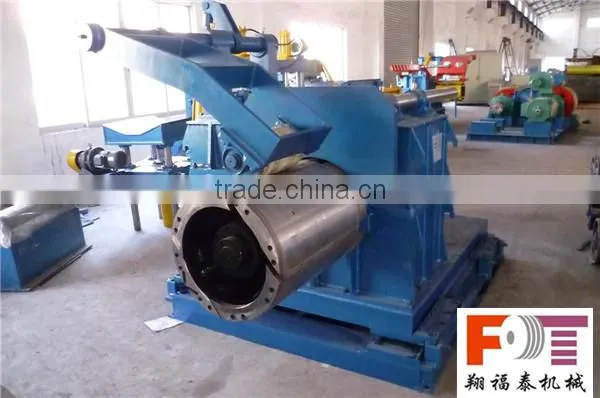

Slitter Recoiler with Overarm Separator

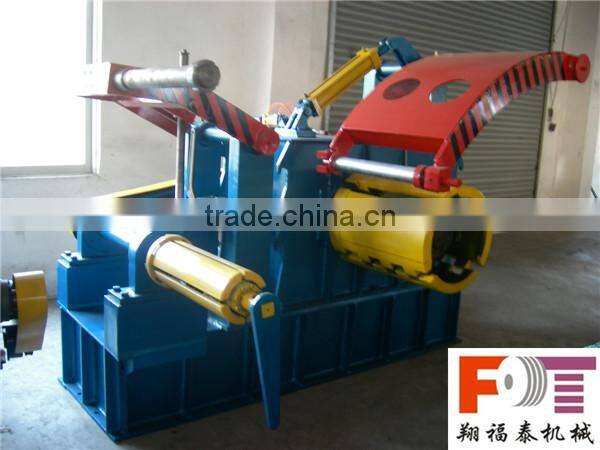

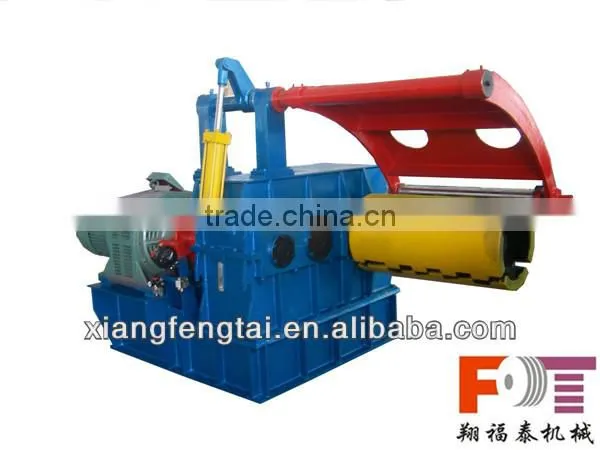

Recoiler
Used for rewinding the metal strips into coils at the end of a slitting line
Coil I.D.: 508mm 610mm 760mm
Width: 450mm, 550mm, 650mm,750mm, 850mm, 1100mm, 1350mm, 1650mm, 1850mm, 2000mm
Loading capacity: 5-35 tons
Single mandrel type or double stub type
Standard 4-leaves type drum or seamless type for delicate material
Expand or shrink hydraulically or manually
AC & DC drives
Air actuated or hydraulic brake
Multi-speed gearbox
Hydraulic push off
Hold down arm
Over arm separator
Speed: 0-150m/min
Take for example a hydraulic recoiler applied in a 1650mm type slitting line.
Main technical parameter:
Max. drum O.D.(Coil I.D.): 508mm
Expanding range of drum: 480~508mm
Max. width of useful drum surface : 1700mm
Hydraulic oil cylinder: HSG-200-FA
Motor: DC45KW
Paint: Blue or customized
Composition:
Reduction gearbox, collapsible drum expanding or shrinking hydraulically, over arm separator, main drive, hold down device, base.
Structure:
Single cantilever drum type, expand or shrink hydraulically, The reduction gearbox is a horizontal type with three-phrase speed deceleration. Lifting and descending of hold down device is driven by hydraulic cylinder.
Material: Reduction gearbox main body is welded together with steel plates, processed qualitatively. Arc-shaped plates of the drum are made of 45# steel plates with aging, hardening and tempering treatment to achieve hardness of HB240~267. Pyramid ZG45 goes through aging, hardening and tempering treatment to be HB220~248. The shaft is made of 40Cr steel with forging, deep hole drilling, aging, hardening and tempering treatment to be HB240~270. Low-speed gear is made using 40Cr while high-speed gear 35CrMo,with hardening and tempering treatment to achieve HB247~278 and quenching to attain HRC38~45.
