Cold roll slitter rewinder machine

Specifications

Cold roll slitter rewinder machine
Expand or shrink hydraulically
Multi-speed gearbox
Loading capacity: 5-35 tons

Cold roll slitter rewinder machine

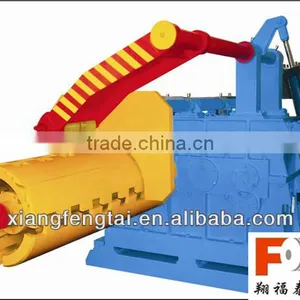

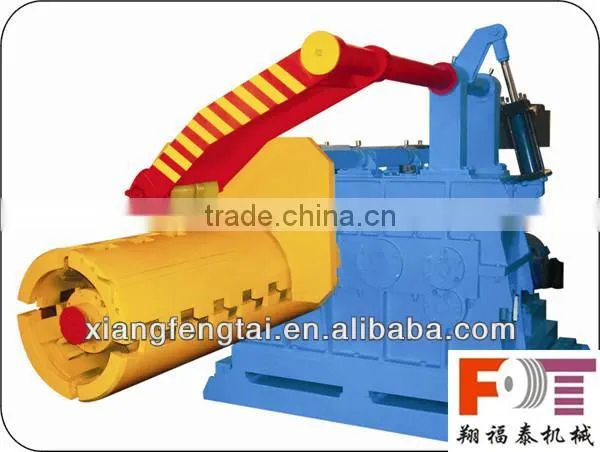

Recoiler

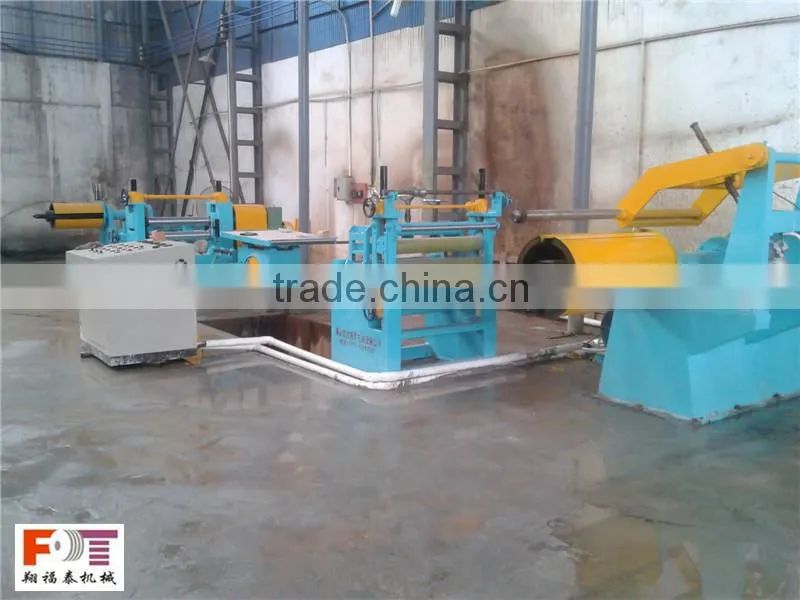

Used for rewinding the metal strips into coils at the end of a slitting line

Coil I.D.: 508mm 610mm 760mm

Width: 450mm, 550mm, 650mm,750mm, 850mm, 1100mm, 1350mm, 1650mm, 1850mm, 2000mm

Loading capacity: 5-35 tons

Single mandrel type or double stub type

Standard 4-leaves type drum or seamless type for delicate material

Expand or shrink hydraulically or manually

AC & DC drives

Air actuated or hydraulic brake

Multi-speed gearbox

Hydraulic push off

Hold down arm

Over arm separator

Speed: 0-150m/min



Take for example a hydraulic recoiler applied in a 1650mm type slitting line.

Main technical parameter:

Max. drum O.D.(Coil I.D.): 508mm

Expanding range of drum: 480~508mm

Max. width of useful drum surface : 1700mm

Hydraulic oil cylinder: HSG-200-FA

Motor: DC45KW

Paint: Blue or customized



Composition:

Reduction gearbox, collapsible drum expanding or shrinking hydraulically, over arm separator, main drive, hold down device, base.

Structure:

Single cantilever drum type, expand or shrink hydraulically, The reduction gearbox is a horizontal type with three-phrase speed deceleration. Lifting and descending of hold down device is driven by hydraulic cylinder.

Material: Reduction gearbox main body is welded together with steel plates, processed qualitatively. Arc-shaped plates of the drum are made of 45# steel plates with aging, hardening and tempering treatment to achieve hardness of HB240~267. Pyramid ZG45 goes through aging, hardening and tempering treatment to be HB220~248. The shaft is made of 40Cr steel with forging, deep hole drilling, aging, hardening and tempering treatment to be HB240~270. Low-speed gear is made using 40Cr while high-speed gear 35CrMo,with hardening and tempering treatment to achieve HB247~278 and quenching to attain HRC38~45.
