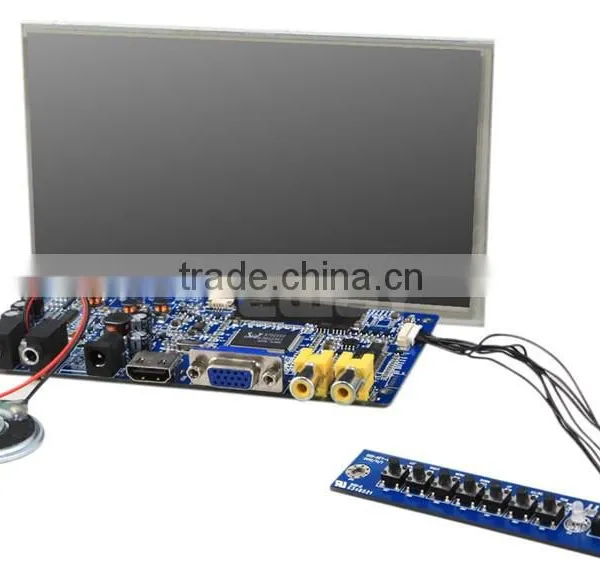

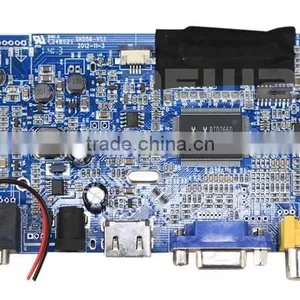

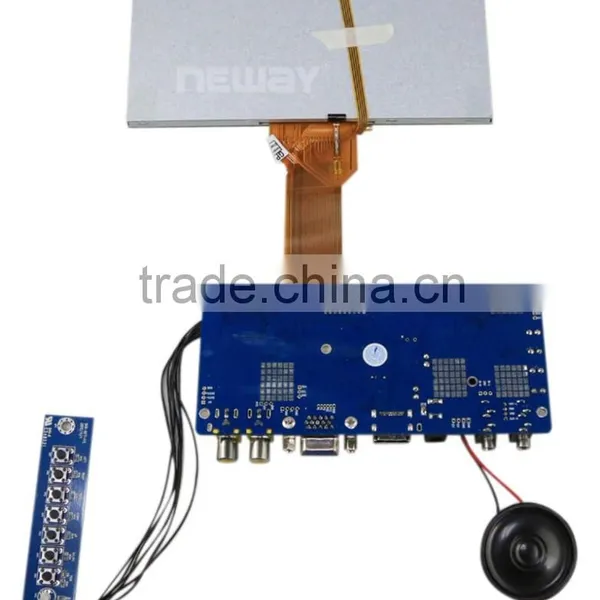

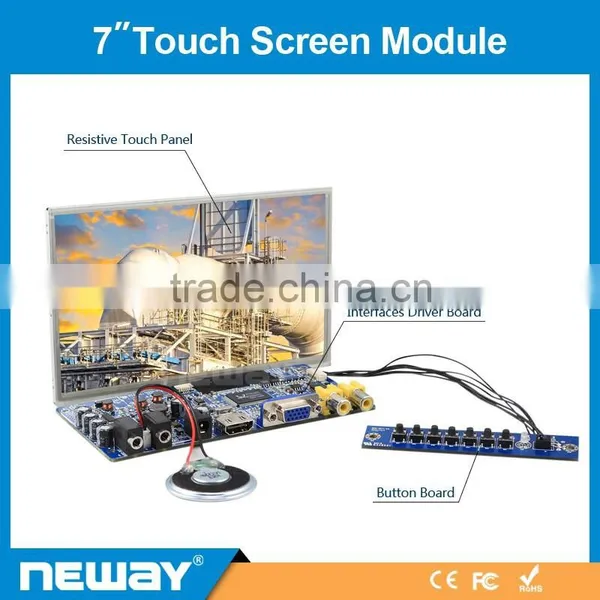

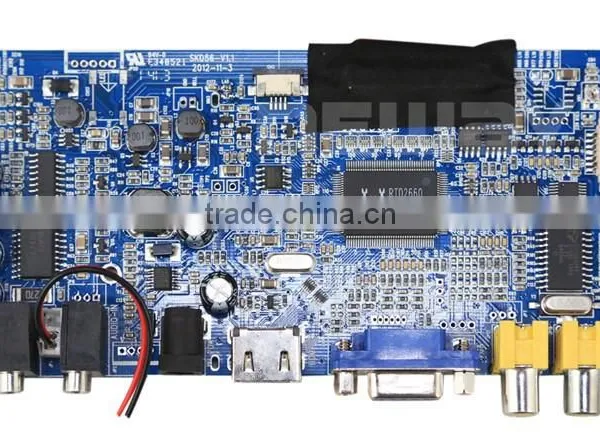

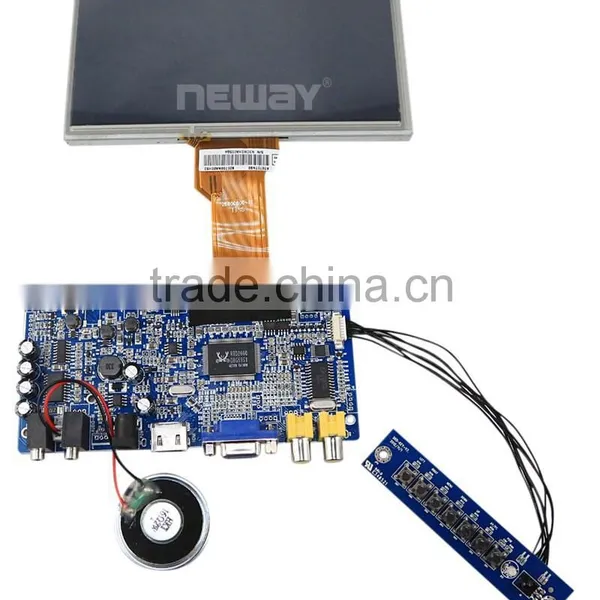

SKD700NT: Banana Pi Display 7 Inch LCD with 800x480 Resolution and Resistive Touch
* 4 wire resistive Touchscreen (USB or RS232 interface optional)
* VGA input: 15 pin D-SUB analog RGB interface.
* Automatic display adjustment
* High-Brightness LED Backlight.
* 4 adjustable backlight levels for daytime or night-time use
* PAL/NTSC/SECAM
* 2 RCA video inputs, Audio Input
* PAL/NTSC color system
* Speaker built-in
* Full-function IR remote control
* On Screen Display menu control (Multi-language)
* Last power setting memory for choice available
Banana Pi Display 7 Inch LCD with 800x480 Resolution and Resistive Touch
Banana Pi Display 7 Inch LCD with 800x480 Resolution and Resistive Touch
| Size | 7 inch |
| Model | SKD700NT |
| Touch Panel | 4-wire resistive |
| resolution | 800 X (RGB) X 480 |
| Active area | 152.4(W) X 91.44(H) mm |
| Dot pitch | 0.0642(W) X 0.1790(H) mm |
| Color | RGB |
| arrangement | |
| contrast | 500:1 |
| respond time | 25ms |
| Brightness | 250 cd/m2 |
| Aspect | 15:9. Widescreen |
| Backlight | LED |
| Viewing angle | 70°/70°(L/R) 50°/70°U/D) |
| Power | DC9-15V |
| Panel power consumption | 0.3W |
| Work temperature | -20°C~60°C |
| Storage | -30°C~70°C |
| temperature | |
| Weight | 380g |
| dimension(mm) | 164.9X100X5.7mm |
| Signal iput | VGA.Video.Audio.HDMI |
Banana Pi Display 7 Inch LCD with 800x480 Resolution and Resistive Touch
| Remote Control | 1 Piece |
| Driver CD (For Touch) | 1 Piece |
| USB Touch cable (For Touch) | 1 Piece |
| Touch Pen | 1 Piece |
| Power adpater | 1 Piece |
| VGA cable | 1 Piece |
Banana Pi Display 7 Inch LCD with 800x480 Resolution and Resistive Touch
Banana Pi Display 7 Inch LCD with 800x480 Resolution and Resistive Touch
