Help CenterStone CNC Router LX1325
Related Products
Specifications
CNC woodworking Router LX13251)high loading
2)high software compatibility
3)adopt NC studio control system
4)safety use
CNC Router LX1325 stone
Specifications:
Table size: |
1300mm*2500mm |
Resolution ration: |
0.025mm |
Spindle power: |
4.5KW |
Working voltage: |
AC380V or 220V /50Hz or 60HZ |
Working precision: |
About 0.04mm |
Location precision: |
About 0.05mm |
Table structure |
aluminum |
X,Y,Z structure |
Ball screw |
The speed of open working:: |
60m/min |
Spindle speed: |
24000 revolution/min |
Max speed of working: |
25000mm/min |
Feeding height |
120- 200mm(option) |
The diameter of the knife |
Φ6,Φ12.7 |
The engraving instruction |
HPGL,G code |
Knife pressure |
0.7Kpa |
Cleaning power |
2.2KW |
Absorption power |
2KW |
Gross power |
5KW |
Power consumption: |
2.8KV |
Applicable areas:
Applicable for advertisement, double face board and scutcheon, department brand, chest brand and the architecture board, ABS brand, the engraving and cutting of acrylic and the engraving of many jade article.
Characteristics:
Fast speed, high efficiency, the idle speed can reach 32m/min.
In the engraving of the wave board the speed can reach over 20m/min.
Big bearing redundancy, long life. The equipment adopts square and strait line contrail ,the contact is face to face. To the high CNC data control equipment, the lifetime of the strait line is 2200 times the common ones.
The power of the main axis is big, the steel is of high quality. The main axis is suitable for the engraving on the copper, aluminum, iron. It is most suitable for the engraving of wood.
Double engine drive, sqecial double gear running, the strength is big, the running is stable, guarantee it to run without distortion and totter.
All through offline running function: At the working process, all the system can run by itself and need no computer.

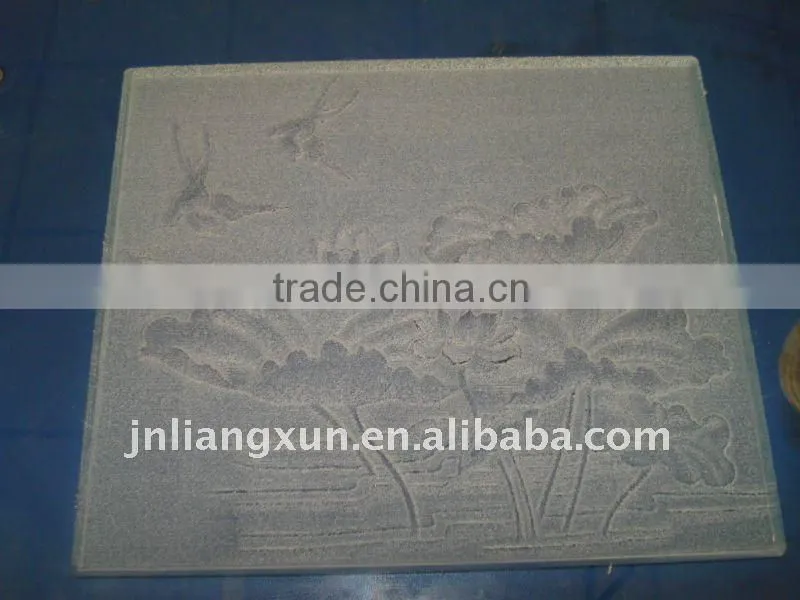

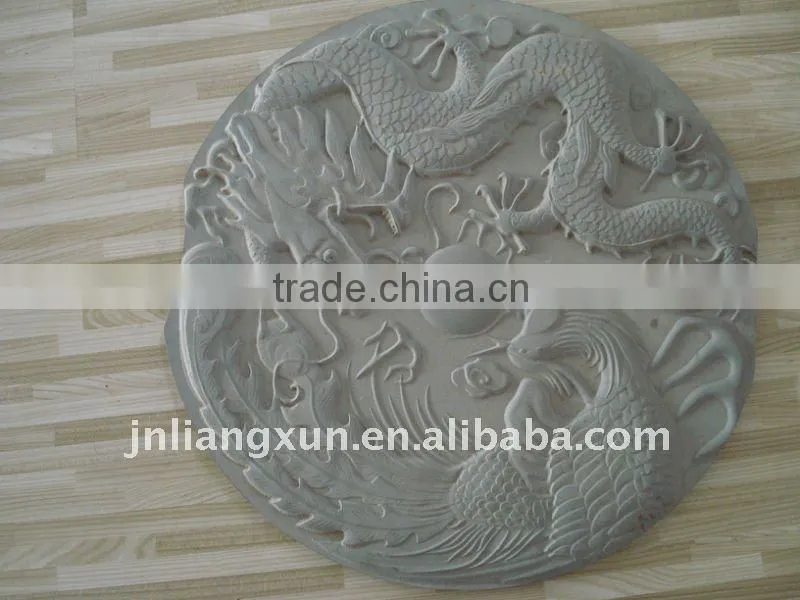

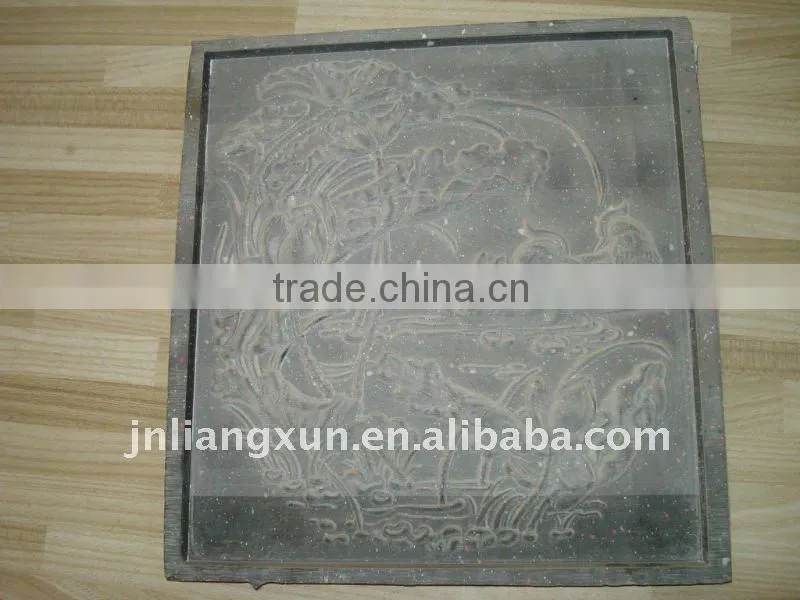

Samples:
