Help CenterWoodworking CNC Router LX1325ATC
Related Products
Specifications
woodworking CNC router LX13251)large adsorption power
2)high software compatibility
3)dust catcher
4)auto tools change
Woodworking CNC router LX1325
The model |
LX1325 |
XY working area |
1300*2500 mm(4.3feet*8.3feet) |
Z working area |
200mm or depend on customer |
Table size |
1680*3100mm |
Whole machine size: |
3250mm*2000mm*1.8mm |
Max. speed |
40m/min |
Max. working speed |
25m/min |
Working precision |
0.04mm |
Repositioning accuracy |
0.025mm |
Holding mode |
By suction with 6 zones separately control system |
Engraving Command |
Gcode*u00* mmg*plt |
Surroundings |
Windows98/2000/xp |
Power(not include the spindle) |
1840w |
power |
AC380/50HZ or 60HZ |
Spindle power |
4.5kw water cooling spindle / Italy HSD air cooling spindle(option) |
Main axle rotating speed |
0-24000rpm/min |
Work mode |
stepper / servo motor(option) |
XYZ Structure |
Steel structure, square orbit, ball screw for z axle, gear-wheel for x axle and y axle |
Engraving software |
Artengraver / Ucancam V8 / type 3 |
Control software |
DSP / Ncstudiao |
Knife pressure |
0.7Kpa |
Gross power |
20KW |
The machine adopts the DUST COLLECTOR SYSTEM ; DUST COVER ; AUTO OILLING SYSTEM | |
Applicable areas:
Wood working :Solid wave board process, door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board,mahjong table,computer table and the assistant process of the household effects
Advertising;Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
Model industry; It can engrave on the steal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.
Other fields: It can engrave many image, embossment,It is widely used in artistic industry.

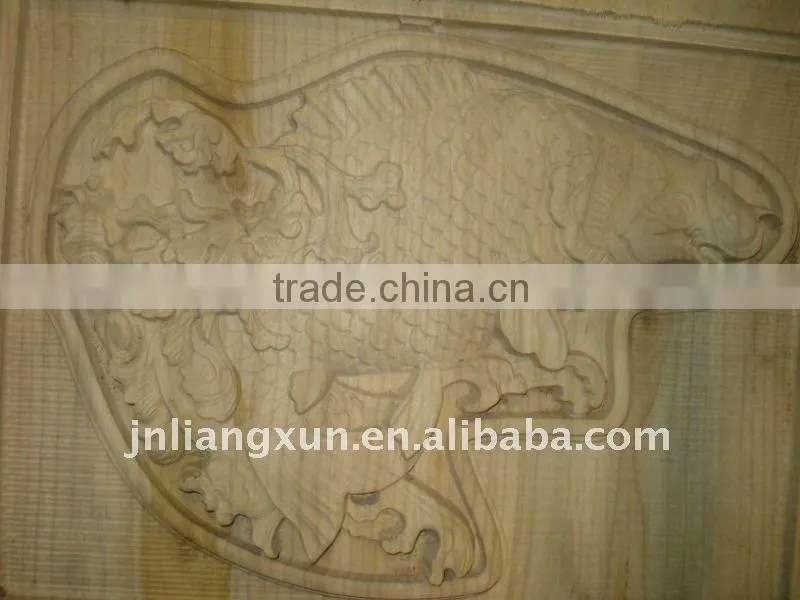

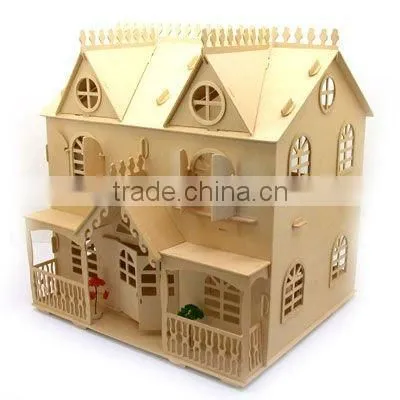

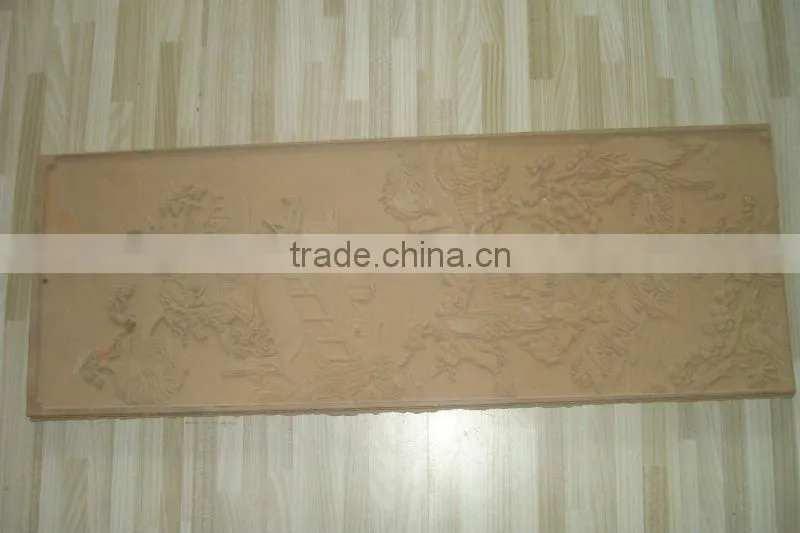

Samples:
