Help CenterWoodworking CNC Router LX1325
Related Products
Specifications
woodworking CNC router LX13251)large adsorption power
2)high software compatibility
3)dust catcher
4)vacuum absorb table

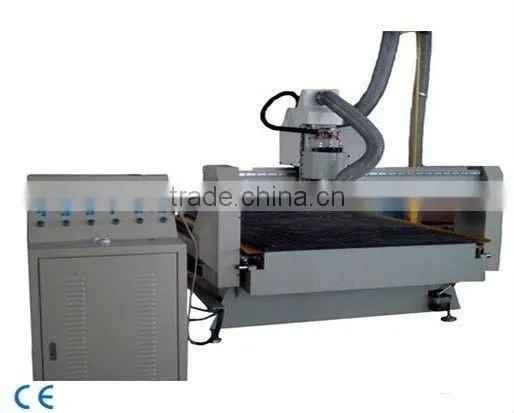

Woodworking CNC router LX1325T
The model |
LX1325 |
XY working area |
1300*2500 mm(4.3feet*8.3feet) |
Z working area |
200mm or depend on customer |
Table size |
1680*3100mm |
Whole machine size: |
3250mm*2000mm*1.8mm |
Max. speed |
40m/min |
Max. working speed |
25m/min |
Working precision |
0.04mm |
Repositioning accuracy |
0.025mm |
Holding mode |
By suction with 6 zones separately control system |
Engraving Command |
Gcode*u00* mmg*plt |
Surroundings |
Windows98/2000/xp |
Power(not include the spindle) |
1840w |
power |
AC380/50HZ or 60HZ |
Spindle power |
4.5kw water cooling spindle / Italy HSD air cooling spindle(option) |
Main axle rotating speed |
0-24000rpm/min |
Work mode |
stepper / servo motor(option) |
XYZ Structure |
Steel structure, square orbit, ball screw for z axle, gear-wheel for x axle and y axle |
Engraving software |
Artengraver / Ucancam V8 / type 3 |
Control software |
DSP / Ncstudiao |
Knife pressure |
0.7Kpa |
Gross power |
20KW |
The machine adopts the DUST COLLECTOR SYSTEM ; DUST COVER ; AUTO OILLING SYSTEM | |
Applicable areas:
Wood working :Solid wave board process, door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board,mahjong table,computer table and the assistant process of the household effects
Advertising;Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
Model industry; It can engrave on the steal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.
Other fields: It can engrave many image, embossment,It is widely used in artistic industry.
Characteristics:
1) Imported Italy name brand (HSD) big power air cooled engine, with high precision, long life, stable running and the beginning quality is good, big distance. It can fully exert the high advantage of the machine and has high efficiency.
2) With Taiwan original knife changing structure, it can change the needed knife freely, the special knife board, can compensate the error of the length between the knives. The knife changing time is only 10 seconds. The machine has 8 sets of knives attached and you can order the more knives.
3) The intergraded thick square tube structure lathe bed, scientific jointing, without distortion.
4) Adopts the imported strait line square contrail, double line and 4list block high bearing strength, stable running, high precision, high intention and high quality steel contrail, guarantee the mechanic precision and the abrasive resistance. The life time is 10times the machines with the round contrail. The knife is also with high precision.
5) Adopts the Taiwan high technique control system, has high and stable quality, good maintenance. It can control and complete the multi-face 3D process and can process the 3D engraving and cutting.
6) The compatibility of the software is good, it can compatible the CAD/CAM design software such as type3/Artcam/Castmate and Wentai.
7) The table is the international advanced vacuum absorb table, the material i3 bake lit board, high absorption, can absorb different material of different side, with high density and not easy for the distortion.
8) For the vacuum, you can choose the exported brand no oil vacuum pump, with stable capability, low temperature, low noise, environment protect, long life and easy for the maintenance, fully solve the problem of changing the water in cooled weather.
9) The capacity protect table: avoid the table destroy worked by the false operation or the software false, capacity process over area protect, avoid the mechanic collision in case the design board over the working table.
Samples:
