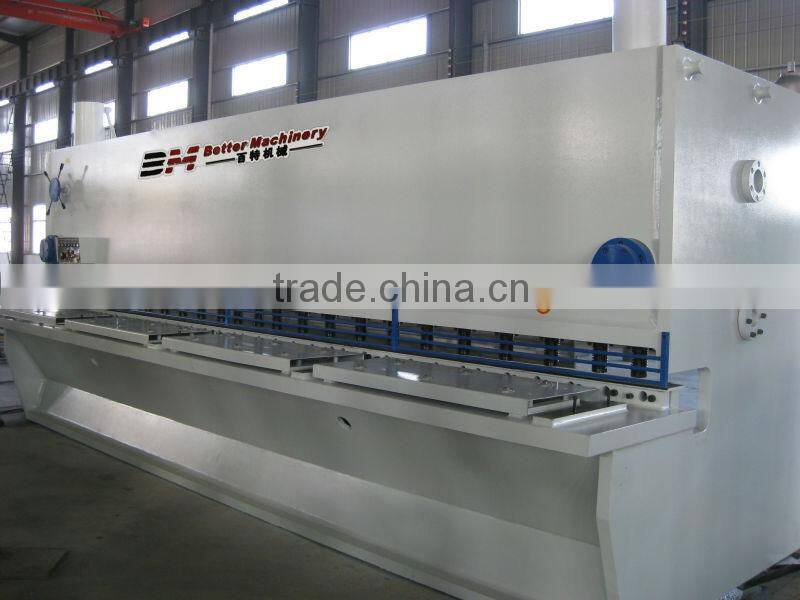

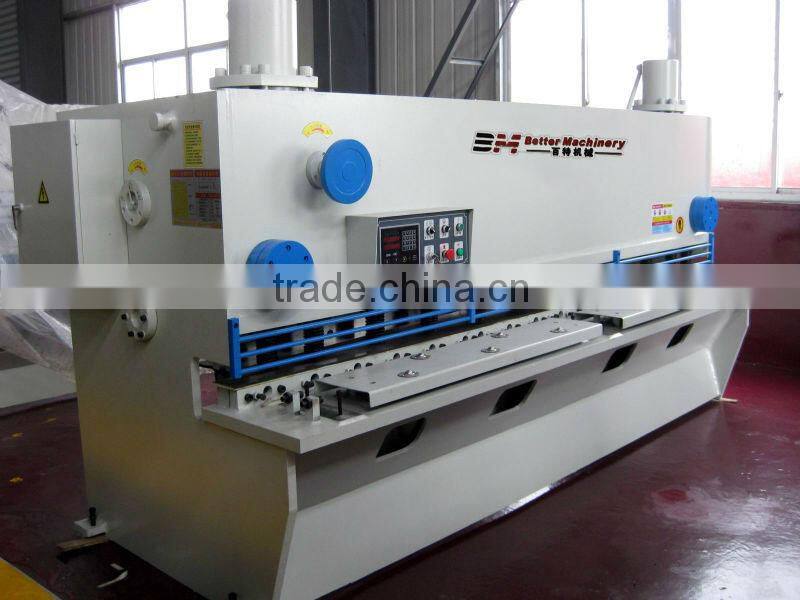

| Wholesales QC11Y CNC control shearing machine |
QC11Y-6*3200 CNC control shearing machine performance:
Rectangular blade with four edges available, the blade lifetime is longer.
With accurate rolling guide,the cutting quality is high.
The cutting angle can be adjusted.
It can reduce the possibility of the material being twisted and distorted
| Optional Available: |
CNC or NC control system.
Front light protection
| QC11Y-6*3200 CNC control shearing machine Specification: |
Model | 6×3200 | |
1 | Max. shearing thickness | 6mm |
2 | Max. shearing width | 3200mm |
3 | Shearing angle | 0.5°~1.5° |
4 | Number of shearing | 14-35n/min |
| 5 | Max. Backgauge distance | 600mm |
6 | Power of main motor | 7.5kw |
7 | Overall dimentions(L×W×H) | 3860×1810×1750mm |
If you have any other requirements for the size, pls do not hesitate to contact us, or you can advise us your ideas or thoughts for the machine, we can kindly design for you and communicate with you for the details.

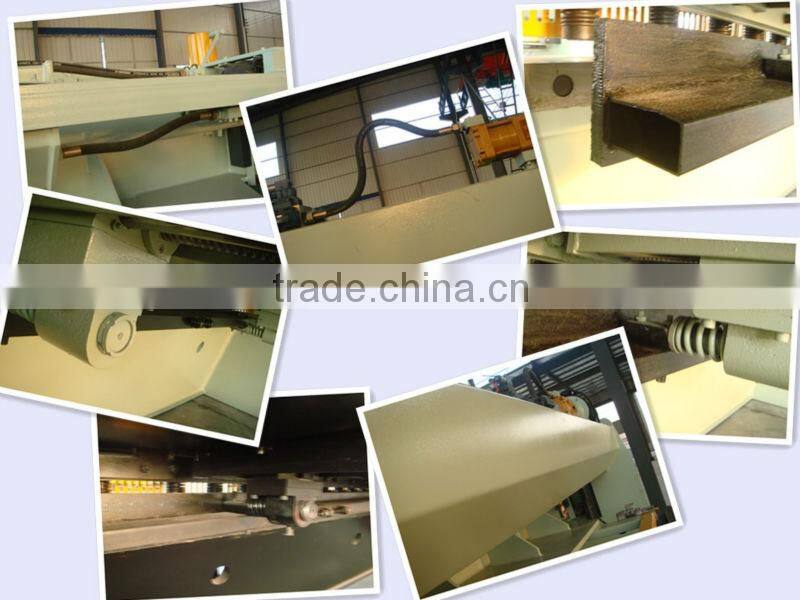

Details photos:
Semi-products:
1.How about your QC11Y CNC control shearing machine quality?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your QC11Y CNC control shearing machine?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
