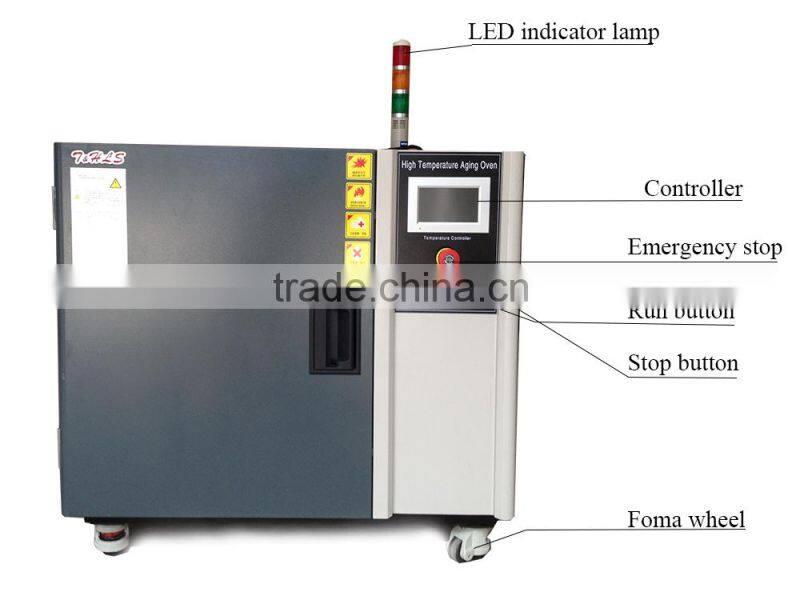

Programmable High Temperature Burn-in Chamber Price
US$ 1,850 - 2,100
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Harris
Model Number:
TGHX-100L
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10 Years Factory High Temperature Burn-in Oven OEMUS$ 2,000 - 2,100MOQ: 1 Set -
OEM Acceptable Factory Design High Temperature Burn-in Machine PriceUS$ 1,850 - 4,000MOQ: 1 Set
-
Good Quality High Temperature Air Aging Oven PriceUS$ 1,850 - 3,700MOQ: 1 Set
-
Korea Temi Controller Hot Air Weathing Machine, Hot Air Weathering Equipment PriceUS$ 1,850 - 4,000MOQ: 1 Set
-
Good Quality Touch Screen Controller Hot Air Aging Oven PriceUS$ 2,000 - 5,000MOQ: 1 Set
Brand Name
Harris
Model Number
TGHX-100L
Place of Origin
Jiangsu, China
Programmable high temperature burn-in chamber price
Product Description
High temperature burn-in chamber is designed and manufactured accord to the requirements of IEC 60884, IEC60598 and relevant standards. It is use to simulate a high temperature environment to test the ability of material to withstand thermo-mechanical stress. This machine can be wide used in many industries such as Electrical Appliances, Electrical wire accessories, luminaries, motors, connectors, etc.
This machine has the advantages of easy operate, fast heating, high precision, temperature be even and stable.
High temperature burn-in chamber | ||||||||||
| Specification | TGH-100UA | TGH-150UA | TGH-250UA | TGH-500UA | TGH-010UA | |||||
| Workroom Sizes W*D*H (cm) | 50x40x50 | 50x50x60 | 60x60x70 | 80x70x90 | 100x100x100 | |||||
| Inner chamber volume(V) | 100L | 150L | 252L | 504L | 1000L | |||||
| Outer dimension W*D*H(cm) | 98x95x160 | 98x105x170 | 108x112x180 | 128x125x200 | 148x155x210 | |||||
| Packing Size | 113x110x175 | 113x120x185 | 123x127x195 | 133x140x215 | 163x160x225 | |||||
| G.W(kg) | 360 | 390 | 450 | 480 | 620 | |||||
| Temperature Range | RT+10℃-300℃ | |||||||||
| Temperature Fluctuation | ≤±0.5°C(standard)/≤±0.2°C(optional) | |||||||||
| Temperature Evenness | ≤±2°C | |||||||||
| Temperature Deviation | ≤1°C | |||||||||
| Accuracy | 0.1°C,1.5%R.H (standard)/0.01℃,1.5%R.H(optional) | |||||||||
| Humidity Range | 20%~98%R.H/10%~98%R.H(optional) | |||||||||
| Humidity Deviation | ±2% R.H | |||||||||
| Temperature Rise Speed | 0.5°C~5°C/min(programmable) | |||||||||
| Time needed for heating | RT°C~250°C≤60min | |||||||||
| The machine noise | 72 dB(A) | |||||||||
| Load on the largest | 100kg,≤20kg/layer | 150kg,≤26kg/layer | 260kg,≤30kg/layer | 260kg,≤40kg/layer | 300kg,≤60kg/layer | |||||
| Equipment installed power | ~3.25KW | ~3.55KW | ~3.95KW | ~5.5KW | ~6.25KW | |||||
| material | Inner chamber:# SUS 304 stainless steel | The outer wall:A3 carbon steel plate with plastic spray/#SUS304 | ||||||||
| Wind Cycling Way | Centrifugal fan forced air circulation | |||||||||
| Heater | Nickel chrome heating wire heater | |||||||||
| Humidifier | Semi-closed steam and wet | |||||||||
| Water Suplying Way | Automatic cycling water supply | |||||||||
| Controller | Japan OYO/Korea Temi | |||||||||
| Standard Accessoriesparts | 1 Observe window(double-deck cavity toughened glass),50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze,3 fuses,1 power line | |||||||||
