Open-top High Temperature and Humidity Enviromental Chamber Price

Wuxi Harris Environment Equipment Co., Ltd.
Open-top High Temperature and Humidity Enviromental Chamber Price thumbnail-1
Open-top High Temperature and Humidity Enviromental Chamber Price thumbnail-2
Open-top High Temperature and Humidity Enviromental Chamber Price thumbnail-3
Open-top High Temperature and Humidity Enviromental Chamber Price thumbnail-4
Open-top High Temperature and Humidity Enviromental Chamber Price thumbnail-5
Open-top High Temperature and Humidity Enviromental Chamber Price thumbnail-6
Open-top High Temperature and Humidity Enviromental Chamber Price photo-1
Open-top High Temperature and Humidity Enviromental Chamber Price photo-2
Open-top High Temperature and Humidity Enviromental Chamber Price photo-3
Open-top High Temperature and Humidity Enviromental Chamber Price photo-4
Open-top High Temperature and Humidity Enviromental Chamber Price photo-5
Open-top High Temperature and Humidity Enviromental Chamber Price photo-6
US$ 5,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Harris
Model Number:
TGH-100UA
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Harris
Model Number TGH-100UA
Power Electronic
Usage Other, Universal Testing Machine, high temperature test

Open-top high temperature and humidity enviromental chamber price

Product Description

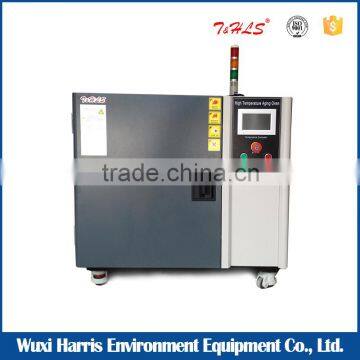

High temperature and humidity environmental chamber
SpecificationTGH-100UATGH-150UATGH-250UATGH-500UATGH-010UA
Workroom Sizes W*D*H (cm)50x40x5050x50x60   60x60x7080x70x90100x100x100
Inner chamber volume(V)100L150L252L504L1000L
Outer dimension W*D*H(cm)98x95x16098x105x170108x112x180128x125x200148x155x210
Packing Size113x110x175113x120x185123x127x195133x140x215163x160x225
G.W(kg)360390450480620
Temperature RangeRT℃-300℃
Temperature Fluctuation≤±0.5°C(standard)/≤±0.2°C(optional)
Temperature Evenness≤±2°C
Temperature Deviation≤1°C
Accuracy0.1°C,1.5%R.H (standard)/0.01℃,1.5%R.H(optional)
Humidity Range20%~98%R.H/10%~98%R.H(optional)
Humidity Deviation±2% R.H
Temperature Rise Speed0.5°C~5°C/min(programmable)
Time needed for heatingRT°C~250°C≤60min
The machine noise72 dB(A)
Load on the largest100kg,≤20kg/layer150kg,≤26kg/layer260kg,≤30kg/layer260kg,≤40kg/layer300kg,≤60kg/layer
Equipment installed power~3.25KW~3.55KW~3.95KW~5.5KW~6.25KW
materialInner chamber:# SUS 304 stainless steelThe outer wall:A3 carbon steel plate with plastic spray/#SUS304
Wind Cycling WayCentrifugal fan forced air circulation
HeaterNickel chrome heating wire heater
HumidifierSemi-closed steam and wet
Water Suplying WayAutomatic cycling water supply
ControllerJapan OYO/Korea Temi
Standard Accessoriesparts1 Observe window(double-deck cavity toughened glass),50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze,3 fuses,1 power line
