Wholesale automatic leveler machine
| W43-32x2000 automatic leveler machine Performace: |
Levelling machine is special equioment for leveling metal plate and is used to level the drum plate and uneven plate (carbon plate, stainless steel, aluminum plate and the other metal plate) in cold condition. It can also make up the uncoiling-leveling-shearing production line and the other product producing line together with the relative equipment. It is suitable for the fields of machinery, vehicles, metal product, household appliances, steel structure and omament.
| W43-32x2000 automatic leveler machine Patameter: |
| Model | 32*2000 |
| Max. levelling thickness (mm) | 32 |
| Max. levelling width (mm) | 2000 |
| Min.levelling thickness (mm) | 8 |
| Plate yield limit (mpa) | 360 |
| Distance between work rollers (mm) | 300 |
| Work roller diameter (mm) | 260 |
| Work roller number (mm) | 9 |
| Levelling speed (m/min) | 7 |
| Main motor power (kw) | 110 |
| Overall dimensions(L*W*H) (mm) | 11000*2900*5900 |
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.

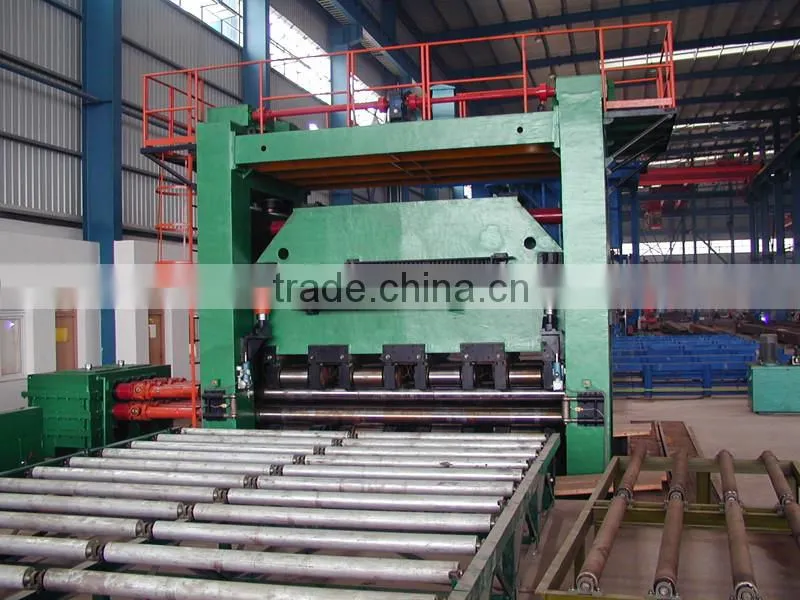

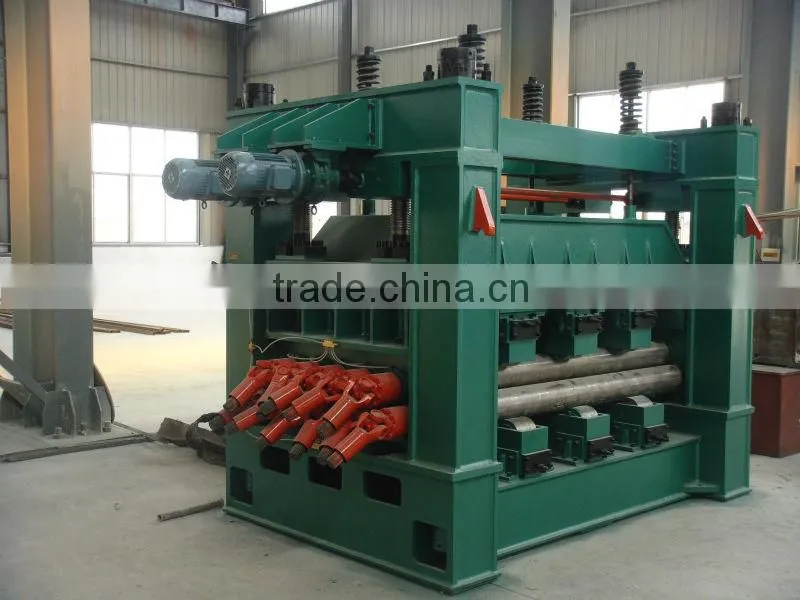

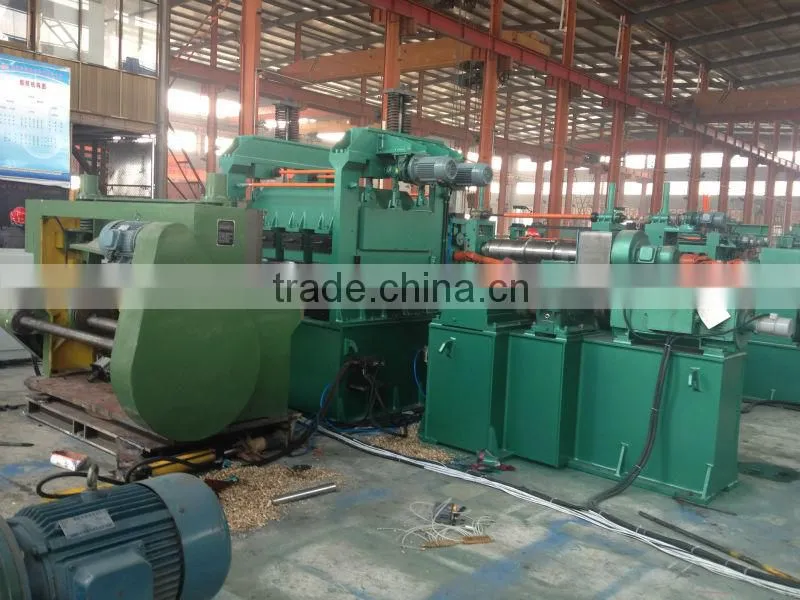

Details photos:
1.How about your automatic leveler machine quality?
Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.
2. What’s your after-sale service?
Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. How to operate your automatic leveler machine ?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
