Specifications
4mm solar cable1) TUV 2pfg 1169
2)2.5/4.0/6.0/10mm
3)black,red,blue

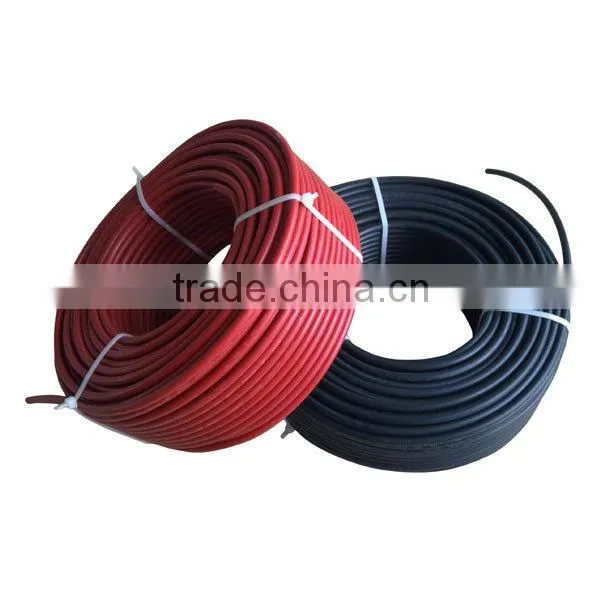

4mm solar cable
SPECIFICATION OF SOLAR CABLE
1. Construction
Cross Section |
Conductor Construction |
Conductor nominal Dia |
Standard diameter |
Outer diameter |
mm2 |
pcs/mm |
|
mm |
mm |
1*1.5 |
30/0.25 |
1.57 |
3.38±0.1 |
5.5±0.2 |
1*2.5 |
50/0.25 |
2.02 |
3.38±0.1 |
5.5±0.2 |
1*4.0 |
56/0.30 |
2.59 |
4.29±0.1 |
6.1±0.2 |
1*6.0 |
84/0.30 |
3.56 |
4.87±0.1 |
7.0±0.2 |
1*10 |
80/0.40 |
4.75 |
5.93±0.1 |
8.3±0.2 |
1*16 |
128/0.40 |
5.84 |
7.02±0.1 |
9.4±0.3 |
1*25 |
196/0.40 |
7.30 |
8.7±0.1 |
11.1±0.3 |
CONDUCTOR MATERIAL: Tinned coper
INSULATION MATERIAL: Electron-beam cross-linked
COLOR: BLACK,RED BLUE OR CUSTOMIZED
2. Technical Data
Nominal voltage: U/U=600/1000 AC, 1800DC
Test Voltage: 6500V, 5min, 50Hz
Conductor DC resistance at 20°C≤ 3.39Ω/km
Temp. rating: -40°C~+125°C
Max. Conductor Temp.: +120°C
Ambiet Temp. (-40°C~+90°C): >25 years
Bending radius: ≥8×cable OD
Fire performance: IEC60332-1 TUV 3Pfg1169/08:2007
UV Resistant ≥720h
Content of halogen acid gas: IEC670754-1 EN50267-2-1
Smoke density: IEC61034, EN50268-2
