High efficiency flexible solar panel , flexible thin film solar panel , flexible solar panel china
- 300 Milliwatt / Milliwatts per Month
- SHANGHAI/NINGBO
- T/T Credit Card PayPal
- HOT SALE amorphous silicon thin film flexible solar panel with good price
- HOT SALE China flexible thin film solar panel for boats
- HOT SALE 72W thin film flexible solar panel , solar panel flexible, solar panel
- 31W flexible thin film solar panel, flexible solar
- Hot sale flexible solar module
- Marine flexible solar panel
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | CREATOP | Model Number: | 72W |
Material: | Amorphous Silicon | Size: | Length: 2849 mm (112.1"), Width: 394 mm (15.5"), Depth: 4 mm (0.2") | Number of Cells: | 11 triple |
Max. Power: | 72W |
Packaging Details
high efficiency flexible solar panel , flexible thin film solar panel , flexible solar panel china packed in Standard export carton, or pallet
Product Description
Specifications

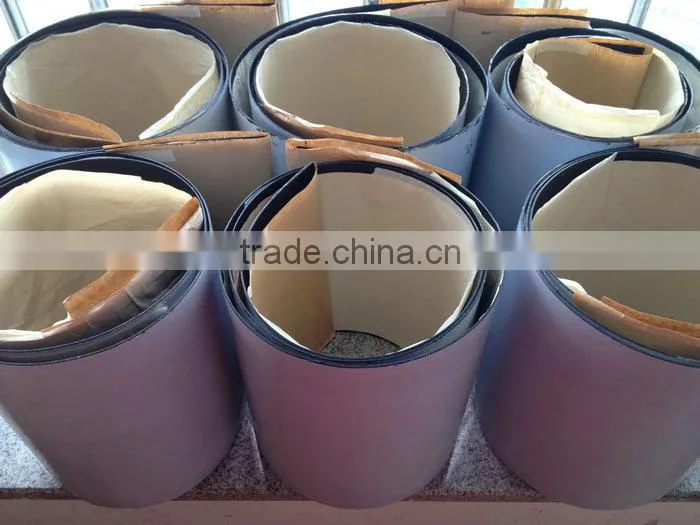

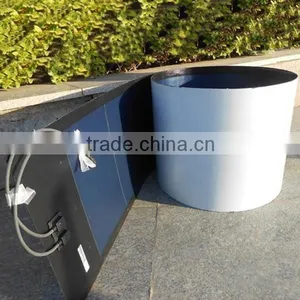

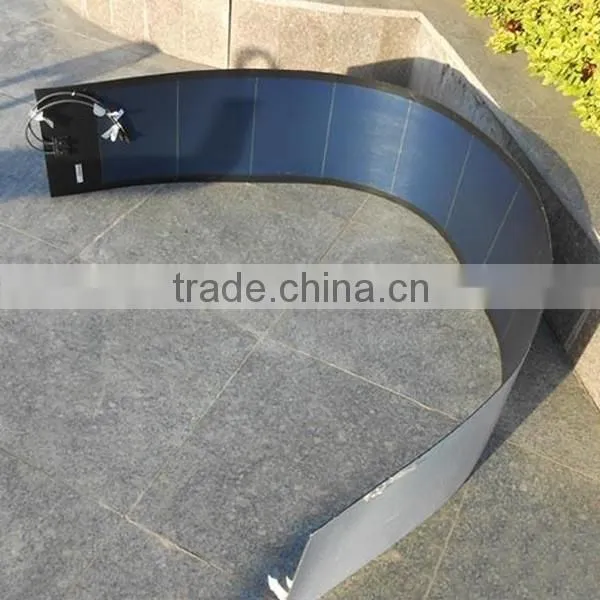

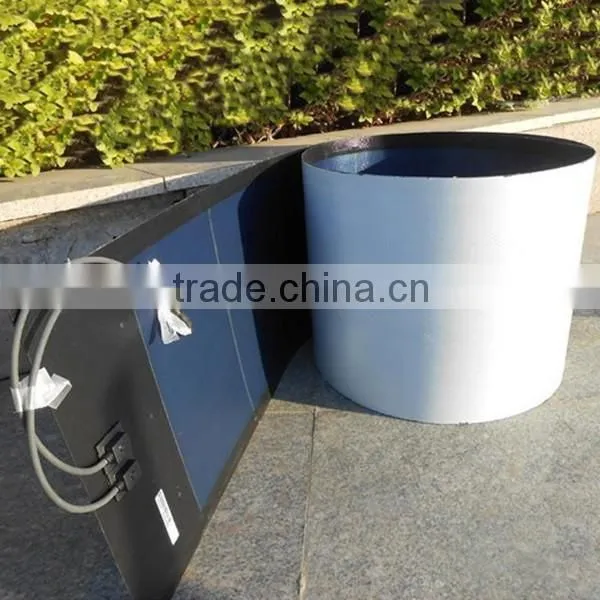

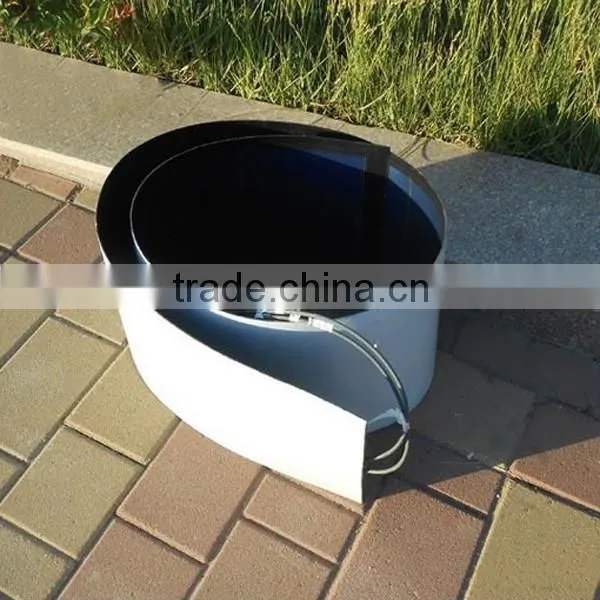

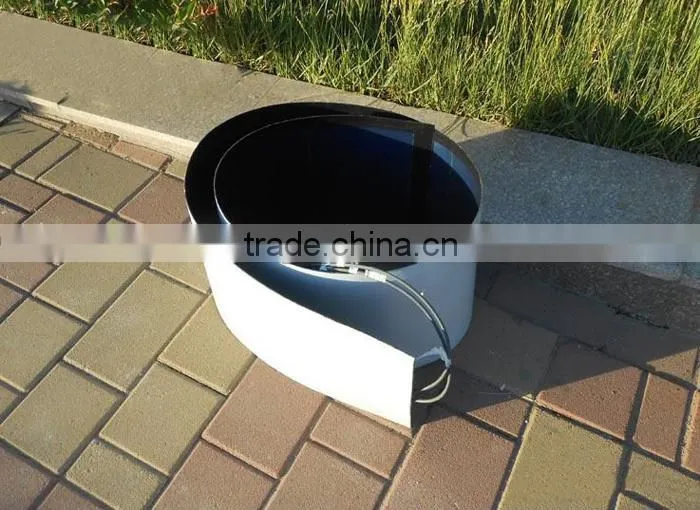

High efficiency flexible solar panel , flexible thin film solar panel , flexible solar panel china1)rollable
2)light weight
High efficiency flexible solar panel , flexible thin film solar panel , flexible solar panel china
• High Temperature and Low Light Performance
• 5-Year Limited Product Warranty
• Limited Power Output Warranty:
92% at 10 years, 84% at 20 years, 80% at 25 years (of minimum power)
• Quick-Connect Terminals and Adhesive Backing
• Bypass Diodes for Shadow Tolerance
Performance Characteristics
Rated Power (Pmax): 72 Wp
Production Pmax Tolerance: ± 5 %
Construction Characteristics
Dimensions: Length: 2849 mm (112.1”), Width: 394 mm (15.5”), Depth: 4 mm (0.2”),
16 mm (0.6”) including potted terminal housing assembly
Weight: 3.9 kg (8.7 lbs)
Output Cables: 4 mm2 (12 AWG) cable with weatherproof DC-rated quick-connect terminals
560 mm (22“) length
Bypass Diodes: Connected across every solar cell
Encapsulation: Durable ETFE high light-transmissive polymer
Adhesive: Ethylene propylene copolymer adhesive sealant with microbial inhibitor
Cell Type: 11 triple junction amorphous silicon solar cells 356 mm x 239 mm
(14” x 9.4”) connected in series
Electrical Specifications
STC
(Standard Test Conditions)
(1000 W/m2, AM 1.5, 25 °C Cell Temperature)
Maximum Power (Pmax): 72 W
Voltage at Pmax (Vmp): 16.5 V
Current at Pmax (lmp): 4.36 A
Short-circuit Current (Isc): 5.3 A
Open-circuit Voltage (Voc): 23.1 V
Maximum Series Fuse Rating: 8 A
Temperature Coefficients
(at AM 1.5, 1000 W/m2 irradiance)
Temperature Coefficient (TC) of Isc: 0.001/°K(0.10%/°C)
Temperature Coefficient (TC) of Voc: -0.0038/°K (-0.38%/°C)
Temperature Coefficient (TC) of Pmax: -0.0021/°K (-0.21%/°C)
Temperature Coefficient (TC) of Imp: 0.001/°K (0.10%/°C)
Temperature Coefficient (TC) of Vmp: -0.0031/°K (-0.31%/°C)
y = yreference • [1 + TC • (T- Treference)]
Thin flim flexible solar panel products list:
1):Power:31W&33W
Size:1410*394*4mm
2):Power:68W&72W
Size:2849*394*4mm
3):Power:136W&144W
Size:5486*394*4mm
Please feel free to contact us for more details.
We also can offer you semi flexible solar panel, mono solar panel, poly solar module, solar inverter, solar controller, lead acid battery, lifepo4 battery, solar connector and other related items.
Company Profile
Hangzhou Creatop New Energy Co., Ltd. is a subsidiary company of the Eternal Top Industrial Group. Our workshops located in Zhejiang Province, near Shanghai and Ningbo Port.
Our main products:
1)Solar items: solar panels, flexible solar panels, solar lights, solar street light, all in one solar street light, solar garden light, solar led light, solar inverter, solar controller, solar charger, solar battery, solar cable and connectors.
2)Power tools and accessories: Oscillating multi tool, oscillating blades, etc.
3)Auto repair tools: engine tools, timing tools, testing tools, pliers, hydraulic bottle jacks, floor jacks, engine stand, shop press, tire machines, vacuum cleaner, grease pump, tool cabinet, etc.
All our products comply or exceed international standards.
Our ethos of "Quality Products at Competitive Prices with a Professional Back-up Service' is renowned for being the best in the business.
We value your feedback and we are also committed to achieving a 100% customer satisfaction rate from all of you.
WELCOME TO CONTACT US!
