Specifications
HOT SALE amorphous silicon thin film flexible solar panel with good price1.31-144W
2.Light weight
3.Self-adhesive

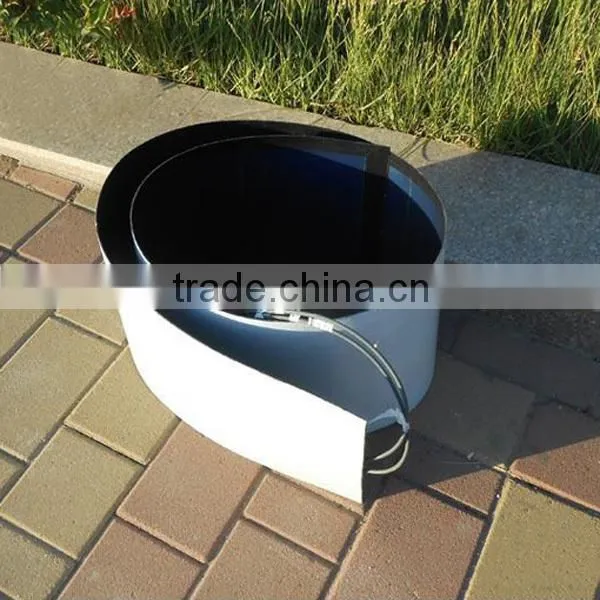

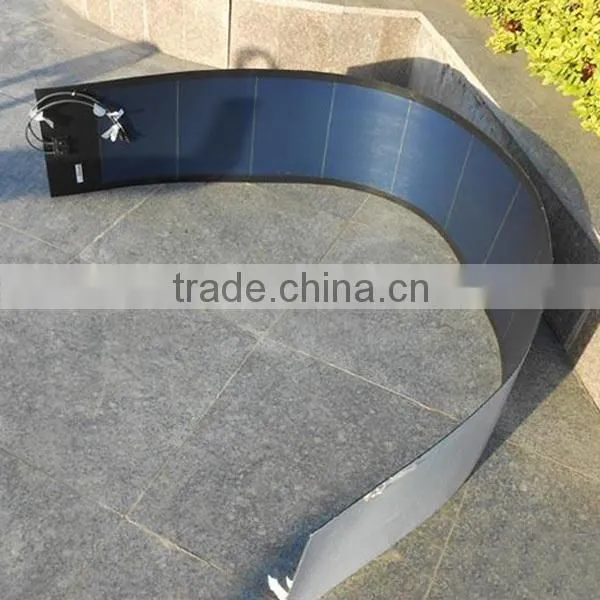

HOT SALE amorphous silicon thin film flexible solar panel with good price
• High Temperature and Low Light Performance
• 5-Year Limited Product Warranty
• Limited Power Output Warranty:
92% at 10 years, 84% at 20 years, 80% at 25 years (of minimum power)
• Quick-Connect Terminals and Adhesive Backing
• Bypass Diodes for Shadow Tolerance
Performance Characteristics
Rated Power (Pmax): 68 Wp
Production Pmax Tolerance: ± 5 %
Construction Characteristics
Dimensions: Length: 2849 mm (112.1”), Width: 394 mm (15.5”), Depth: 4 mm (0.2”),
16 mm (0.6”) including potted terminal housing assembly
Weight: 3.9 kg (8.7 lbs)
Output Cables: 4 mm2 (12 AWG) cable with weatherproof DC-rated quick-connect terminals
560 mm (22“) length
Bypass Diodes: Connected across every solar cell
Encapsulation: Durable ETFE high light-transmissive polymer
Adhesive: Ethylene propylene copolymer adhesive sealant with microbial inhibitor
Cell Type: 11 triple junction amorphous silicon solar cells 356 mm x 239 mm
(14” x 9.4”) connected in series
Electrical Specifications
STC
(Standard Test Conditions)
(1000 W/m2, AM 1.5, 25 °C Cell Temperature)
Maximum Power (Pmax): 68 W
Voltage at Pmax (Vmp): 16.5 V
Current at Pmax (lmp): 4.13 A
Short-circuit Current (Isc): 5.1 A
Open-circuit Voltage (Voc): 23.1 V
Maximum Series Fuse Rating: 8 A
Temperature Coefficients
(at AM 1.5, 1000 W/m2 irradiance)
Temperature Coefficient (TC) of Isc: 0.001/°K(0.10%/°C)
Temperature Coefficient (TC) of Voc: -0.0038/°K (-0.38%/°C)
Temperature Coefficient (TC) of Pmax: -0.0021/°K (-0.21%/°C)
Temperature Coefficient (TC) of Imp: 0.001/°K (0.10%/°C)
Temperature Coefficient (TC) of Vmp: -0.0031/°K (-0.31%/°C)
y = yreference • [1 + TC • (T- Treference)]
Thin flim flexible solar panel products list:
1):Power:31W&33W
Size:1410*394*4mm
2):Power:68W&72W
Size:2849*394*4mm
3):Power:136W&144W
Size:5486*394*4mm
Please feel free to contact us for more details.
We also can offer you semi flexible solar panel, mono solar panel, poly solar module, solar inverter, solar controller, lead acid battery, lifepo4 battery, solar connector and other related items.
