Specifications
1.Tianjin TAIYITO PLC/X10/Zigbee Smart Home automation system2.wireless zigbee
3.factory R&D
3.CE
ZIGBEE Remote Control Smart Home Automation
1.Specification of TYT ZIGBEE Remote Control Smart Home.
TAIYTO zigbee smart home automation system based on international standard zigbee/IEE 802.15.4 protocol to be developed
TAIYITO zigbee system not only have zigbee 's common features,like
-no need put special wire,only leave Naugh wire,Live wire and Control wire in Wall switch box to power zigbee products up to work normally;
-high speed talk with feedback :bidirectional communication ≤ 1s;
-low power consumption:Static power ≤0.5W;
but also have TAIYITO own uniques,like
-wide working voltage:AC 95-240 V
-easy to install,use and maintain
-brushed metal frame and risistance touch screen with led backligt.

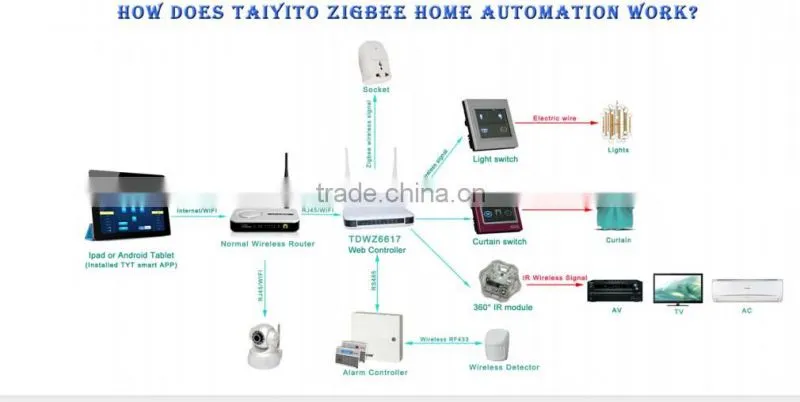

2.Function Description of TYT ZIGBEE Smart Home Automation
| What can it do for you | ios/android apps control | |
| touch remote control | ||
| wall-type centralized control | ||
| scene control | ||
| timming control | ||
| telephone voice system control | ||
| What you can contol with it | on/off and dimmer the light | |
| on/off and vol+/-.. the TV,DVD,AC,back ground music.. | ||
| on/off the water heater,cooker etc.. | ||
| up/down and stop the electric currain | ||
| open/close the fingerprint door lock | ||
| monitor house by ip camera | ||
| competible with secuirty system products | ||
3.Product parameters of theTYT ZIGBEE Remote control smart home automation
Product Type |
zigbee domotica smart home automation |
Zigbee protocol: |
IEE802.15.4 |
Receving and sensed frequency: |
2.4G |
Power supply volatage: |
95-240VAC,50-60HZ |
Can receiving data interface: |
RS485, day contact,zigbee etc. |
Output power: |
3-way output,each way:220v,300w |
Dimmonsion: |
Front panel:86x86x13 Back panel:52x49x26 |
4.The zigbee remote control smart home automation domotica solution list
| 1 complet set of Zigbee Solution | |||
| Model No. | Description | Quantity | Function |
| PCS | |||
| TDWZ6000S | Zigbee Coordinate | 1 | It use to do networking in zigbee system,you must have it in this system. |
| TDWZ6617 | Zigbee Network Service Controller(Including Free Software) | 1 | Smartphone/Ipad controller |
| TDWZ6406 | Zigbee Touch Screen Wall Mount Centralized Controller | 1 | wall-type centralized controller |
| TDZ4203S | Zigbee Touch Screen Fluorescent Lamp/Appliance Switch(Max1500W) | 1 | control lamp |
| TDZ4404S | Zigbee Touch Screen 2-way Fluorescent Lamp/Appliance Switch | 1 | |
| TDZ4405S | Zigbee Touch Screen 3-way Fluorescent Lamp/Appliance Switch | 1 | |
| TDZ4401S | Zigbee Touch Screen Dimmer Switch | 1 | |
| TDZ4202S | Zigbee Smart Socket | 1 | control electric appliance (like water heater,cookier etc..) |
| TDWZ6436 | Zigbee IR Transceiver | 1 | control infared appliance(like TV,AC,AV,DVD,etc) |
| TDX7608 | AV Multimedia Main Controller | 1 | control AV mulitmedia |
| TDX701 | ceiling loudspeakers | 2 | |
| TDZ4466S | Zigbee one way Touch Screen Automatic Curtain Switch | 1 | control flat-open electric curtain |
| TDX4467 | Flat-open Electric & manual Curtain Motor | 1 | |
| TDX4467G | Flat-open Electric & manual Curtain Track | 1.5 meter | |
| TDX4468 | Roller blind electric curtain Motor(10N) | 1 | control roller blind curtain |
| TDX4468G | Roller blind Electric Curtain Track(φ50) | 1meter | |
| TDX4487B(bronze) | Bronze Fingerprint Door Lock (with dustproof shield) | 1 | control door lock |
| TDZ4488S | Zigbee Touch Screen Fingerprint door lock Switch | 1 | |
| TDX091 | TCP/ IP Intercom Monitor Video Door Phone | 1 | Vedio door phone link to door lock |
| TDX007 | Outdoor Camera | 1 | |
| TDSK239K | A Package of Security Maninframe(with keyboards) | 1 | control secutiry system prdoucts |
| TDsk6842 | Gas sensor | 1 | |
5.CE certificate of the zigbee remote control smart home automation
6.Packaging And Shipping
