Specifications
TYT ZIGBEE Wireless Remote Control Domotica Smart Home Automation,home controlled by the phone1,R&D factory
2.wireless
3.CE
TYT ZIGBEE Wireless Remote Control Domotica Smart Home Automation,
home controlled by the phone
1.About Taiyito and its Wireless ZIGBEE Smart Home system
Based on its strong research and development advantage, Taiyito has now developed its world famous featured products Bi-directional communicational function Power Line Control home automation products system and Bi-directional communicational ultrahigh frequency ZIGBEE home automation products system, both of which has obtained an international independent intellectual property rights in the field of smart home automation digital products.
Zigebee technology is the newly developed and widely used specs built around the protocol of IEEE802.15.4. It is more faster and stable than the previous home automation products. It is environmental friendly, energy saving, easy and convinent to control.

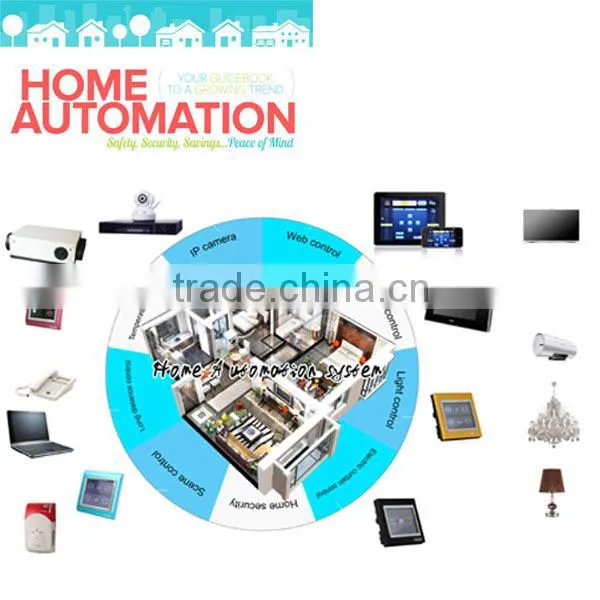

Zigbee home automation means you can use some handable devices like :mobile(android /ios system)/tablet pc to intelligent control(local/farway remote control) almost all electric device in home,like lights,TV/AC,water heater,windows,curtain,door lock,clother air,gas detector,water level etc.You also can monitor house's conditions anywhere and anytime.All in all,TAIYITO zigbee home autoation make you house more easy and more comfortable
TAIYITO Zigbee home automation incluse 2 parts(controller and controlled switch).You only need choose some controllers ,then add some relative controlled switch,then you will get 1 complet different house.
2.Specification of TYT ZIGBEE Remote Control Smart Home.
TAIYTO zigbee smart home automation system based on international standard zigbee/IEE 802.15.4 protocol to be developed
TAIYITO zigbee system not only have zigbee 's common features,like
-no need put special wire,only leave Naugh wire,Live wire and Control wire in Wall switch box to power zigbee products up to work normally;
-high speed talk with feedback :bidirectional communication ≤ 1s;
-low power consumption:Static power ≤0.5W;
but also have TAIYITO own uniques,like
-wide working voltage:AC 95-240 V
-easy to install,use and maintain
-brushed metal frame and risistance touch screen with led backligt.
3.Function Description
| What can it do for you | ios/android apps control | |
| touch remote control | ||
| wall-type centralized control | ||
| scene control | ||
| timming control | ||
| telephone voice system control | ||
| What you can contol with it | on/off and dimmer the light | |
| on/off and vol+/-.. the TV,DVD,AC,back ground music.. | ||
| on/off the water heater,cooker etc.. | ||
| up/down and stop the electric currain | ||
| open/close the fingerprint door lock | ||
| monitor house by ip camera | ||
| competible with secuirty system products | ||
4.Product parameters of theTYT ZIGBEE Remote control smart home automation
Product Type |
zigbee domotica smart home automation |
Zigbee protocol: |
IEE802.15.4 |
Receving and sensed frequency: |
2.4G |
Power supply volatage: |
95-240VAC,50-60HZ |
Can receiving data interface: |
RS485, day contact,zigbee etc. |
Output power: |
3-way output,each way:220v,300w |
Dimmonsion: |
Front panel:86x86x13 Back panel:52x49x26 |

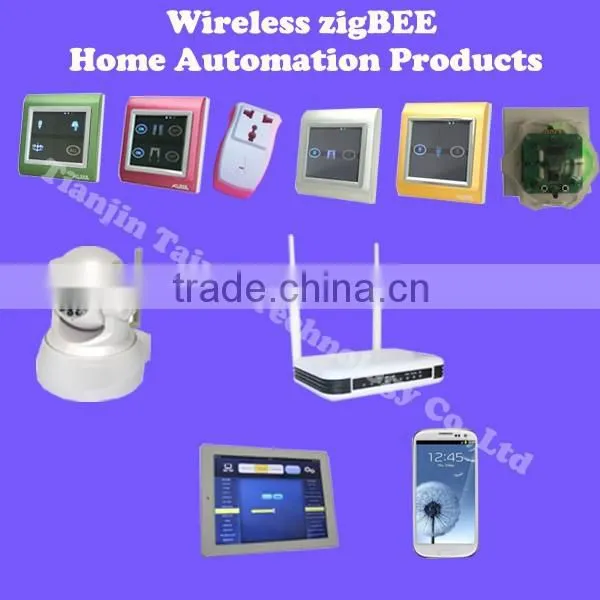

5.The zigbee remote control smart home automation domotica list
| 1 complet set of Zigbee Solution | |||
| Model No. | Description | Quantity | Function |
| PCS | |||
| TDWZ6000S | Zigbee Coordinate | 1 | It use to do networking in zigbee system,you must have it in this system. |
| TDWZ6617 | Zigbee Network Service Controller(Including Free Software) | 1 | Smartphone/Ipad controller |
| TDWZ6406 | Zigbee Touch Screen Wall Mount Centralized Controller | 1 | wall-type centralized controller |
| TDZ4203S | Zigbee Touch Screen Fluorescent Lamp/Appliance Switch(Max1500W) | 1 | control lamp |
| TDZ4404S | Zigbee Touch Screen 2-way Fluorescent Lamp/Appliance Switch | 1 | |
| TDZ4405S | Zigbee Touch Screen 3-way Fluorescent Lamp/Appliance Switch | 1 | |
| TDZ4401S | Zigbee Touch Screen Dimmer Switch | 1 | |
| TDZ4202S | Zigbee Smart Socket | 1 | control electric appliance (like water heater,cookier etc..) |
| TDWZ6436 | Zigbee IR Transceiver | 1 | control infared appliance(like TV,AC,AV,DVD,etc) |
| TDX7608 | AV Multimedia Main Controller | 1 | control AV mulitmedia |
| TDX701 | ceiling loudspeakers | 2 | |
| TDZ4466S | Zigbee one way Touch Screen Automatic Curtain Switch | 1 | control flat-open electric curtain |
| TDX4467 | Flat-open Electric & manual Curtain Motor | 1 | |
| TDX4467G | Flat-open Electric & manual Curtain Track | 1.5 meter | |
| TDX4468 | Roller blind electric curtain Motor(10N) | 1 | control roller blind curtain |
| TDX4468G | Roller blind Electric Curtain Track(φ50) | 1meter | |
| TDX4487B(bronze) | Bronze Fingerprint Door Lock (with dustproof shield) | 1 | control door lock |
| TDZ4488S | Zigbee Touch Screen Fingerprint door lock Switch | 1 | |
| TDX091 | TCP/ IP Intercom Monitor Video Door Phone | 1 | Vedio door phone link to door lock |
| TDX007 | Outdoor Camera | 1 | |
| TDSK239K | A Package of Security Maninframe(with keyboards) | 1 | control secutiry system prdoucts |
| TDSk6842 | Gas sensor | 1 | |
6.CE certificate of the zigbee remote control smart home automation
7.Packaging And Shipping
