Peanut Bagger With Sewing Machine and Conveyor

Peanut Bagger With Sewing Machine and Conveyor photo-1

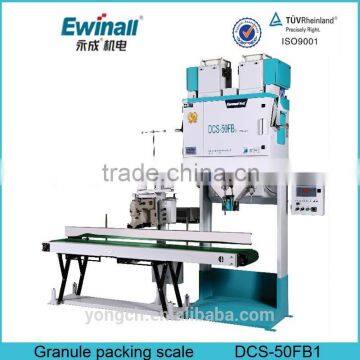

Peanut Bagger With Sewing Machine and Conveyor photo-2
Peanut Bagger With Sewing Machine and Conveyor photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
EWINALL
Payment & Shipping
Payment Methods:
Port of Shipment:
Any chinese port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Anhui, China
Brand Name EWINALL
Model Number 50FB
Voltage 4N-AC380V50Hz
Power(W) 1.1kw
Dimension(L*W*H) 2873*754*2330
Weight 700kg
Certification IS0
After-sales Service Provided Overseas third-party support available

peanut bagger with sewing machine and conveyor



1. The usage

The coffee bean bagger is suitable for the quantitative packing of granule,such as rice,bean,grain,chemicalmaterial.The machine has two weighing hoppers inside.





2.Product Feature



  • PLC control+weighing controller
  • Sealing types:sack closer or heat sealer
  • Auto weighing,sewing,pinting date and thread-cutting
  • All the parts contact with material is stainless steel
  • Three load cells structure,more stable,higher precision
  • Can fill with nitrogen or carbon dioxide to have vacuum packing
  • The sack closer has atuo oil-supply system
  • Sealed components,good for moisture-proof
  • Can reserve 232/485 interface
  • Auto lifting conveyor
  • Easy installation
  • Easy operation
  • High quality
  • Pass ISO9001:2008 and TUV
peanut bagger with sewing machine and conveyor


Model

DCS-50FB1

Weigh Range(kg)

0.5-50

Division value(g)

2

Weighing error

0.1%F.S

Weighing speed(bag/h)

<1300

Working environment

power supply

Relative humidity (RH) less than 90%,4N-AC380V 50Hz

Power consumption &Air consumption

1.1KW 0.4-0.5Mpa compressed air 1m3/h

Dimension(mm)

Length×Width×Height

3076×953×2690
