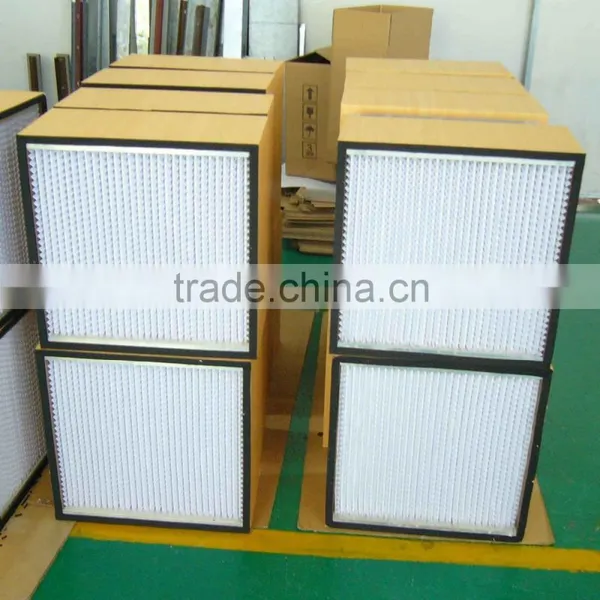

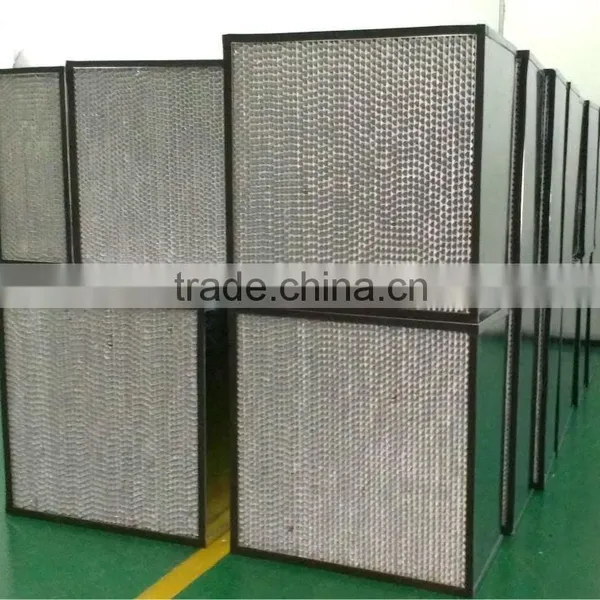

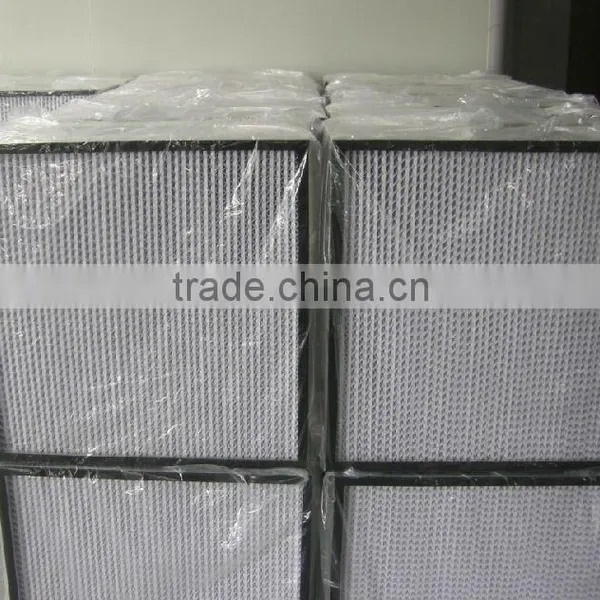

Help CenterHigh Capacity HEPA Filter for Clean Room
Related Products
-
Super-low-resistance Mini-pleat Hepa Air Filter for Clean RoomNegotiableMOQ: 100 Pieces -
Aluminum Separated Box FilterUS$ 26.22 - 64.52MOQ: 50 Pieces
-
V-bank Cell Medium HEPA Compact Filter for AHUUS$ 38.09 - 47.62MOQ: 50 Pieces
-
F8 Rigid Pocket Filter for HVACUS$ 5.69 - 29.89MOQ: 100 Pieces
-
Plastic Frame V Bank Medium FilterUS$ 38.09 - 47.62MOQ: 50 Pieces
c
Specifications
High capacity HEPA filter:
1) H13 hepa filter
2) Galvanized or aluminum
3) HEPA Efficiency:H13
4) Media:fiberglass or PP
High capacity HEPA filter are mainly used to filtrate the suspended particles in the air with the diameter of 0.3um and below and used for the terminal filtration of all kinds of filtration system.
Applications:
HEPA filters are extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron, semiconductor, precision mechanism, pharmacy, hospital and food, etc., which require relatively high cleanliness factors. It is suitable to filtrate for clean room and clean factory workshop with dust particle diameter less then 0.3-0.5um.
Size and Specification:
| Model | Outside dimensions(mm) | Rated air flow (m/h) | Initial resistance (Pa) | Efficiency | |
| ZS-GB320 | 320x320x220 | 400 | ≤120pa(PP) ≤220pa (fiberglass) | F9-H14 (95%-99.995%) | |
| ZS-GB350 | 350x350x220 | 500 | |||
| ZS-GB484 | 484x484x220 | 1000 | |||
| ZS-GB610 | 610x610x150 | ||||
| ZS-GB630 | 630x630x220 | 1500 | |||
| ZS-GB726 | 726x484x220 | ||||
| ZS-GB915 | 915x610x150 | ||||
| ZS-GB968 | 968x484x220 | 2000 | |||
| ZS-GB1220 | 1220x610x150 | ||||
| ZS-GB1220 | 1220x630x220 | 3000 | |||
| ZS-YGX-484 | 484x484x220 | 1000 | |||
| ZS-YGX-295 | 295x595x292 | 1600 | |||
| ZS-YGX-595 | 595x595x292 | 3200 | |||
| ZS-YGX-610 | 610X610X292 | 3400 | |||
| ZS-YGX-610 | 610x610x150 | 1000 | |||
| ZS-YGX-630 | 630x630x220 | 1500 | |||
| ZS-YGX-1220 | 1220x610x150 | 2000 | |||
Material and operating conditions:
External frame |
Aluminum Alloy/GI/Stainless steel |
Sealant |
Polyurethane |
Separator |
Clapboard or aluminum foil |
Filter media |
Fiberglass /HV fiberglass / PP |
Maximum operating temperature |
80°C |
Maximum operating humidity |
100% |
HEPA filter Efficiency |
≥99.99% |
