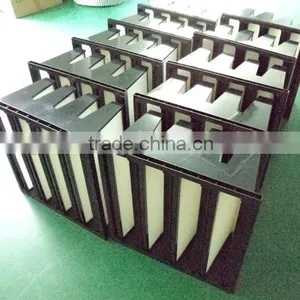

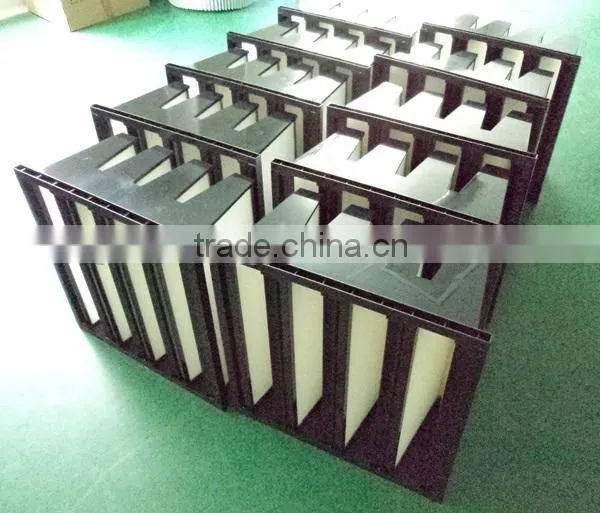

Plastic Frame V Bank Medium Filter

Name: Plastic Frame V Bank Medium Filter
Brand: zhisheng
SKU: 104231147

US$ 38.09 - 47.62 MOQ: 50 Pieces

Key Specifications

Condition:

New

Efficiency:

99.99%

Construction:

Box Filter

Dongguan Zhisheng Purification Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Efficiency 99.99%

Construction Box Filter

Filtration Grade Hepa Filter

Medium Material Fiberglass

Porosity 0.3um

Place of Origin Guangdong, China

Brand Name zhisheng

Model Number ZSZV-3300

Dimension(L*W*H) 592x592x292

Weight 6kg

Certification ISO 9001

Warranty NONE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Plastic frame V bank medium filter
1 Efficiency:F6-F9
2.Large airlow
3.Frame:plastic
4. Media:fiberglass

Plastic frame V bank medium filter

Features:

Product type	Plastic frame V bank medium filter
Efficiency	F6-F9 (EN799)
Media	Mircro glass fiber or PP
Separator	hot-melt
Frame	ABS plastic
Sealant	Ployurethane
Initial pressure drop	170 pa (0.68 WG)
Final pressure drop	600 pa
Operating temperature	80 ºC

Common applications:

It is applied to large air flow ventilation system, filtration system of Pharmaceutical, food, hospitals, clean room, and so on.

It can be used as terminal-filtration of medium and high efficiency filtration system or pre-filtration of super-efficient filtration system

SIZE AND SPECIFICATION

Model	Dimensions(mm) WxHxD	Rated air flow (m³/h)	Initial resistance (Pa)	Efficiency (EN1822)	Frame	Media
ZSZV-3300	592x592x292	3300	≤120 (Media: PP)) ≤220 (Media:fiberglass)	F7-H13	Plastic/ galvanized sheet	PP or Fiberglass
ZSZV-1600	592x292x292	1600
ZSZV-3000	592x490x292	3000
ZSZV-1600-2	592x287x292	1600
ZSZV-800	287x287x292	800
ZSGV-3600	610x610x292	3600
ZSGV-1800	610x305x292	1800
