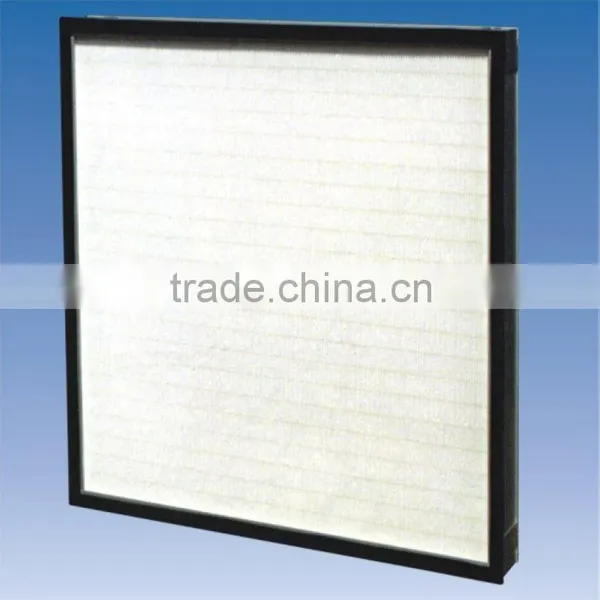

Super-low-resistance mini-pleat hepa air filter for clean room

Specifications

Aif filter:
1)high efficiency,large dust capacity.
2)low pressure drops
3) low resistance
4)medium:superfine fiberglass

Super-low-resistance air filter without baffle plateadopts superfine glass fiber paper as filter material, hot melt adhesive as baffle to be assembled with metal-made outer frame.

It is especiallly suitable for electronics, precision machinery, medical care and fine chemistry industries where super clean areas are required.



Model	Outside dimensions(mm)	Rated air flow (m³/h)	Air flow rated(g)	Face velocity(m/s)	Initial resistance  (Pa)	Final resistance(Pa)	Efficiency
ZS-CD  6101	610x610x50	800	450	0.60	≤160	400	≥99.99%
ZS-CD  9151	915x610x50	1200	700	0.60
ZS-CD  6102	610x610x70	1000	650	0.75
ZS-CD  9152	915x610x70	1500	950	0.75
ZS-CD  6103	610x610x90	1300	800	0.97
ZS-CD  910	910x610x90	1900	200	0.97
ZS-CD  1220	1220x610 x90	2600	1600	0.97

Beside above size, we can offer special requirement for the filters as per our clients
