Help Center3V-bank Mini-pleat HEPA Air Filter
Related Products
-
AAF Astrocel II HEPA Panel Filter H14US$ 22.72 - 189.5MOQ: 100 Pieces -
Cleanroom HEPA Filter 1220x610x69mmUS$ 22.72 - 189.5MOQ: 100 Pieces
-
Cleanroom Panel Filter H14US$ 22.72 - 189.5MOQ: 100 Pieces
-
Cleanroom Air FilterUS$ 28.98 - 148.88MOQ: 50 Pieces
-
Cleanroom HEPA Filter H14US$ 28.98 - 148.88MOQ: 50 Pieces
Specifications
V-bank mini-pleat HEPA air filter1.Efficiency:F7,F8,F9,H13
2.Large airlow
3.Frame: plastic or galvanized sheet
4.Media:PP
V-bank hepa filter,V-type HEPA filter, AHU filter, V shape filter

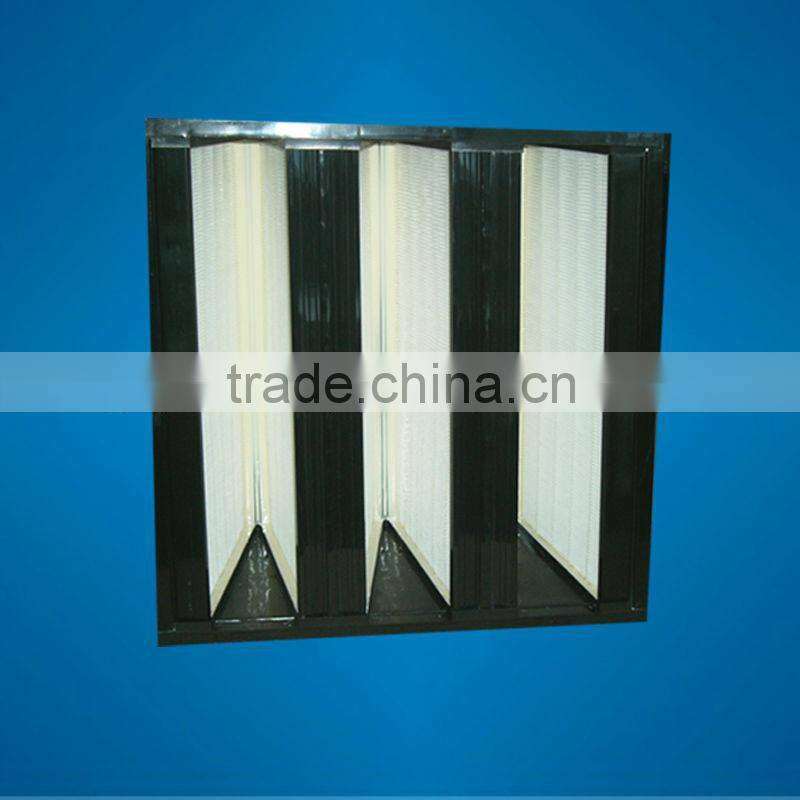

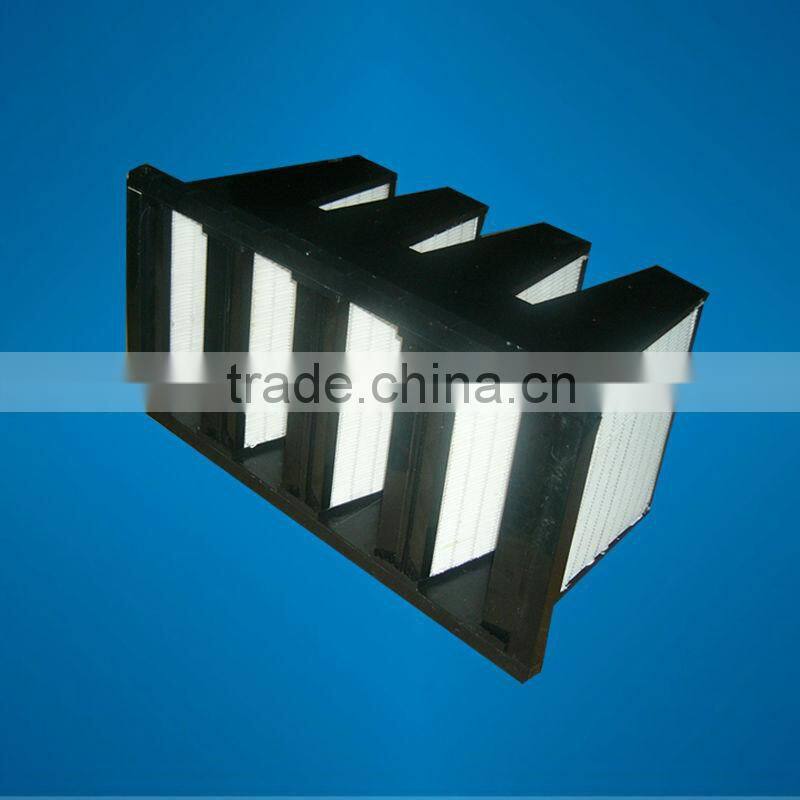

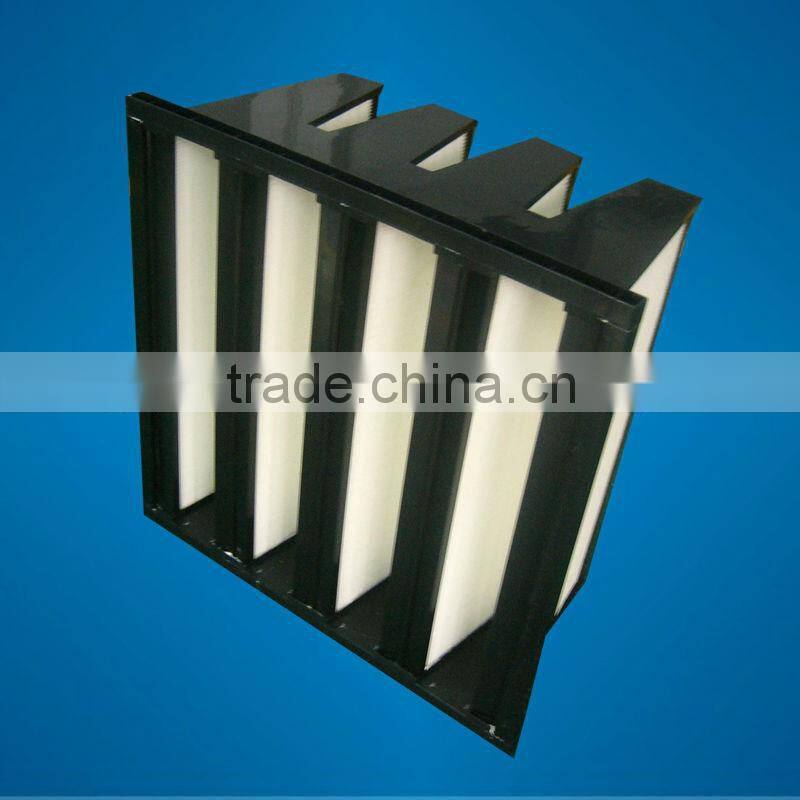

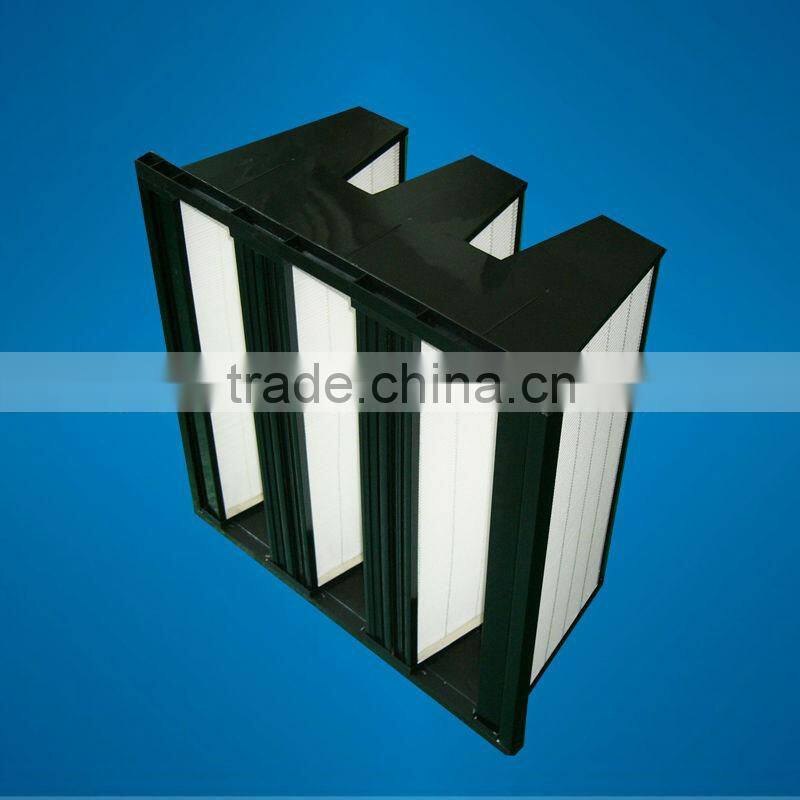

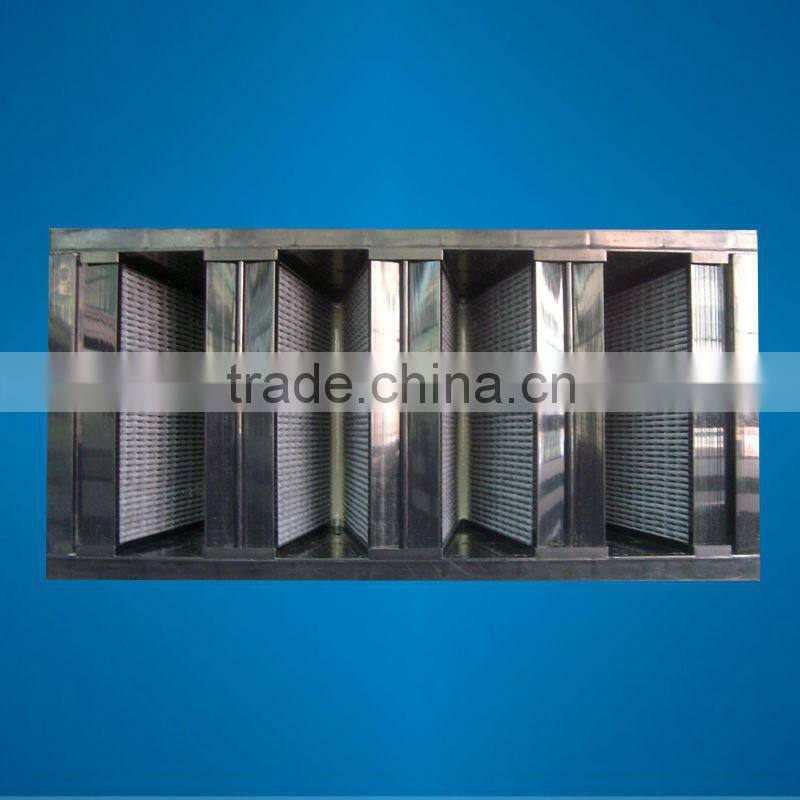

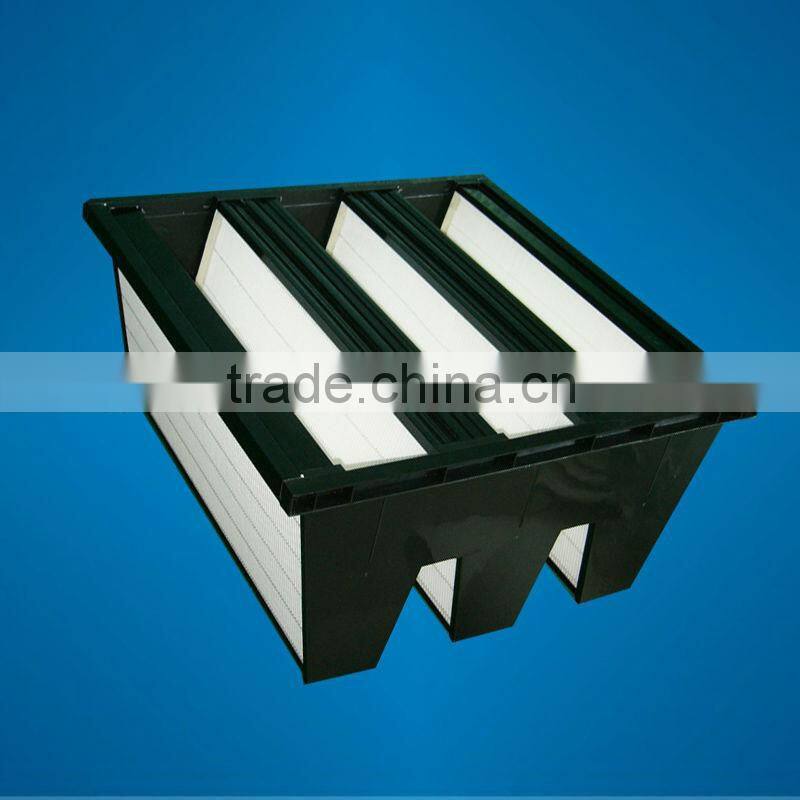

V-bank mini-pleat HEPA air filter
- Application: This type of air filter is used in the large air flow systems of medical, foodstuff, hosptial, dust proof room etc, the filter can be used as the end filtering for HEPA systems or front-end filtering for the UH systems.
- filter material: super-fine polypropylene fiber or glass fiber
- outer frame: plastic , galvanization-steel plate
- saralation: hot melt glue
- seal glue: polyurethane
Common applications:
It is applied to large air flow ventilation system, filtration system of Pharmaceutical, food, hospitals, clean room, and so on.
It can be used as terminal-filtration of medium and high efficiency filtration system or pre-filtration of super-efficient filtration system
Features:
It is a kind of deep loading high efficiency filter, suitable for permanent or impermanent airflow system
It's constructed to V-type by multiple mini-pleat media, installed in galvanized box or ABS plastic box
Compared with the common filters, it ideally enlarges the filter area, ensuring low media damage and low energy consumption to save cost in the present installation system
SIZE AND SPECIFICATION
Model |
outside dimensions (mm) |
Rated air flow (m³/h) |
Initial resistance (Pa) |
Efficiency |
ZSZV-3300 |
592 x 592 x 295 |
3300 |
≤120(F7) |
80~85% F7 90~95% F8 95~99% F9 |
ZSZV-1800 |
592 x 292 x295 |
1600 |
||
ZSGV-3600 |
610 x 610 x 292 |
3600 |
≤220 |
H10 H11 H13 |
ZSGV-1800 |
610 x 305 x 292 |
1800 |
Offering special requirment for the filters as per our client's
