Specifications
Cleanroom panel filter H141.Media:glassfiber
2.Frame:Aluminum profile
3.Efficiency:99.999%
4. Low pressure drop

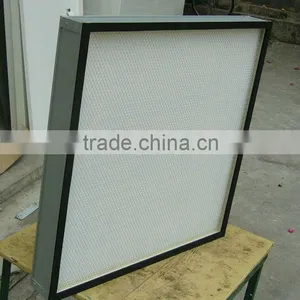

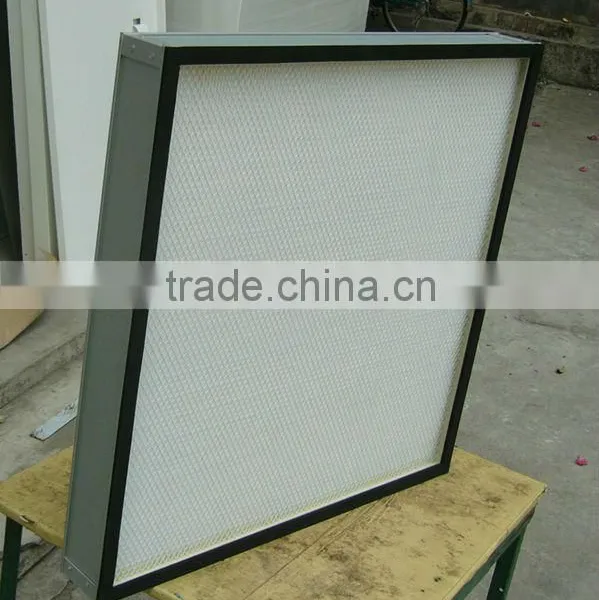

Cleanroom panel filter H14
ISO 9001 Certification
Features:
1.air filterof low initial resitance
2.large dust holding capacity
3.filter economical,long serice life
4.cheap
Description:
Mini-pleat air filters are mainly used to filtrate the suspended particles in the air with the diameter of 0.3um and below and used for the terminal filtration of all kinds of filtration systems.
Application:
Mini-pleat air filters are extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron, semiconductor, precision mechanism, pharmacy, hospital and food, etc., which required relatively high cleanliness factors.
Material and operating conditions:
External frame |
Aluminum |
Sealant |
Polyurethane |
Separator |
Hot-melt |
Filter media |
fiberglass |
Maximum operating temperature |
80°C |
Maximum operating humidity |
80% |
Standard size and specification:
Model |
Outside dimensions(mm) |
Rated air flow (m³/h) |
Initial resistance (Pa) |
Efficiency(%) |
ZS-GW3051 |
305x305x50 |
180 |
≤220 |
≥99.999 |
ZS-GW3052 |
305x305x69 |
250 |
||
ZS-GW6101 |
610x610x50 |
700 |
||
ZS-GW6102 |
610x610x69 |
100 |
||
ZS-GW9151 |
915x610x50 |
1100 |
||
ZS-GW9152 |
915x610x69 |
1500 |
||
ZS-GW1200 |
1220x610x69 |
2000 |
||
ZS-GW3052 |
305x305x80 |
300 |
||
ZS-GW6102 |
610x610x80 |
1300 |
||
ZS-GW9153 |
915x610x80 |
1900 |
||
ZS-GW9154 |
915x610x90 |
1900 |
