Specifications
Cleanroom air filter1) High capacity dust collect
2) Efficiency: 99.99% at 0.3um
3) Frame:aluminum
4)Separator:paper/AL
ZS-GB High capacity HEPA /HEPA FILTER
Air separator filter

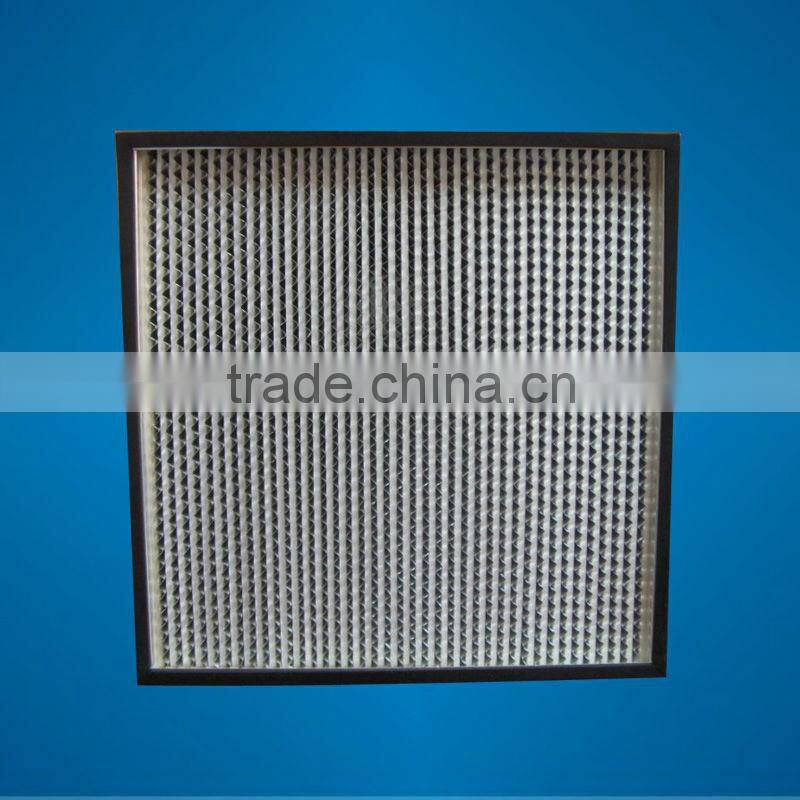

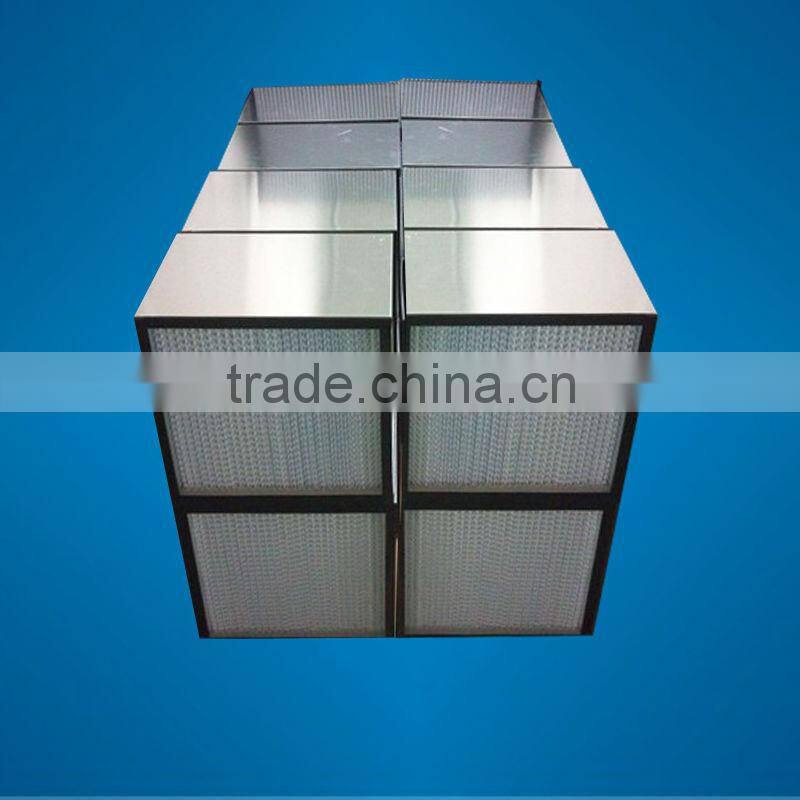

Cleanroom air filter
Description:
High capacity HEPA filters are mainly used to filtrate the suspended particles in the air with the diameter of 0.3um and below and used for the terminal filtration of all kinds of filtration system.
Applications:
HEPA filters are extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron, semiconductor, precision mechanism, pharmacy, hospital and food, etc., which require relatively high cleanliness factors. It is suitable to filtrate for clean room and clean factory workshop with dust particle diameter less then 0.3-0.5um.
Material and operating conditions:
External frame |
Aluminum Alloy/GI/Stainless steel |
Sealant |
Polyurethane |
Separator |
Clapboard or aluminum foil |
Filter media |
Glass fiber |
Maximum operating temperature |
80°C |
Maximum operating humidity |
100% |
Efficiency |
95%-99.99% |
Standard Size and Specification:
| Model | Outside dimensions(mm) | Rated air flow (m/h) | Initial resistance (Pa) | Efficiency EN799 | |
| ZS-GB320 | 320x320x220 | 400 | ≤120pa(PP) ≤220pa (fiberglass) | F9-H13 | |
| ZS-GB350 | 350x350x220 | 500 | |||
| ZS-GB484 | 484x484x220 | 1000 | |||
| ZS-GB610 | 610x610x150 | ||||
| ZS-GB630 | 630x630x220 | 1500 | |||
| ZS-GB726 | 726x484x220 | ||||
| ZS-GB915 | 915x610x150 | ||||
| ZS-GB968 | 968x484x220 | 2000 | |||
| ZS-GB1220 | 1220x610x150 | ||||
| ZS-GB1220 | 1220x630x220 | 3000 | |||
| ZS-YGX-484 | 484x484x220 | 1000 | |||
| ZS-YGX-295 | 295x595x292 | 1600 | |||
| ZS-YGX-595 | 595x595x292 | 3200 | |||
| ZS-YGX-610 | 610x610x150 | 1000 | |||
| ZS-YGX-630 | 630x630x220 | 1500 | |||
| ZS-YGX-1220 | 1220x610x150 | 2000 | |||
