Home > Products > Vulcanizing Press > Rubber tile vulcanizing machine/Platen vulcanizing press
Rubber tile vulcanizing machine/Platen vulcanizing press
- 30 Piece / Pieces per Month
- Qingdao
- T/T
Product Details
Condition: | New | Type: | Vulcanizer | Place of Origin: | Shandong, China |
Brand Name: | BOJIA | Model Number: | XQL-50T(500*500) | Voltage: | 380V |
Power(W): | 2.2KW | Dimension(L*W*H): | 700*1470*500 | Weight: | 1500KGS |
Certification: | ISO,CE, SGS | Warranty: | Two years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

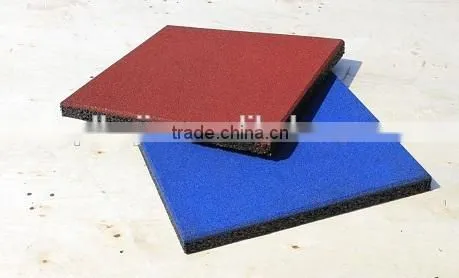

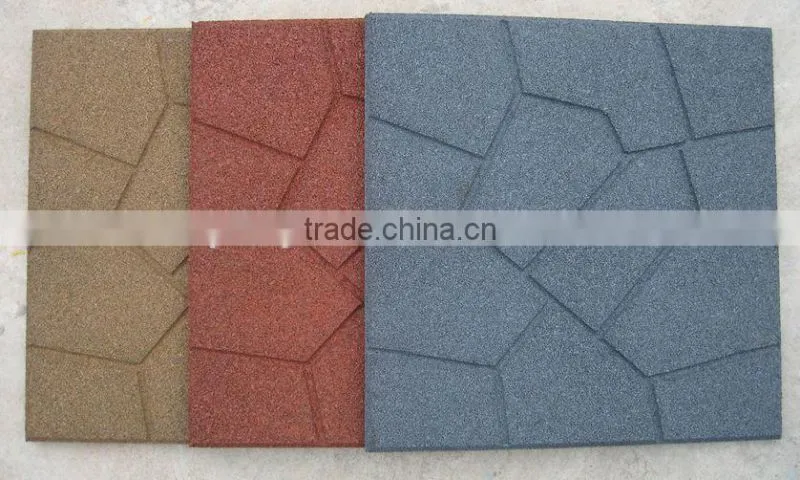

Rubber brick molding machine rubber tile making machine 2 layers
l Usage
The hydraulic press/conveyor belt vulcanizer/plate vulcanizing press is used to vulcanize common rubber conveyor belt, nylon conveyor belt, PVG conveyor belt, steel wire core conveyor belt fabric core parallel adhesive tape.
l About the machine
1.PLC is used in the control system of mainframe that can meet multi-program automatic control,and platen temperature can be measured and adjusted automatically during the course of curing.
2.This machine is equipped with high and low pressure oil pumps directly driven by the motor.
3.The motor is started by magnetic starter. The thermal relay installed inside is used as overload protector. When the motor is overloaded or in fault, the machine will stop automatically.
l Main technical parameters
Item Model | 50T |
Nominal clamping force | 500KN |
Max working liquid pressure | 16 |
Hot plate specification | 500*500 |
Hot plate spacing | 125 |
Working layer number | 2 |
Plunger stroke | 250 |
Heating method | Steam heating/Electric heating |
Unit area pressure | 2.0 |
Motor power | 2.2KW |
Overall dimensions | 700*1470*500 |
Weight | 1500 |
Note | Colum type |
Qingdao Bojia Machinery Manufacturing CO., LTD is a professional machinery manufacturer, the company has a variety of CNC precision machining equipment, machining force; independent professional rubber machinery design and development team, and with the long history of China's most professional four one of the big rubber industry institutions "Qingdao Institute of Chemical Technology" long-term aspects of rubber technology, formula, machinery and equipment for technical, practical exchanges and cooperation; Qingdao Bojia Machinery Manufacturing CO., LTD can proportioning design according to technical parameters provided by the customer and customers' demand. The company focused on the development and manufacture of automated equipment, capable of unmanned production line design, improve labor productivity, reduce labor intensity, stable product quality.
