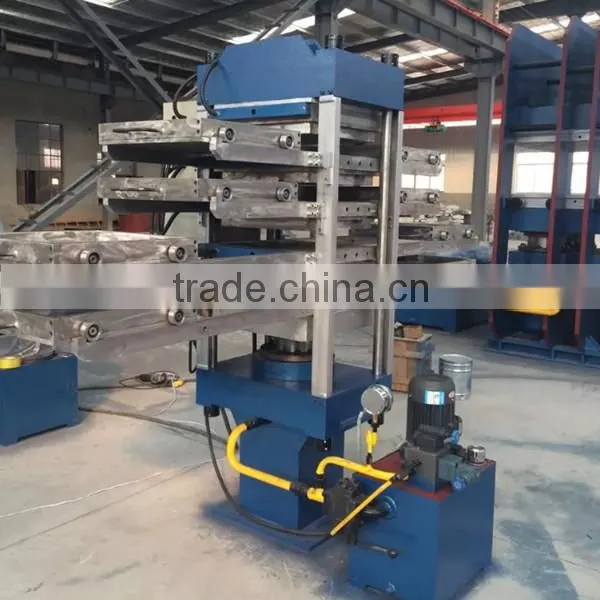

Help CenterVulcanizing Machine for Making Rubber Floor Tile Production Equipment
Related Products
-
Qingdao Truck Tyre Vulcanizing Machine With Circle Shape/customized Square ShapeUS$ 1,000 - 12,000MOQ: 1 Set -
Qingdao Hot-sale New Condition Rubber Tyre Vulcanizing MachineUS$ 1,000 - 12,000MOQ: 1 Set
-
New Condition Rubber Vulcanizing Machine With Shape Customized Made in ChinaUS$ 1,000 - 12,000MOQ: 1 Set
-
China Rubber Floor Making Machine Manufacturers Selling a Variety of PurposesUS$ 7,000 - 20,000MOQ: 1 Set
-
Hot-sale New Condition Rubber Mat Manufacturing Machine Floor Tile Vulcanizing Machines and MixerUS$ 1,000 - 12,000MOQ: 1 Set
1.Usage
Mainly used to vulcanize the rubber products, such as sealing ring,shock pad,shoe sole,sealing strips,rubber powder floor tile and floor,auto spare parts,mechanical equipment rubber parts and other rubber parts;the material contains:Silicone rubber,Fluororubber,Natural rubber,Regenerated synthetic rubber and rubber powder,etc.
2.Performance Feather
Using PC or manual control,reliable performance,high degree of automation,avoid accidents caused by wrong operation.
Process lock,the operator cannot be changed without authorization,to guarantee the quality of products to the greatest extent,is set to automatically open mould in advance,automatic vent,automatic filling pressure,automatically timing,automatically fall mold,and other functions.
The electric heating type adopts digital display(pointer)temperature control,temperature control and display the heating plate.There are manual,automatic,electric three modes for your choice.
3.Product Introduction
a.Cylinder and plunger use high wear-resistant QT cast iron through grinding for fine finishing,and through high pressure and hydraulic resistance against permeation experiment to prevent the machine defects caused by the cylinder and plunger oil linkage.
b.Hot plate is made of 45# high quality steel plate for finish machining.Both surface of hot plate are all after surface grinding process,to ensure the depth of parallelism of the two surface which can ensure the uniformity of thickness evenly to the greatest extent.
c.Thermal baffle adopts new type thermal insulation material whose compression resistance is not lower than 400kg/cm²,the thermal conductivity is 0.18Kal/(m*h*℃),the temperature resistance is 220℃-250℃ and the thickness is 20mm,in order to solve the issue of local compression deformation and poor thermal insulation due to the use of rubber asbestos.
4.Technical Parameter
Model |
315T |
250T |
200T |
|
Nominal clamping force(KN) |
3150 |
2500 |
2000 |
|
Max working-oil pressure(KN) |
16 |
16 |
16 |
|
Hot plate size(mm) |
1200*1200 |
1000*1000 |
900*900 |
|
Hot plate space(mm) |
200 |
200 |
200 |
|
Working layers |
1 |
1 |
1 |
|
Plunger stroke(mm) |
300 |
300 |
300 |
|
Heating mode |
Steam/Electric heating |
Steam/Electric heating |
Steam/Electric heating |
|
Hot plate pressure per unit area(KN) |
2.2 |
2.5 |
2.5 |
|
Motor power(KW) |
5.5 |
5.5 |
4 |
|
Dimension(L*W*H)(mm) |
2980*1300*3650 |
2980*1150*3634 |
2600*1000*3520 |
|
Weight(KG) |
7820 |
7000 |
6200 |
|
Note |
Plate frame type |
Plate frame type |
Plate frame type |
|
We can design and manufacture standard and non-standard special equipment according to your requirements.
5.Conditions
A.The guarantee period is one year.
B.Terms of payment:the down payment deposit is 30%,and the rest should be paid before shipment.
C.Delivery time:within 35 days after receiving the deposit.
D.Voltage:380V/50HZ(or according to your requirement)
E.Packaging:Standard export wooden packaging container(or as your requirement)

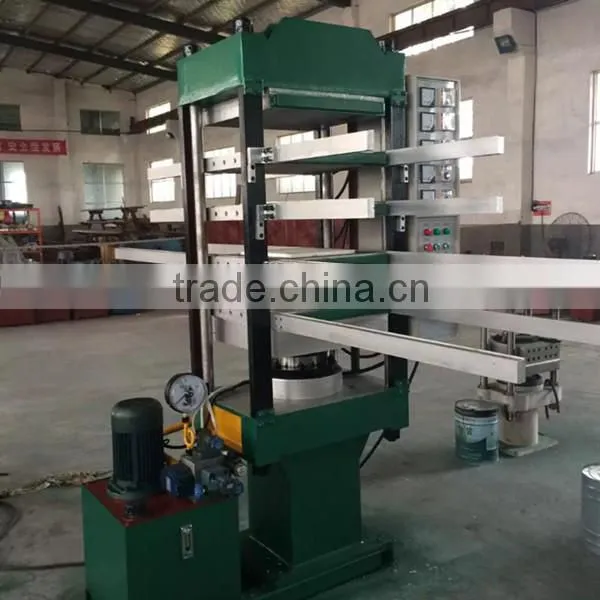

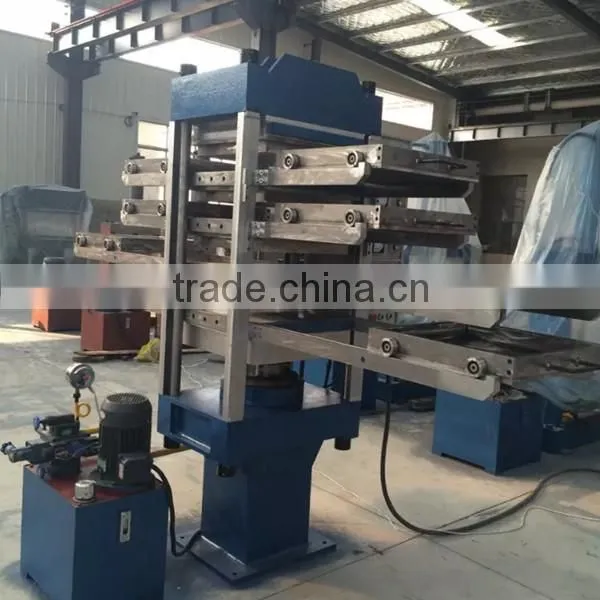

6.picture show
Packing details
Standard export wooden packaging 20G/40G container or according to your request.
Delivery time and Shipping
Within 50 working days after receiving the deposit.

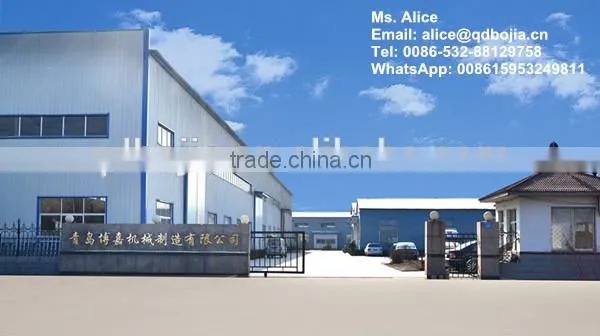

Qingdao Bojia Machinery Manufacturing Co.,Ltd is one professional machinery manufacturer. Our main products are:Conveying belt molding machine series,Batch off cooling machine series,Cushion cloth renovating machine series,open mixing mill series,Vulcanizing press series,Rubber cutting machine series,Rubber slitting machine series,Logitudinal cutting machine series,Conveyor belt machine series,Other rubber machines,Design and manufacturing of automatic production line.
Bojia machinery company always pursue”quality first,customer first”principle to offer high-quality products and excellent service,welcome new and old customers to visit our company.
1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Huangdao,Qingdao, China. You can fly to Qingdao Liuting airport directly.
All customers are warmly welcome to visit our factory!
3. Q: How does your factory do regarding quality control?
A: "Quality is priority. BOJIA people always attach great importance to quality controlling from the
beginning to end.
