Home > Products > Vulcanizing Press > Hydraulic Rubber vulcanized press machine / Plastic molding press machine
Hydraulic Rubber vulcanized press machine / Plastic molding press machine
- 15 Set / Sets per Month
- Qingdao Port
- T/T
Product Details
Condition: | New | Type: | Vulcanizer | Place of Origin: | Shandong, China |
Brand Name: | Bojia | Model Number: | XLB series | Voltage: | 380V/440V or as your requirement |
Dimension(L*W*H): | As your requirement | Weight: | 1t~7.8t | Certification: | CE&SGS&ISO |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Plastic molding press machine
1.Usage
Mainly used to vulcanize the rubber products, such as sealing ring,shock pad,shoe sole,sealing strips,rubber powder floor tile and floor,auto spare parts,mechanical equipment rubber parts and other rubber parts;the material contains:Silicone rubber,Fluororubber,Natural rubber,Regenerated synthetic rubber and rubber powder,etc.
2.Performance Feather
Using PC or manual control,reliable performance,high degree of automation,avoid accidents caused by wrong operation.
Process lock,the operator cannot be changed without authorization,to guarantee the quality of products to the greatest extent,is set to automatically open mould in advance,automatic vent,automatic filling pressure,automatically timing,automatically fall mold,and other functions.
The electric heating type adopts digital display(pointer)temperature control,temperature control and display the heating plate.There are manual,automatic,electric three modes for your choice.
3.Product Introduction
a.Cylinder and plunger use high wear-resistant QT cast iron through grinding for fine finishing,and through high pressure and hydraulic resistance against permeation experiment to prevent the machine defects caused by the cylinder and plunger oil linkage.
b.Hot plate is made of 45# high quality steel plate for finish machining.Both surface of hot plate are all after surface grinding process,to ensure the depth of parallelism of the two surface which can ensure the uniformity of thickness evenly to the greatest extent.
c.Thermal baffle adopts new type thermal insulation material whose compression resistance is not lower than 400kg/cm²,the thermal conductivity is 0.18Kal/(m*h*℃),the temperature resistance is 220℃-250℃ and the thickness is 20mm,in order to solve the issue of local compression deformation and poor thermal insulation due to the use of rubber asbestos.
4.Technical Parameter
Model | 315T | 250T | 200T | 160T | 100T | 50T | 25T | |
Nominal clamping force(KN) | 3150 | 2500 | 2000 | 1600 | 1000 | 500 | 250 | |
Max working-oil pressure(KN) | 16 | 16 | 16 | 16 | 16 | 16 | 16 | |
Hot plate size(mm) | 1200*1200 | 1000*1000 | 900*900 | 7500*850 | 600*600 | 400*400 | 350*350 | |
Hot plate space(mm) | 200 | 200 | 200 | 125 | 125 | 125 | 125 | |
Working layers | 1 | 1 | 1 | 2 | 2 | 2 | 2 | |
Plunger stroke(mm) | 300 | 300 | 300 | 300 | 300 | 250 | 250 | |
Heating mode | Steam/Electric heating | Steam/Electric heating | Steam/Electric heating | Steam/Electric heating | Steam/Electric heating | Steam/Electric heating | Steam/Electric heating | |
Hot plate pressure per unit area(KN) | 2.2 | 2.5 | 2.5 | 2.5 | 2.8 | 3.12 | 2.04 | |
Motor power(KW) | 5.5 | 5.5 | 4 | 3 | 3 | 2.2 | 2.2 | |
Dimension(L*W*H)(mm) | 2980*1300*3650 | 2980*1150*3634 | 2600*1000*3520 | 2600*1600*2523 | 2070*1050*2230 | 640*1470*400 | 570*1450*350 | |
Weight(KG) | 7820 | 7000 | 6200 | 4811 | 1900 | 1300 | 1000 | |
Price of FOB | Manual | 10,406$ | 8,455$ | 7,805$ | 6,179$ | 3,902$ | 2,195$ | 2,113$ |
PLC | 12,032$ | 10,081$ | 9,268$ | 7,317$ | 5,041$ | 3,008$ | 2,683$ | |
Note | Plate frame type | Plate frame type | Plate frame type | Column type | Column type | Column type | Column type |
We can design and manufacture standard and non-standard special equipment according to your requirements.
5.Conditions
A.The guarantee period is one year.
B.Terms of payment:the down payment deposit is 30%,and the rest should be paid before shipment.
C.Delivery time:within 35 days after receiving the deposit.
D.Voltage:380V/50HZ(or according to your requirement)
E.Packaging:Standard export wooden packaging container(or as your requirement)

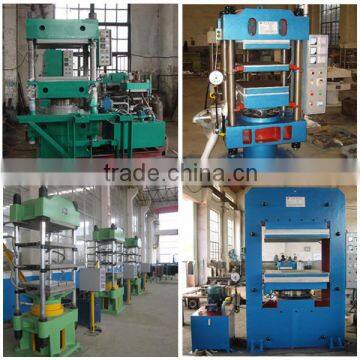

6.Picture Display
XLB25T(350*350),50T(400*400) Plate Vulcanizing Machine
XLB100T(600*600) Plate Vulcanizing Machine
XLB-250T(1000*1000) Plate Vulcanizing Machine
XLB-315T(1200*1200) Plate Vulcanizing Machine
7.Our Service
- The guarantee period is one year;
- 24 hours technical support;
- Offer lifetime service and spare parts;
- Technique training is free of charge
8.Our advantages
- We are very near from Qingdao Port and the transportation cost can be greatly reduced.
- We can design and manufacture standard and non-standard machinery according to your demand.
- We have our own factory and you can visit our factory at any time.
- Our quotes are vrey objective and have no price difference.
9.Our company
Qingdao Bojia Machinery Manufacturing Co.,Ltd is one professional machinery manufacturer. Our company have one good and high quality design and manufacturing technology development group,often communicate with the customers and technology authority departments of rubber industry,constantly to improve and update our products which can meet the requirements of customers:Our company guarantee to provide you excellent pre-market sale and after sale service,timely technology information consulting,accessories and consumable parts supply etc,also can design and manufacture various non-standard products according to users requirements.
Our main products are:Conveying belt molding machine series:Batch off cooling machine series:Cushion cloth renovating machine series:open mixing mill series:Vulcanizing press series:Rubber cutting machine series:Rubber slitting machine series:Logitudinal cutting machine series:Conveyor belt machine series:Other rubber machines:Design and manufacturing of automatic production line.
Bojia machinery company always pursue”quality first,customer first”principle to offer high-quality products and excellent service,welcome new and old customers to visit our company.
If you have any questions,please contact me and welcome to visit our factory.
Telephone:185 6191 1597;
Skype:live:alice_3407
