Tire Strip Cutting Machine / Tire Strip Cutter

Tire Strip Cutting Machine / Tire Strip Cutter

l Usage

Cutting large rubber sheets into narrow pcs for using of next process.

l Summary

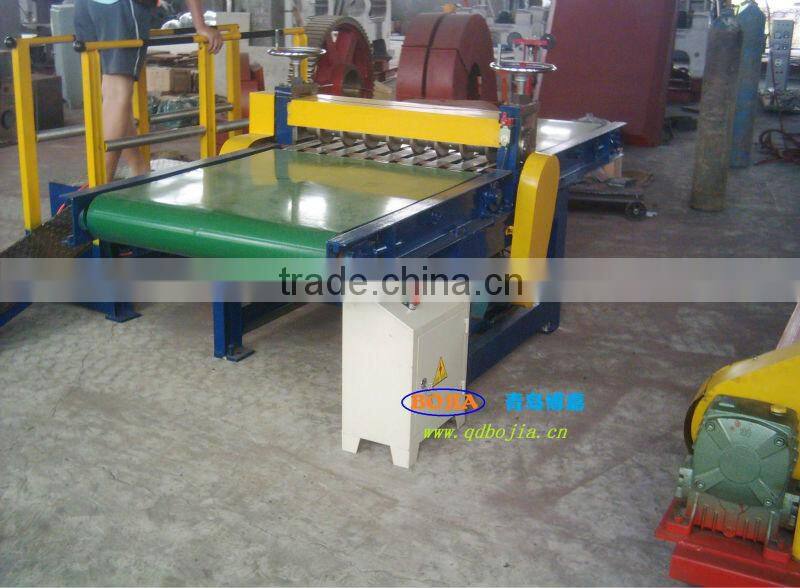

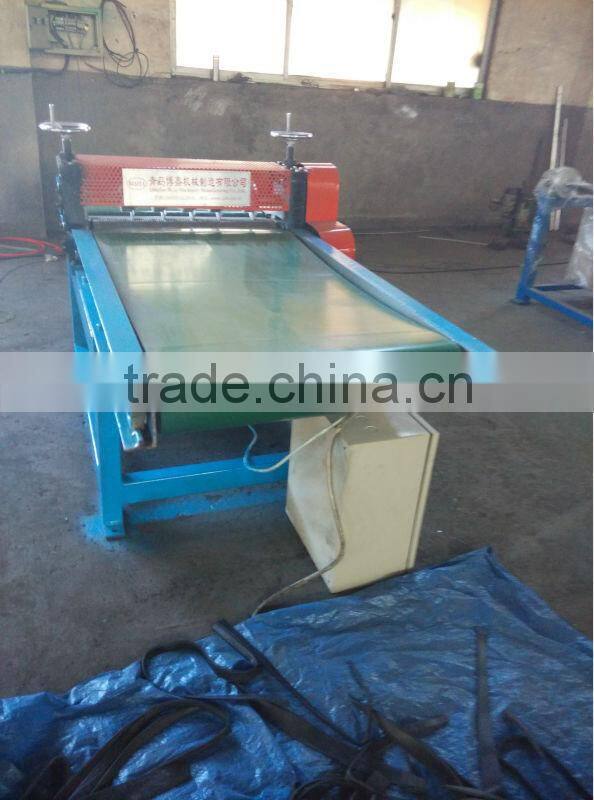

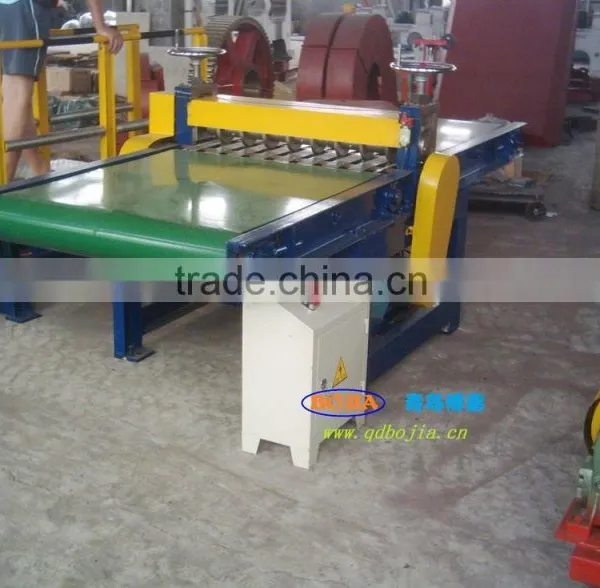

Rubber slitting machine mainly composed of front and back conveyor belt device, up and down cutting knife device and transmission device etc. Rubber transferred by the front conveyor belt into cutting knife device, and cutting rubber received and transferred by back conveyor belt to material containing box for next process.

l Main technical parameters

1. Maximum width of rubber:800mm;

2. Maximum cutting rubber strips:8 stripS(18 pieces of knife, up and down knife);

3. Minimum width of rubber slice: 100 mm; Maximum width of rubber slice: 190 mm

4. Cutting speed: 15 m/min; (frequency and speed control)

5. Maximum cutting thickness 14 mm;

6. Manual adjustment of leading screw to control up and down cutter location; Adjusting the cutter distance to adjust width of cutting strip; The wear blade can be reusing after repairing by grinding machine.

7. The machine adopts special cutting technology which can assure rubber cutting integrity and no adhesion

8. Front and back adopting no jointing circular conveyor belt to transmit rubber with guiding bar for prevention of running deviation.

9. Height of Conveying bed body: 800 mm.

10. Weight: About 550KGS

11. Dimensions: 2800*1200*1200mm

l About us

 Our main products are:Conveying belt molding machine series:Batch off cooling machine series:Cushion cloth renovating machine series:open mixing mill series:Vulcanizing press series:Rubber cutting machine series:Rubber slitting machine series:Logitudinal cutting machine series:Conveyor belt machine series:Other rubber machines:Design and manufacturing of automatic production line.

  Bojia machinery company always pursue“quality first,customer first”principle to offer high-quality products and excellent service,welcome new and old customers to visit our company.

l Picture show
