China Suplier YONGBANG Air-Compressor Parts YB-FLH 1~500Nm3/min Low Power Consumption Parts Industrial Water Air Cooler
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YONGBANG
Model Number:
YB-FLH
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 Factory Price YONGBANG YHP Air Purification Equipment Nitrogen Hydrogen Air PurifierNegotiableMOQ: 1 Set -
2015 Factroy Price YONGBANG Gas Generation Equipment YCP Carbon Type Nitrogen Air PurifierNegotiableMOQ: 1 Set
-
2015 Good Quality YONGBANG Gas Generation Equipment YCP Carbon Type Nitrogen Air PurifierNegotiableMOQ: 1 Set
-
2015 Good Quality YONGBANG Gas Generation Equipment YCP Nitrogen Carbon Supported Air PurifierNegotiableMOQ: 1 Set
-
2015 Factory Price Gas Generation Equipment YONGBANG Air Purification Equipment YCP Nitrogen Carbon Supported Air PurifierNegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
YONGBANG
Model Number
YB-FLH
Type
Other, Air Cooler
Product Description

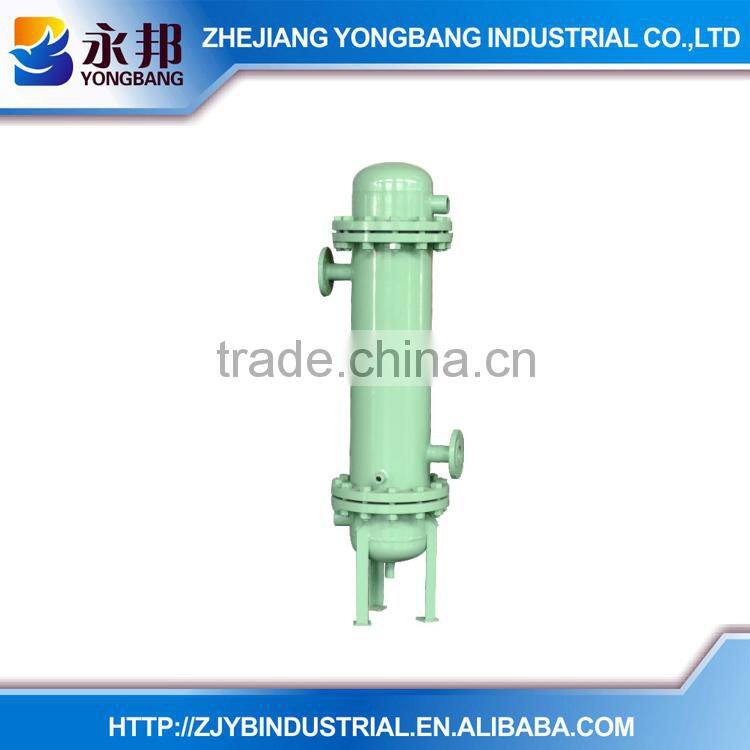

1.Pictures of
Low power Consumption Parts Industrial Water Air Cooler
2.Chat Flow of Industrial PSA Oxygen Generator
3. Principle of operation of
Low power Consumption Parts Industrial Water Air Cooler
The equipment choose the double metal finned tube which is advanced in China aviation industry as condenser pipe.
It greatly improves the heat dissipation area in the same volume.
It has high cooling efficiency, and can adapt to many working conditions.
In a word, it is a desired cooling tool of compressed air.
4.Technical Data of
Low power Consumption Parts Industrial Water Air Cooler
- Air capacity:1~500Nm3/min
- Operating pressure: 0.6-0.8Mpa(According to the requirement to provide0.8-3.0Mpa)
- Cooling water temperature: ≤ 32° C
- Cooling water pressure: 0.2-0.4Mpa
- Inlet gas temperature: ≤ 180° C
- Outlet temperature: ≤ 42° C
- Pressure loss: ≤ 0.02Mpa

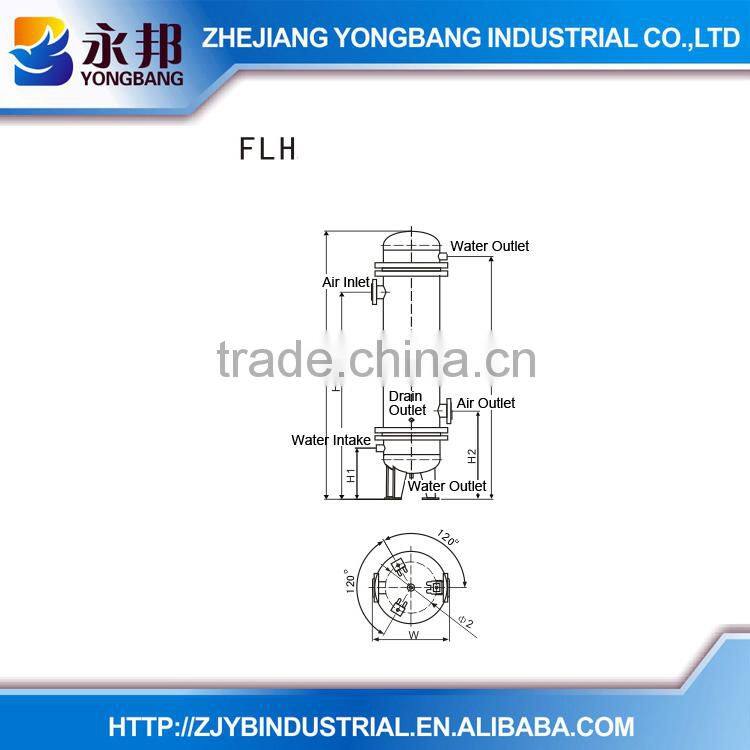

5.Technical Parameters of
Low power Consumption Parts Industrial Water Air Cooler
| Model | air Capacity | Water consumption | Air pipe diameter | Cooling water pipe diameter | Canister diameter | Total height | Net weight |
| NM3/Min | M3/h | MM | MM | MM | MM | KG | |
| ZLH-1 | 1.2 | 0.5 | DN25 | Rc1 | 89 | 1055 | 31 |
| FLH-3 | 3.6 | 1 | DN32 | Rc1'' | 108 | 1305 | 43 |
| FLH-6 | 6.8 | 1.5 | DN40 | Rc1'' | 159 | 1330 | 6805 |
| FLH-10 | 10.9 | 3 | DN50 | Rc1-1/2'' | 159 | 1780 | 85 |
| FLH-15 | 16 | 4.5 | DN65 | Rc2'' | 219 | 1657 | 139 |
| FLH-20 | 22 | 6 | DN65 | Rc2'' | 219 | 1657 | 143 |
| FLH-30 | 32 | 9 | DN80 | Rc2'' | 273 | 1663 | 199 |
| FLH-40 | 43.5 | 12 | DN100 | Rc2-1/2'' | 273 | 2023 | 232 |
| FLH-60 | 67 | 18 | DN125 | Rc2-1/2'' | 325 | 2087 | 315 |
| FLH-80 | 90 | 24 | DN125 | Rc2-1/2'' | 325 | 2287 | 339 |
| FLH-100 | 110 | 30 | DN150 | Rc3'' | 377 | 2413 | 475 |
| FLH-120 | 130 | 35 | DN150 | DN100 | 426 | 2520 | 449 |
| FLH-150 | 160 | 45 | DN200 | DN100 | 426 | 2620 | 510 |
| FLH-200 | 210 | 60 | DN200 | DN100 | 462 | 2845 | 645 |
| FLH-250 | 260 | 75 | DN250 | DN125 | 512 | 2910 | 808 |
| FLH-300 | 310 | 90 | DN300 | DN125 | 512 | 3210 | 882 |
