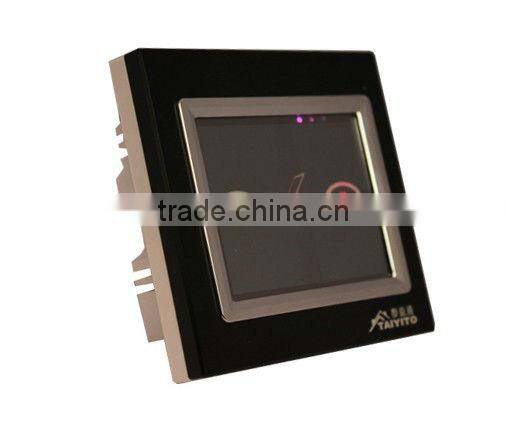

TDZ4464S Zigbee Touch Screen Window Opener Switch for Home Autoamtion
US$ 1 - 80
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
TAIYITO
Model Number:
TDZ4464S
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN/BEIJING/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TAIYITO Touch SwitchUS$ 10 - 40MOQ: 1 Piece -
Zigbee 3-ways Touch Screen Lamp/Appliance Switch for Home AutomationUS$ 1 - 80MOQ: 1 Piece
-
TDZ4401S Zigbee Touch Screen Dimmer Switch for Home AutomationUS$ 1 - 80MOQ: 1 Piece
-
TAIYITO Lamp/ApplianceTouch Screen Remote Control SwitchUS$ 25 - 30MOQ: 1 Piece
-
TAIYITO 220v Wireless Remote Control SwitchUS$ 10 - 12MOQ: 1 Piece
Place of Origin
Tianjin, China
Brand Name
TAIYITO
Model Number
TDZ4464S
Operating Temperature
-10---50C
Max. Current
300 Watt
Max. Voltage
95-240VAC
Specifications
TDZ4464S Zigbee Touch Screen Window Opener Switch-brushed mental 6 color
-2.4g signal
-95-240v
-CE
TDZ4464S Zigbee Touch Screen Window Opener Switch for home automation
Main used and control function:
It used in bidirectional ZIGBEE system, can receive the wireless 2.4G control signal and transmit related signal(such as: On and Off ). It is controlled product, TDZ4464S touch screen window opener switch connect with motor, by controlling the motor ’s positive rotation and reverse rotation to realized “ON” and “OFF” and other intelligent functions
The relative matching product:
1. It should work with the color Programmable Touchscreen Multi-Function Remote Controller(4.3 inches) , which can open or closed the window through the remote controller.
It work with TDW6406 color screen programmable wall mount centralized controller , which can open or closed the window through centralized & scene controller.
2. It work with the TDWZ6628 identify encrypted voice long-distance telephone remote controller, which can open or closed the window through the long-distance telephone controller
3. It combine with the TDWZ6617 long-distance network controller, which can open or closed the window through long-distance network controller.
It work with TDW6406 color screen programmable wall mount centralized controller , which can open or closed the window through centralized & scene controller.
2. It work with the TDWZ6628 identify encrypted voice long-distance telephone remote controller, which can open or closed the window through the long-distance telephone controller
3. It combine with the TDWZ6617 long-distance network controller, which can open or closed the window through long-distance network controller.
Insallation:
1. It was installed in the standard 86type junction box ((But the standard 86 type 86 -style junction box must have the null wire and the fire wire) which exist the circuit you want to control the window opener?
2. It normally install the left or right of the window, in order to power the window opener motor , and the standard 86 -style junction box (or touching-switch ) need to be reserved nearby the window, the standard 86-style junction box A which junct the window opener motor directly need reserve three wire from the roof down 20~30cm ; the standard 86 style junction box B which is as the local switch need reserve five wire( three wire for window opener motor and others for 220V power wire) from the ground 1.3~1.5m. The three wire is as the controlled wire junct between the standard 86 style junction box A and B. Actually the installation place also can change according to your demand..
2. It normally install the left or right of the window, in order to power the window opener motor , and the standard 86 -style junction box (or touching-switch ) need to be reserved nearby the window, the standard 86-style junction box A which junct the window opener motor directly need reserve three wire from the roof down 20~30cm ; the standard 86 style junction box B which is as the local switch need reserve five wire( three wire for window opener motor and others for 220V power wire) from the ground 1.3~1.5m. The three wire is as the controlled wire junct between the standard 86 style junction box A and B. Actually the installation place also can change according to your demand..
Function description:
1. You can use the remote controller to open/close the window which you put this kind of ouch screen switch in any direction at home, also can check the working status.
2. When you are on the way home, you can make a call firstly to close window in advance.
3. When you are in another province for business, you also can control the open and close of your windows by web controller.
4. This touch screen switch also can be controlled by Scene controller, for example, just press one scene key, you can open the TV, water heater, and close windows one by one.
6. Also have the timing “open” and “close” window control function.
7.“on” and “off” words on touching panel is transformed, it shows window ‘s working status.
2. When you are on the way home, you can make a call firstly to close window in advance.
3. When you are in another province for business, you also can control the open and close of your windows by web controller.
4. This touch screen switch also can be controlled by Scene controller, for example, just press one scene key, you can open the TV, water heater, and close windows one by one.
6. Also have the timing “open” and “close” window control function.
7.“on” and “off” words on touching panel is transformed, it shows window ‘s working status.
Feature:
1. Metal drawbench frame, Fashionable Texture, various color, individual design, and you can change the icon at random.
2. The design of colorful background prompt lights bring more the sense of the fashion, science and technology.
3. Ultra-high power window opener motor , its maximum power reach 300w. As long as you install the window opener touchscreen switch, the electric window opener can accept variety of smart controlling from the Zigbee system.
4. Easy installation , there is need to reserve extra one null wire and the fire wire in the standard 86type junction box.
5. Higher communication rate, more powerful network, bidirectional communication.
6. Wide voltage power supply mode, which can meet all of customer demand from the different country, different area
2. The design of colorful background prompt lights bring more the sense of the fashion, science and technology.
3. Ultra-high power window opener motor , its maximum power reach 300w. As long as you install the window opener touchscreen switch, the electric window opener can accept variety of smart controlling from the Zigbee system.
4. Easy installation , there is need to reserve extra one null wire and the fire wire in the standard 86type junction box.
5. Higher communication rate, more powerful network, bidirectional communication.
6. Wide voltage power supply mode, which can meet all of customer demand from the different country, different area
