TAIYITO 220v Wireless Remote Control Switch

TAIYITO 220v Wireless Remote Control Switch thumbnail-1
TAIYITO 220v Wireless Remote Control Switch photo-1
US$ 10 - 12 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TAIYITO
Model Number:
TDXE4203s
Use:
Universal
Contact Supplier Request Quote Chat Now
Tianjin Taiyito Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TAIYITO
Model Number TDXE4203s
Use Universal
Place of Origin Tianjin, China

Specifications

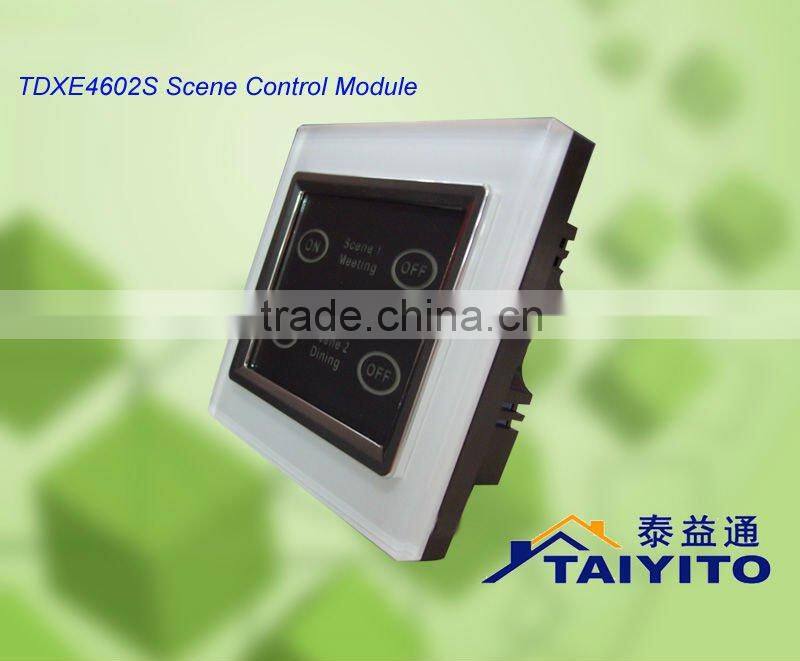

TAIYITO 220v wireless remote control switch
-costomized panel words
-Max load:1500W
-lamp wall switch
-CE





                              TAIYITO 220v wireless remote control switch



 Features:

l          Replace conventional switches , replacing mechanical buttons with touch screen , longer life.

l          LED backlight touch buttons for switch control,address code of lights is clear to see.

l          Assorted many colors available so that to personalized the product.Gorgeously appearance is right down your decoration.

l          The words displayed on the panel could be change according to customer’s require.

l          Bidirectional communication by power line in high speed with the feedback function

l          Can be installed in any 86 -style junction box , socket panel ; ultra-thin design .Dimensions : 86X86X39mm

l          Simple setup, six seconds to complete the study; Each scene could control 16pc light or appliance ON/OFF at the same,so that you could realize scene control.

Technical Specifications:

l          Rated voltage 220VAC ± 10%, 50Hz ;equipment load ≤ 1000W

l          static power ≤0.5W ;ambient temperature: -10~50°C



Main used and control function:
It used in bidirectional PLC system can receive the PLC control signal and transmit related signal.It is send local control signals of ON and OFF.It is controlled product, main used for big lamps more than 1000W, include of the big ceiling lamp, main lamp in the living room (for example a big ceiling lamp from upstairs to downstairs) etc.
Compatible with X10 protocol, accept  and transmit X10 signal.





Installation:
For the lamp which you want to control, only need to put the touch screen switch inside the standard 86 type switch box, the switch box should have the naught wire, if you don’t have the naught wire just put it on the lamp. You do not need any other switch panel any more..



It should work with the remote controller like TDXE6648+ 48key Multi-function LCD Remote Controller, TDXE6671 touch-screen colorful remote controller and TDXE6438+ Transmitter together to realize the remote control; if it work with telephone controller and web controller can realize the long distance control etc.





TAIYITO 220v wireless remote control switch
