7GX-6.2 MIHENG 9hp 4strokes Gasoline Outboard Engine

7GX-6.2 MIHENG 9hp 4strokes Gasoline Outboard Engine thumbnail-1
7GX-6.2 MIHENG 9hp 4strokes Gasoline Outboard Engine photo-1
Negotiable MOQ: 1 Carton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Fuel Type:
Gasoline
Contact Supplier Request Quote Chat Now
Chongqing Miheng Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHONGQING
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Engine 4 Stroke
Fuel Type Gasoline
Cylinders 1
Engine Position Outboard

Specifications

9hp 4stroke,electric start,shaft connection,gear oil for transmission lubrication,direct injection energy efficient.

Direct Injection, Energy Efficient

Owner of 7 national-level IPR .

 duct:

 7GX-6.2 MIHENG 9hp 4strokes gasoline outboard engine

 2.DEMO FIGURE

7GX-6.2 MIHENG 9hp 4strokes gasoline outboard engine

 3.Technical Specifications

MODELS

7GX-6.2 Gasoline Outboard Engine

ENGINE TYPE

SINGLE CYLINDER, HORIZONTAL TYPE, FOUR STROKE, AIR COOLED, OHV

Bore x Stroke (mm x mm)

80×60mm×mm

Displacement (L)

0.302L

Rated Speed of Output Shaft

1560r/min

Max.torque(N·m/rpm)

18.5N.m/2500r/min

 Fuel Consumption(g/kW·h)

≤395

Power

Rated Output  KW/Ps

6.2KW(8.4P)

Direction of Output Rotation

Anticlockwise (from the output side)

Valve Clearance (mm)

Intake valve :0.1-0.15mm  Exhaust valve: 0.15-0.20mm

Starting Way

Recoil Start/Electric Start

Fuel

Fuel Capacity(L)

4.6 L

 Mark

93#

Engine Lubrication

Method of Lubrication

 Pressure Splash Compound

Lubrication Oil

SAE10W-30, Level CC above

Lubrication Oil Capacity(L)

0.95L

Engine Size (LxWxH) (mm)

380×430×410

Engine Net Weight (Kg)

≤26Kg

Machinery Net Weight (Kg)

≤62Kg

 Speed of Impeller

1560r/min

Diameter of Impeller

360mm

Transmission Fluid

Middle Duty Industrial Gear Oil HL-20

Transmission Capacity

3L

Applicable Scope

6-8 Meters Ship

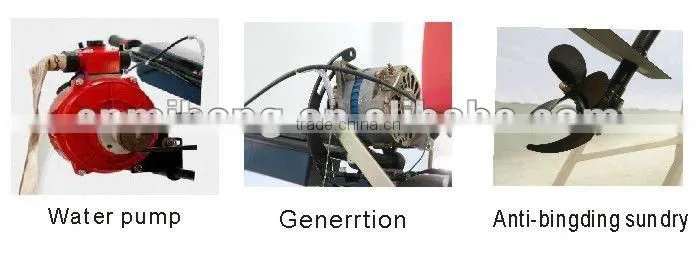

 4.Functions added



5.Product details



6.Modern workshop and new office.

7.Certificated



8.MIHENG outboard engine

9.Comparison between old and new type of outboard engines





10. Delivery

11.Made in china.
