Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Brick Making Machine > FL1-25 Semi-automatic Hydraulic Interlocking Manual Brick Making Machine/compressed Earth Block

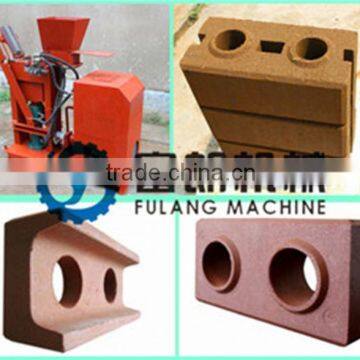

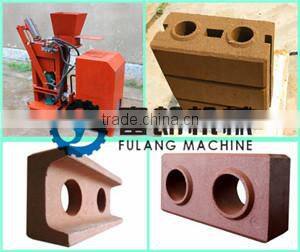

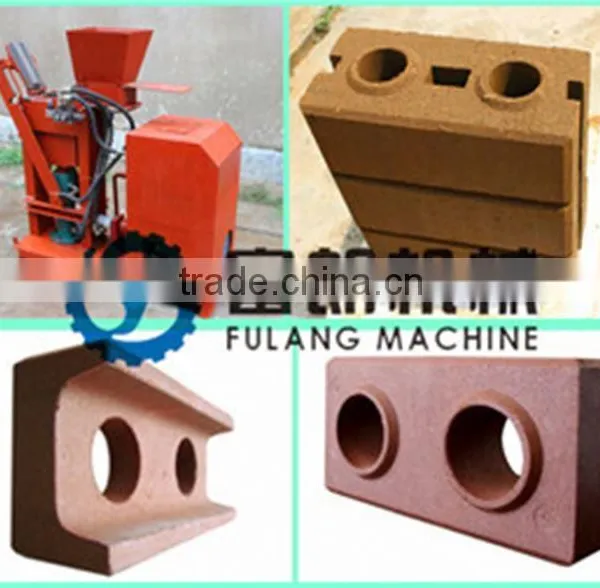

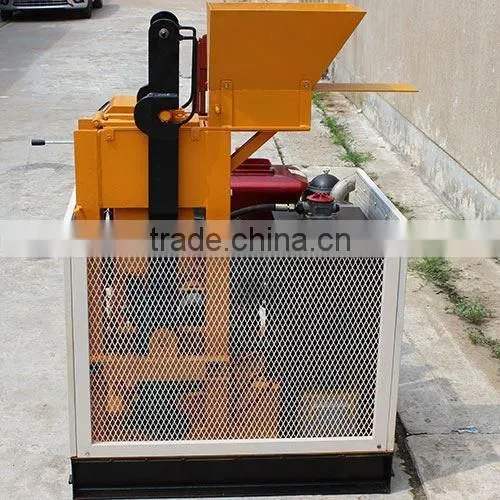

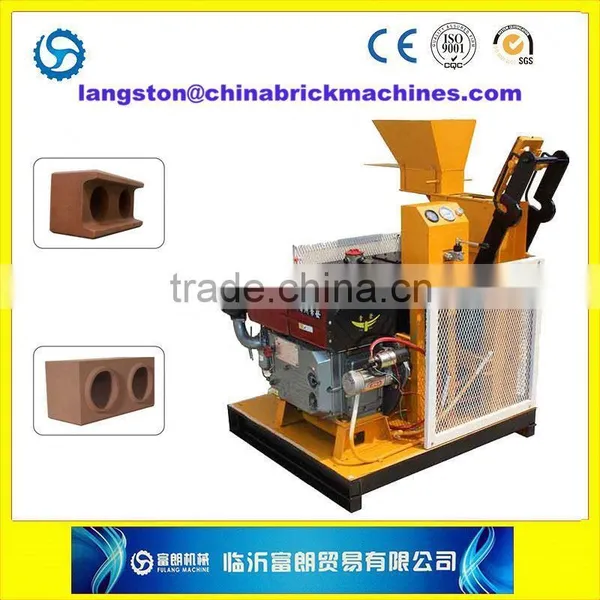

FL1-25 Semi-automatic Hydraulic Interlocking Manual Brick Making Machine/compressed Earth Block
US$ 3,800 - 4,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Interlock Block Making Machine
Brick Raw Material:
Clay
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FL1-25 Semi-automatic Hydraulic Interlocking Manual Brick Making Machine/compressed Earth BuildingUS$ 3,800 - 4,200MOQ: 1 Set -
FL1-25 Semi-automatic Hydraulic Interlocking Manual Brick Making Machine/how to Build Earth HomesUS$ 3,800 - 4,200MOQ: 1 Set
-
FL1-25 Semi-automatic Hydraulic Interlocking Manual Brick Making Machine/rammed Earth House PlansUS$ 3,800 - 4,200MOQ: 1 Set
-
FL1-25 Semi-automatic Hydraulic Interlocking Manual Brick Making Machine/rammed Earth Construction CostsUS$ 3,800 - 4,200MOQ: 1 Set
-
Hydroform Interlocking Clay Brick Machine Afrika Manual Clay Block Making MachineUS$ 6,500 - 8,000MOQ: 1 Set
Condition
New
Type
Interlock Block Making Machine
Brick Raw Material
Clay
Processing
Brick Molding Machine
Method
Hydraulic Pressure
Automatic
No
Capacity
2400 pcs/ day
Brand Name
fulang, fualng
Model Number
1-25 interlock brick machine, 1-25
Voltage
180-380v, 380v,220v-380v/3 phase
Power
5.5kw, 5.5kw
Dimension(L*W*H)
500*600*1400
Certification
sgs,ce, ISO/CE/SGS/BV
Warranty
1 year, 12 months
After-sales Service Provided
Engineers available to service machinery overseas
FL1-25 semi-automatic hydraulic interlocking manual brick making machine/compressed earth block
Product Description
| FL1-25 semi-automatic hydraulic interlocking manual brick making machine/compressed earth block | |
| Overall size | 900(L)*850(W)*1200(H) |
| Production | 2200 blocks per day |
| Cycle time | 25s |
| Power source | Motor 5.5KW |
| Pallet | No need pallets |
| Weight | +/- 230 kg excluding crating |
| Operating staff | +/- 1-2 staff |
| Material | Concrete,earth or clay |
| Mould |
Machines come standard with 220mm interlocking block mouldwhich requires minimal mortar |
| Accessories |
Optional extra: spares (one year), block cutter, block tester, 140mm Mould220mm Conduit Mould, and 220mm Capping Mould |
| Introduction&Advantages |
| A. FL1-25 semi-automatic hydraulic interlocking manual brick making machine/compressed earth block is a small hydraulic block machine which can be easily operated by one person.And it has been widely used in African countries. |
|
B. The machine uses a electric motor to drag the CBT-E316 gear pump,and thus produces the oil pressure(about 16mpa per cm2) to push the hydraulic oil cylinder doing to-and-fro motion The process of shaping and demoulding can be finished in 12 seconds. Additional,the production of this machine is two times more than that of similar foreign manual models and the labor intensity is greatly decreased . |
| C. By adjusting the screws,the height of the brick can be changed. |
| D. However the mould of FL1-25 semi-automatic hydraulic interlocking manual brick making machine/compressed earth block can not be changed , so you can only make one kind of block with one machine. In oder to meet the needs of customers, we have developed a new type brick making machine , which can make two blocks at a time .Also the mould can be changed so that many kind of blocks can be made with just one machine. |

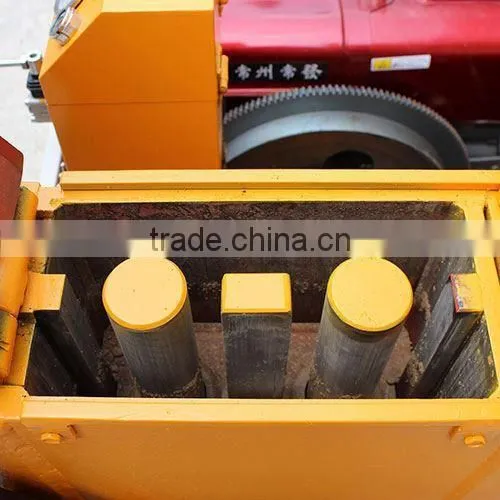

Mould

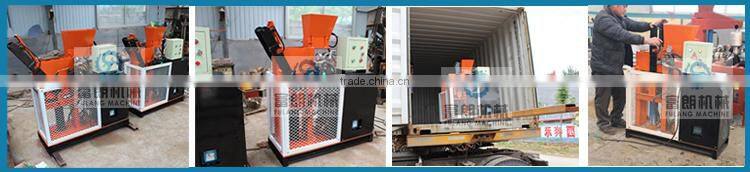

Packaging & Shipping
Port: Qingdao
Package: Wooden package
