FL1-20 Concrete Compressed Interlocking Brick Machine With Car Tire Quality Choice

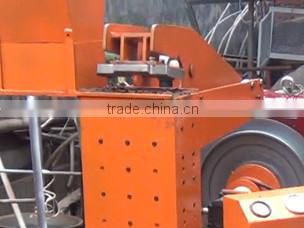

FL1-20 Concrete Compressed Interlocking Brick Machine With Car Tire Quality Choice photo-1

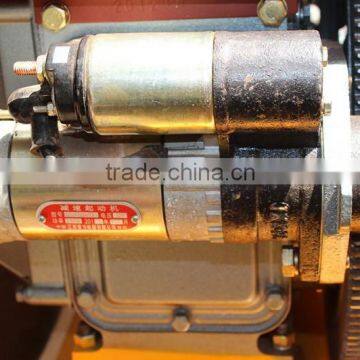

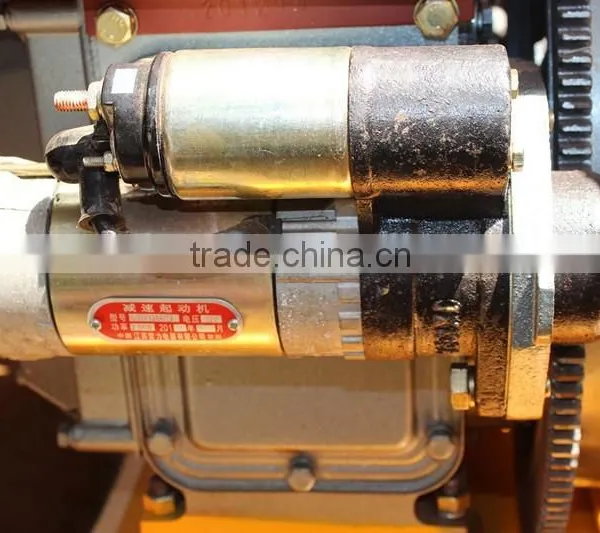

FL1-20 Concrete Compressed Interlocking Brick Machine With Car Tire Quality Choice photo-2

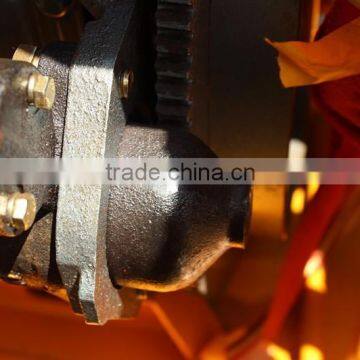

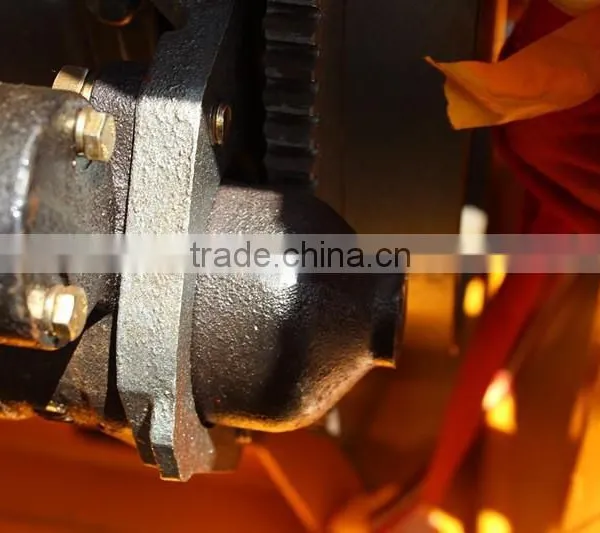

FL1-20 Concrete Compressed Interlocking Brick Machine With Car Tire Quality Choice photo-3
US$ 6,000 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Interlock Block Making Machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Interlock Block Making Machine
Brick Raw Material Concrete
Processing Brick Molding Machine
Method Hydraulic Pressure
Automatic No
Capacity 3000pcs/day
Place of Origin Shandong, China
Brand Name FULANG
Model Number FL1-20
Voltage 16MPA
Power 5.5KW
Dimension(L*W*H) 1250*1250*1500mm
Certification CE ISO9001
Warranty 1 years
After-sales Service Provided Engineers available to service machinery overseas



Product Description





FL1-20Electrical engine  Concrete Compressed Interlocking Brick  Machine

Mould:  carburizing treatment, long service life (3 months - a year).
Packing:  MDF wood carton package (wooden cases need extra packing charge)
Engine  electrical engine
product overall siez  1250*1250*1500mm
Mould material  heat treated ,longer life span
Production:   2600-3000 a day
Cutting type precise line cutting,not flame cutting
Weight  about 500kg including package
Brick size  240*220*115
Oil pressure 16MPa
The mixing ratio of cement and soil  8%-10%
Tire Car tire



Processing of FL1-20Electrical engine  Concrete Compressed Interlocking Brick  Machine

 By hydraulic pressure.the two oil cylinder will give a powerful pressing for the block.after material feeding,the two oil cylinder will press the middle block,final up mold rise, the block will come out

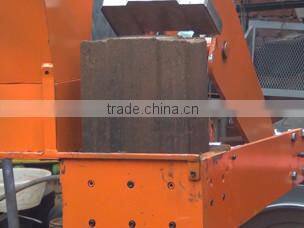

BLOCKS MEASURE of  FL1-20Electrical engine  Concrete Compressed Interlocking Brick  Machine

Length 23cm, width 22cm, height up to 11.5cm.
The length, the width and height are not fixed dimensions,but if customer want one machine with some molds, these molds should have similar size.

photo size
(120-240)x (140-220) x 115mm
(120-240)x (140-220) x 115mm
(120-240)x (140-220) x 115mm
(120-240)x (140-220) x 115mm

Components of  FL1-20 Earth Compressed Interlocking Block Making Machine

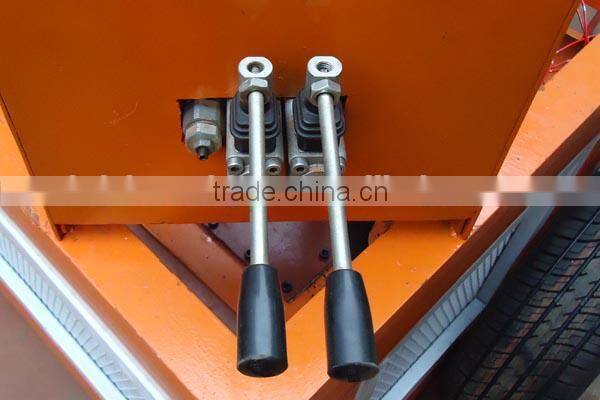

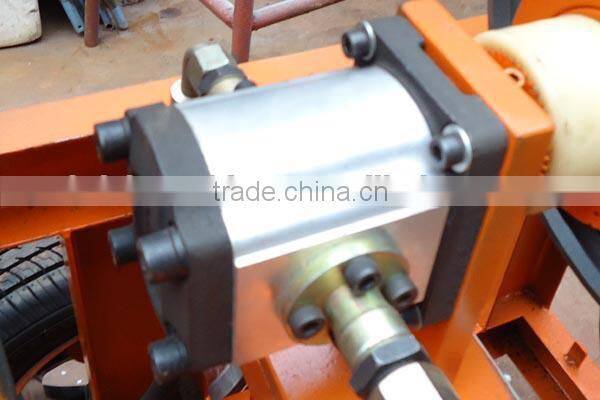

Hydraulic System Tank Hydraulic Command

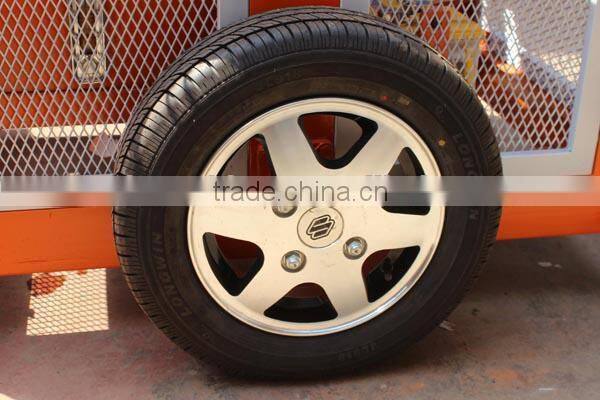

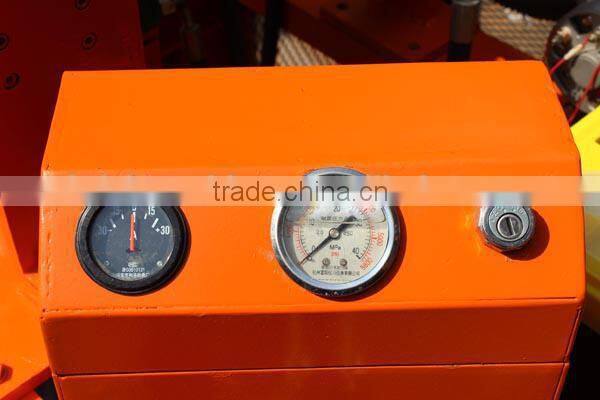

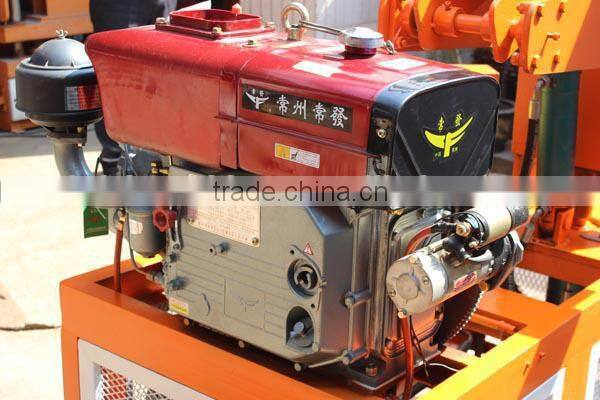

Diesel engine Wheel Control panel















Packaging

MDF wood carton package or as customers request

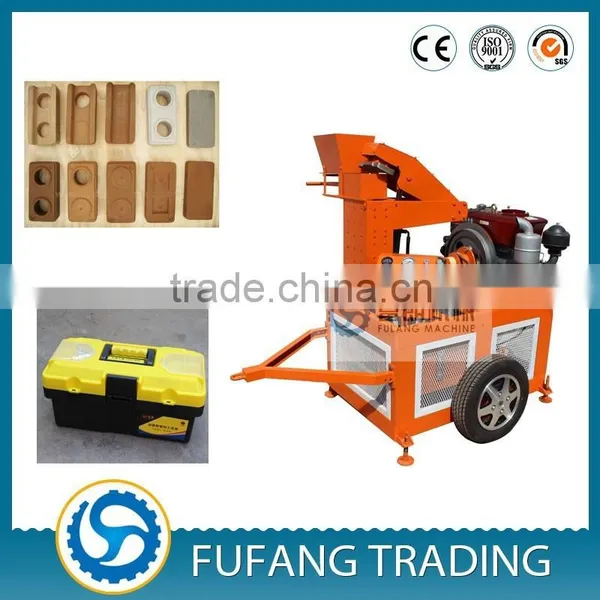

FL1-20 Concrete Compressed Interlocking Brick Machine with Car Tire
