P10 red semi outdoor led display with 10mm pixel pitch
USD $4.3 - $5.3
/ Piece
1000 Pieces(Min.Order)
- 30000 Piece / Pieces per Month
- Shenzhen/Guangzhou
You May Like
-
60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
-
80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
-
60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
-
2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
-
Led flood light, led Gas Station Lamp, LED canopy light 100w
-
120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Taixian | Model Number: | TX-P10 |
| Usage: | Semi-outdoor | Tube Chip Color: | Red | Display Function: | Other, Text,Graphics |
| Pixels: | 10mm | Screen Dimension: | 320mm*160mm |
Product Description
Product Description

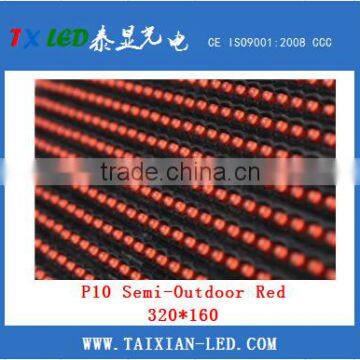

| P10 Semi-Outdoor Red LED Module | ||
| Module details | Usage | Semi-Outdoor |
| Display function | Text, Graphic | |
| Pixel pitch | 10mm | |
| Pixel density | 10,000 dots/sqm | |
| Module size | 320mm*160mm | |
| Tube chip color | Single color | |
| Constitution | Red | |
| Resolution | 32 (W)*16 (H) | |
| Gray Scale | 256 grades | |
| HUB | Hub12 | |
| Power supply | Working voltage | 5V40A |
| Average power consumption | 200-250w/sqm | |
| Max power consumption | 350-500w/sqm | |
Main Technical Parameters | Brightness | 2,500-3,500cd/sqm |
| Brightness adjustment | 100 levels by software | |
| Drive mode | Constant Voltage 1/4 scan | |
| Refresh frequency | ≥120 Hz | |
| Frame frequency | ≥60 Hz | |
| Working temperature | -20°C~+50°C | |
| Storage temperature | -35°C~+85°C | |
| Humidity | ≤95% | |
| Best view distance | 10-200m | |
| Best view angle | H: ≥120°; V≥90° | |
| MTBF | ≥5000 hours | |
| Lifetime | ≥100,000 hours | |
| Control system | Operating system | WIN 98/WIN2000/WIN NT/XP |
| Control method | Synchronous / Asynchronous | |

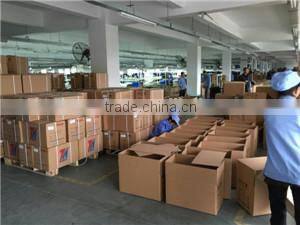

Packaging & Shipping
LED Module——40 pcs/carton
Cabinet——Wood Case Packing or According to customer's Request;
Delivery: 7-15 Days ,according order quantity.

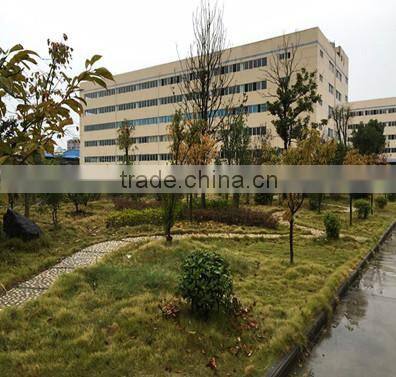

FACTORY IN HUBEI & OFFICE IN SHENZHEN

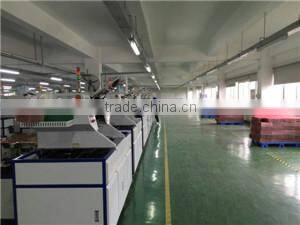

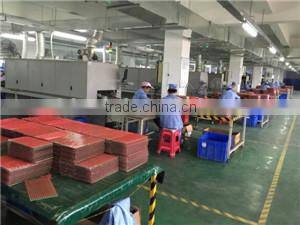

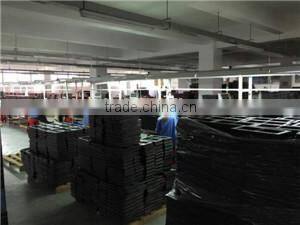

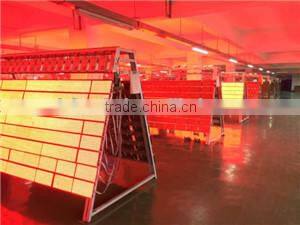

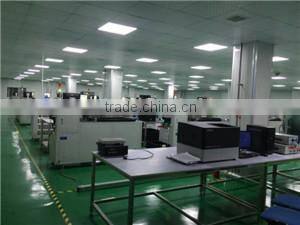

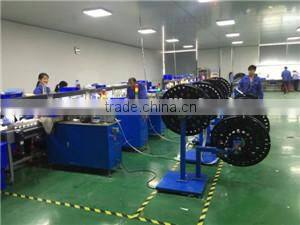

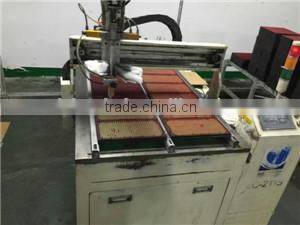

WORK SHOP
Taixian Certification
Contact US
Contact Us
- Shenzhen City Xintai Photoelectric Technology Co., Ltd.
- Contact nameJanet Gao
- Phone86-755-29490116
- AddressE building,Sanlian Industry zone,Shiyan Shenzhen,Guangdong
