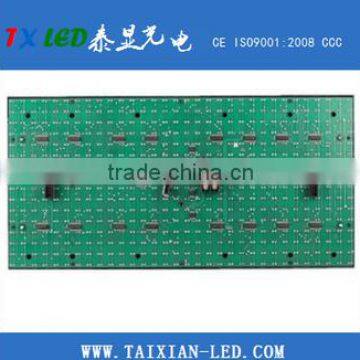

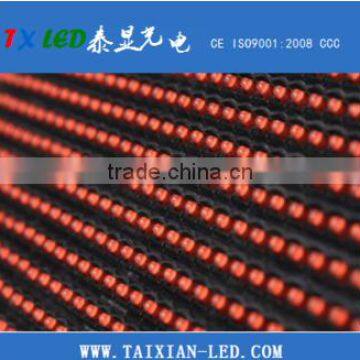

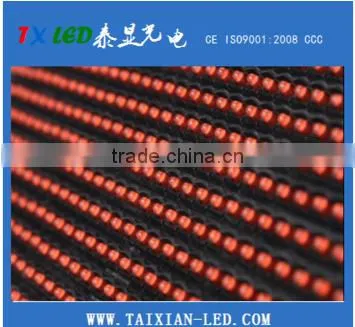

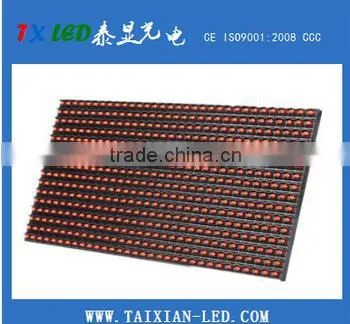

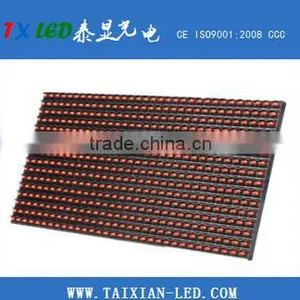

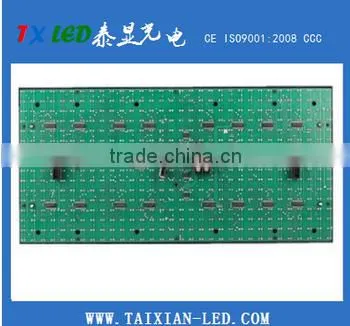

P10 red semi-outdoor running text LED panel P10 semi-outdoor white/blue/red/ green single color led display module
- 10000 Piece / Pieces per Month
- Shenzhen/Guangzhou
- Credit Card PayPal
-
60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
-
80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
-
60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
-
2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
-
Led flood light, led Gas Station Lamp, LED canopy light 100w
-
120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Taixian | Model Number: | P10 |
| Usage: | Semi-outdoor | Tube Chip Color: | Red | Display Function: | Graphics |
| Pixels: | 10mm | Screen Dimension: | 320*160mm |
Product Description
About us
1) 8 years experience,1500 employees, 30,000 daily capacity.
2) We produce :LEDs,Plastic Material,Waterproof Silicone,PCB ,and so on all by ourselves.
3) 100% QC inspection before Shippment.
Product Description
| P10 Semi-outdoor Single Red Color | ||
| Module details | Usage | Semi-Outdoor |
| Display function | Text, Graphic | |
| Pixel pitch | 10mm | |
| Pixel density | 10,000 dots/sqm | |
| Module size | 320mm*160mm | |
| Tube chip color | Single color | |
| Constitution | Red | |
| Resolution | 32 (W)*16 (H) | |
| Gray Scale | 256 grades | |
| Power supply | Working voltage | 5V40A |
| Average power consumption | 200-250w/sqm | |
| Max power consumption | 350-500w/sqm | |
| Main technical parameters | Brightness | 2,500-3,500cd/sqm |
| Brightness adjustment | 100 levels by software | |
| Drive mode | Constant Voltage 1/4 scan | |
| Refresh frequency | ≥120 Hz | |
| Frame frequency | ≥60 Hz | |
| Working temperature | -20°C~+50°C | |
| Storage temperature | -35°C~+85°C | |
| Humidity | ≤95% | |
| Best view distance | 10-200m | |
| Best view angle | H: ≥120°; V≥90° | |
| MTBF | ≥5000 hours | |
| Lifetime | ≥100,000 hours | |
| Control system | Operating system | WIN 98/WIN2000/WIN NT/XP |
| Control method | Synchronous / Asynchronous | |
Packaging & Shipping
LED Module——40 pcs/carton
Cabinet——Wood Case Packing or According to customer's Request;
Delivery: 7-15 Days ,according order quantity.
FACTORY IN HUBEI & OFFICE IN SHENZHEN

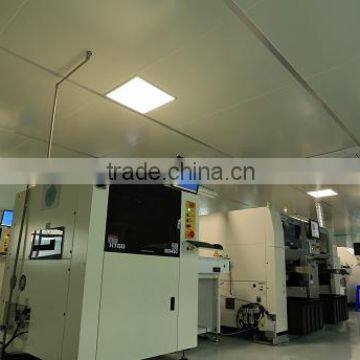

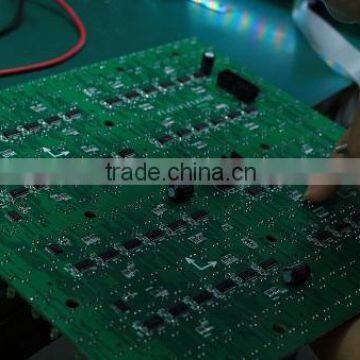

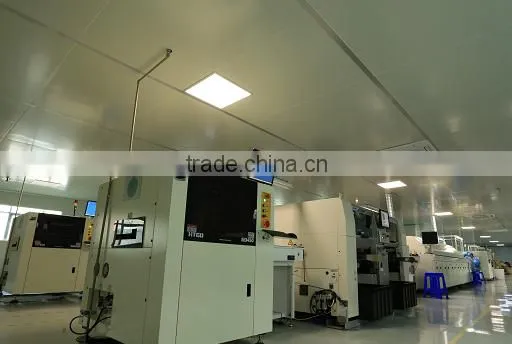

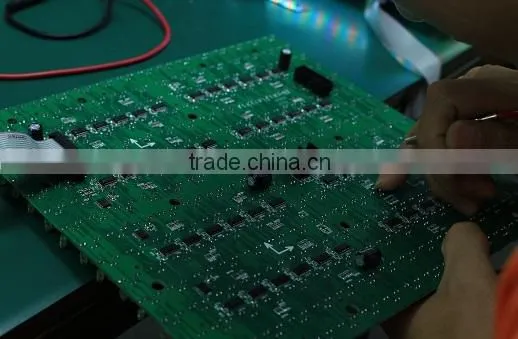

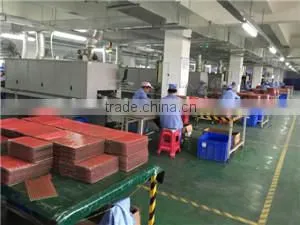

WORK SHOP
Taixian Certification
Our Services
1) Your inquiry related to our products or price will be replied in 24hrs
2) Protection of your sales area,ideas of design and all your private information
3) Top Quality+Reasonable Price+Responsible After Service+Trustworthiness Coopera =Successful & Win
Contact Taixian
Contact Us
- Shenzhen City Xintai Photoelectric Technology Co., Ltd.
- Contact nameJanet Gao
- Phone86-755-29490116
- AddressE building,Sanlian Industry zone,Shiyan Shenzhen,Guangdong
