Full Color Led Display P10 RGB Led Module

Name: Full Color Led Display P10 RGB Led Module
Brand: Taixian
SKU: 104192731

US$ 6.5 - 8.5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Taixian

Model Number:

TX-P10

Shenzhen City Xintai Photoelectric Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Taixian

Model Number TX-P10

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels 10mm

Screen Dimension 160mm*160mm

Why choose us ?

1, 8 years experience,1500 employees, 30,000 daily capacity.

2, We produce :LEDs,Plastic Material,Waterproof Silicone,PCB ,and so on all by ourselves.

3, 100% QC inspection before Shippment.

Product Description

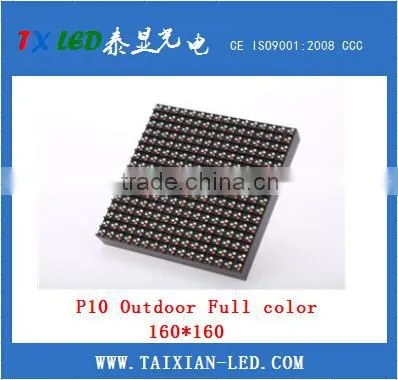

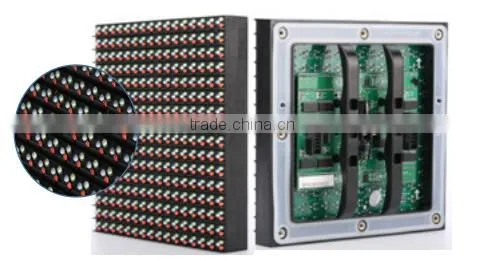

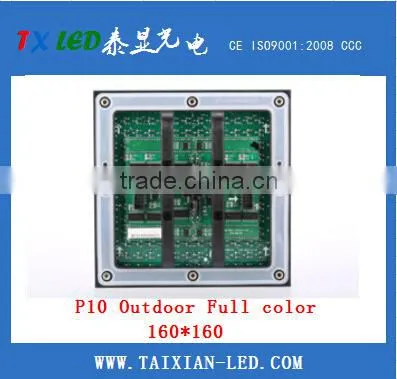

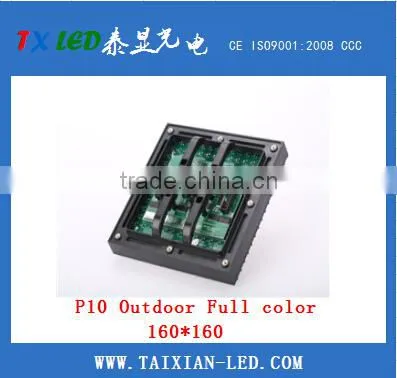

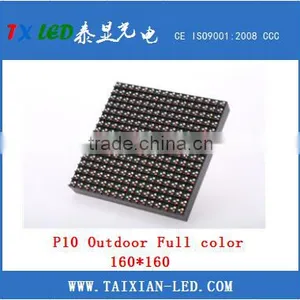

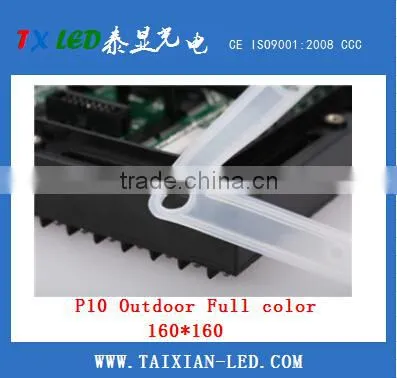

P10 Outdoor Fullcolor LED Module
Module details	Usage	Outdoor
	Display function	Video,Animation
	Pixel pitch	10mm
	Pixel density	10,000 dots/sqm
	Module size	160mm*160mm
	Tube chip color	Full color
	Constitution	1R1G1B
	Resolution	16 (W)*16 (H)
	Gray Scale	256 grades
	HUB	Hub75
Power Supply	Working Voltage	AC 110~220V (can select)
	Average power consumption	700w/sqm
	Max power consumption	1100w/sqm
Main Technical Parameters	Brightness	5,500-7,500cd/sqm
	Brightness adjustment	100 levels by software
	Drive mode	Constant Current 1/16 scan
	Refresh frequency	≥400 Hz
	Frame frequency	≥60 Hz
	Working temperature	-20°C~+50°C
	Storage temperature	-35°C~+85°C
	Humidity	≤95%
	Best view distance	10-200m
	Best view angle	H: ≥120°; V≥90°
	MTBF	≥5000 hours
	Lifetime	≥100,000 hours
Control system	Operating system	WIN 98/WIN2000/WIN NT/XP
Control system	Control method	Synchronous / Asynchronous
