Specifications
CO2 laser wire stripping machine1.PLC controller and TP human-machine interface
2.can continuous work at 24-hour full load
CO2 laser stripping machine

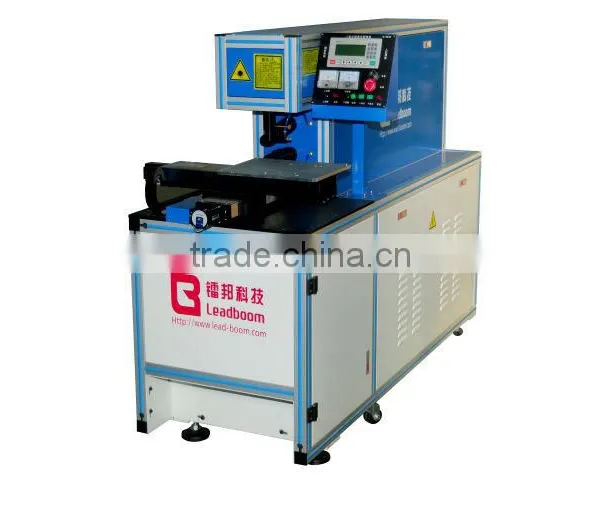

LB-60B Carbon dioxide laser wire stripping machine is the professional stripper product mainly focus on the
processing of high-end wire. It adopts imported configuration have stable performance and easy for maintenance, can be continuous operated for 24 hour at full load.
Technical Advantage
1. Adopt double tube double light road design, processing efficiency was one times faster than normal laser wire stripper machine
2. Moving distance is adjustable,can produce more than one line in a single time.
3.PLC controller and TP man-machine interface, complete function, simple operation
4.Adopt the combination of transmission mode, high precision, low noise, fast speed.
5. the tension resistance of laser strip cable wires better than the heat stripper
6. strip the shield without deforming and hurting insulation and conductors.
7. strip the cable insulation performance without change.
8.inside and outside of the port without change after insulation performance
9.Precision control of strip location, size and depth, consistency and reliability of cable end processing quality can reach 100%.
Technical Parameters
Laser Power |
60W×2 |
|
Laser wavelength |
10640nm |
|
Work wide |
300mm |
|
Cutting speed |
0~6000mm/min |
|
Positioning precision |
±0.02mm |
|
Cooling system |
water-cooling |
Power supply |
AC220V/50HZ |
|
power consumption |
≤1.5KW |
|
Dimension |
1700×600×1320mm |
Materials: non-metallic materials, including polyvinyl chloride, glass fiber, polyester, polyester film,
nylon, polyethylene, fluoride, silicon resin, other different hardness high temperature resistant insulating materials.
Field: HDMI, USB, DVI, DP, SATA, SFP and other aluminum foil and corn wire stripping ,etc.
our workshop:

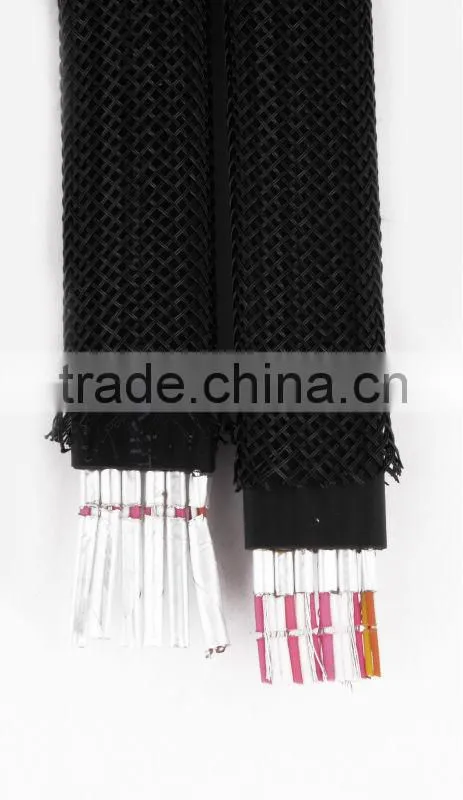

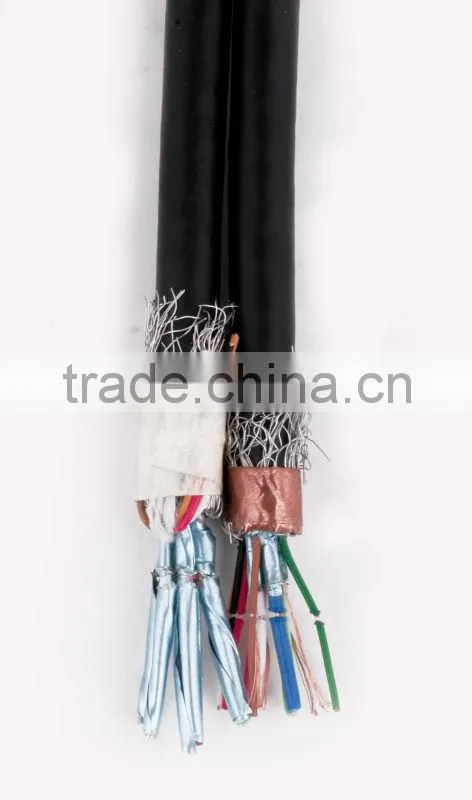

product sample:
