Specifications
Laser Stripping MachineLaser imported
High accuracy&speed
No consuambles, cost low
High laser power utilization

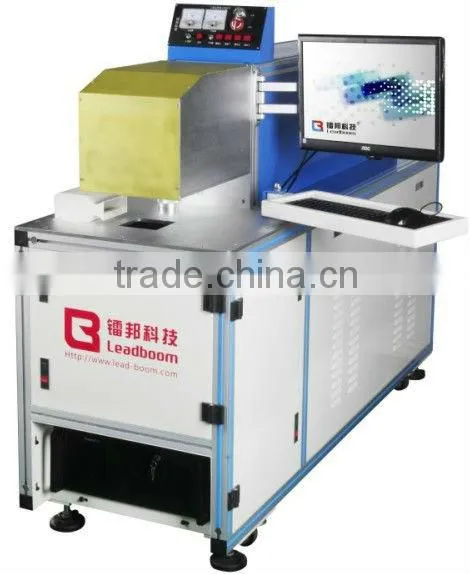

2013 Lowest Non-metal Material Perfect CO2 Laser Stripping Machine
1.Technical Parameters:
| Type | LB-SW100 |
| Laser Power | 0-60W serially adjustable |
| Laser wavelength | 10640nm |
| Excellent design | Dual tube and double optical path design |
| Working area | 70x70mm-110x100mm |
| Marking speed | ≤7000mm/s |
| Minimum Linewidth | 0.05mm |
| Repeated precision | ±0.003mm |
| Coolling system | Water-cooling |
| Power supply | AC220V/50Hz |
| Power consumption | 0.5KW |
| Dimension | 1810x850x1400mm |
2.Product overview
LB-SW100 laser stripping machine is the newly developed and integrated multi-functions laser stripping machine. Totally new processing mode can meet various requirements.
3. Advantages
Used specifically for core sheath stripping with adjustable dimensions and positions, in particular, specific to multi-stage mid-stripping and window opening. The core wire can be stripped at one time without mechanical or manual pull-away. Compared to conventional method, it exponentially improved the efficiency.
- Adopt dual tube and double optical path design, so as to output light with elevated efficiency.
- Use two sets of high-speed driving system to achieve high processing precision and reduce noise level.
- Use industrial personal computer and professional software to arbitrarily set and adjust processing dimensions and positions. Processing data can be arbitrarily saved.
- Be able to adjust upper and lower laser head focusing in line with the tool size. The accessible and adjustable structure can be precisely adjusted with the aid of staff gauge.
The insulation performance of conductor makes no changes before and after laser stripping.
The machine can be also used for aluminum foil slitting.
4.Application Material & field:
Materials: Filament, mini-filament coaxial cables, electronic cable industry and HDMI, USB, DVI, DP, SATA, SFP and other aluminum foil and corn wire stripping ,etc.
Fields: non-metallic materials, including polyvinyl chloride, glass fiber, polyester, polyester film, nylon, polyethylene, fluoride, silicon resin, other different hardness high temperature resistant insulating materials.
5.Our company
|
Dongguan Leadboom Photoelectric Technology Co., LTD., is dedicated to researching and developing laser equipments and mass manufacturing for our customers overseas. And we have built long term strategic parterships with the COHERENT, SYNRAD, II VI from the US, and MITSUBISHI, Panasonic from Japan, and Rofin, IPG from Germany,etc. Our main products including CO2 laser wire stripping machine, fiber laser wire stripping machine, fiber laser marking machine, CO2 laser marking machine, CO2 laser cutting machine, laser engraving machine, solid laser welding machine series over 20 sets of laser equipment, etc. Our company takes "quality, innovation, efficiency, service" as business target and is now growing fast with our partner and client together. And we also believe that the basis of a enterprise development is the attitude of pursuing excellence and the support from customers will strengthen our confidence. The only device can no longer stand for our technology, we are offering the solutions. Let’s cooperate together for the brighter future! |
|

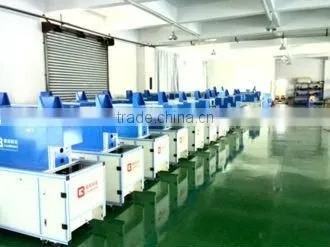

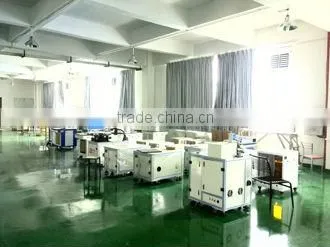

6.Our Workshop
|
|
|
7.Samples:
|
|
|
8.Our Commitment
1.Online service.If any technical questions or problems,our engineers will help to give you
solutions on email or some online way.
2. Minimal one year for free warranty (include whole machine and spare parts)
3.Spare parts supplying on time or help fix the old parts.
4.Faster delivery,most of our products have stock and guarantee delivery within short time.
5.Free design and guide for customer6.Free software update
If you have any other question or need please ask me .I am always online for you.
Customers need is our first.We will provide you the product of the best quality and the
lowest price!
