Specifications
CO2 laser wire stripping machine1.can continuous work at 24-hour full load
2.PLC controller and TP human-machine interface
Leadboom profesional and effective CO2 laser wire stripping machine for best sale
Product Overview
Carbon dioxide laser wire stripping machine is the professional stripper product mainly focus on the processing of high wire. It adopts imported configuration have stable performance and easy for maintenance, can continuous work at 24-hour full load.
Technical Parameters
Laser power |
60W×2 |
|
Laser wavelength |
10640nm |
|
Work wide |
300mm*100mm |
|
Cutting speed |
0~6000mm/min |
|
Positioning precision |
±0.02mm |
|
Cooling system |
water-cooling |
Power supply |
AC220V/50HZ |
|
power consumption |
≤1.5KW |
|
Dimension |
1700×600×1320mm |
Technical Advantage
1. Adopt double tube double light road design, processing efficiency was one times faster than normal laser wire stripper machine
2. Moving distance is adjustable,can produce more than one line in a single time.
3.PLC controller and TP man-machine interface, complete function, simple operation.
4.Adopt the combination of transmission mode, high precision, low noise, fast speed.
5. the tension resistance of laser strip cable wires better than the heat stripper.
6. strip the shield without deforming and hurting insulation and conductors.
7. strip the cable insulation performance without change.
8.inside and outside of the port without change after insulation performance.
9.Precision control of strip location, size and depth, consistency and reliability of cable end processing quality can reach 100%.
Application Materials
Non-metallic materials, including polyviny choride, glass fiber, polyester, polyester film, nylon, polyethylene, fluoride, silicon resin, other different hardness high temperature resistant insulating materials.
Application Field
Filament, mini-lilament coaxial cables, electronic cable industry and HDMI, USB, DVI, DP, SATA, SFP and oth other aluminum foil and corn wire stripping, etc.

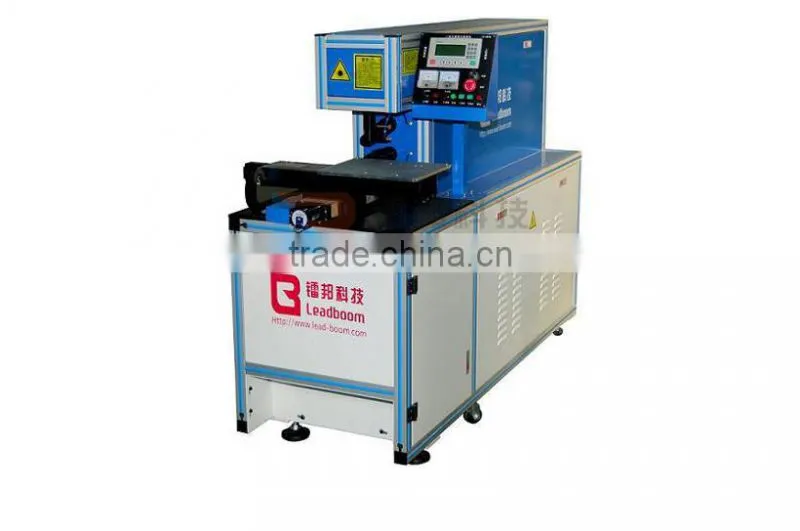

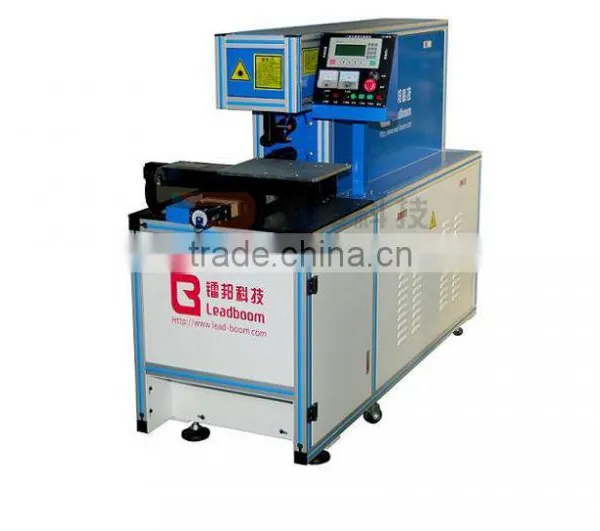

CO2 laser wire stripping machine

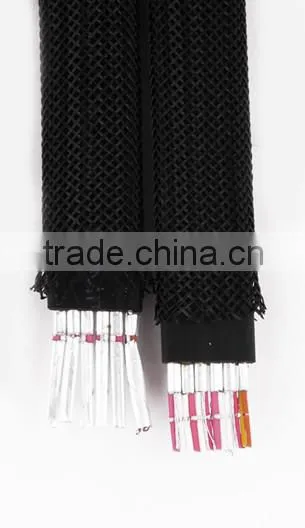

Product sample
Leadboom company
workshop
