Specifications
CO2 laser wire stripper machine:1.adopt import lasers,low power more stable
2.PLC controller,touch screen
3.high precision.

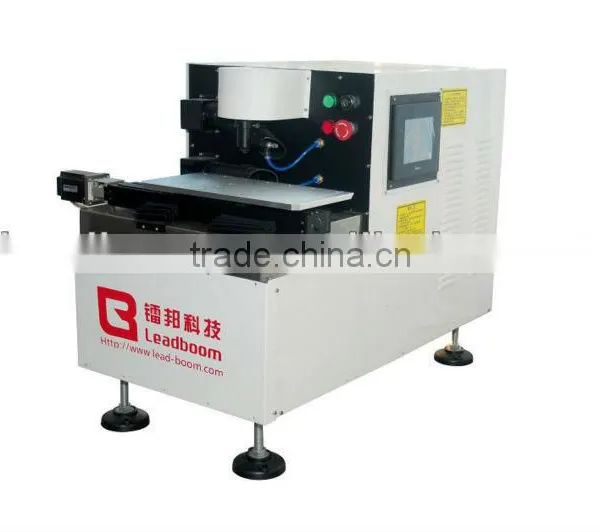

CO2 laser wire stripper machine
JR-V30S co2 laser wire stripper machine a kind of professional strip auxiliary production which we take the lead to offer
in China marketing.,It is special for stripping the mini coaxial cable produce of mini-filament.
It has a stable structure design,excelent performance,and amount of independent design patent.
Technical Advantage
1. Adopt import lasers, more filament , low power more stable, 6 times of service life time than domestic laser.
2.movable X –axis and Y-axis distance , production’s peel location and side can be regulated freely ,can produce more than one line in a single time
3.PLC controller and touch screen, complete function, simple and convenient for operation , can set and retain several processing files.
4.Precision linear motion module, high precision, low noise, fast speed.
5.optical system pollution prevention device and adsorption exhaust device.
6.mini coaxial cable and aluminum foil below AWG#52
7.Cut line and material with two different power incision in one process cycle, or design cut times freely.
8.Strip insulating layer (PVC,PE,QRW,PTEF,ect.) and tape layer good. Keep insulating layer when strip tape layer.
9.Preciae control of strip location, size and depth, consistency and reliability of cable end processing quality can reach 100%.
10.This model can do the same axis according to the demand of single section or multiple sections of stripping function.
Technical Parameters
|
Laser Power |
30W×1 |
|
Laser wavelength |
10640nm |
|
Work wide |
300mm×200mm |
|
Cutting speed |
0~6000mm/min |
|
Positioning precision |
±0.02mm |
|
Repositioning precision |
±0.02mm |
|
Cooling system |
air-cooled |
|
Power supply |
AC220V/50HZ |
|
power consumption |
≤1.2KW |
Dimension |
680×900×700 mm |
Materials: Filament, mini-filament coaxial cables, electronic cable industry and HDMI, USB, DVI, DP, SATA, SFP
and other aluminum foil and corn wire stripping ,etc.
Fields: non-metallic materials, including polyvinyl chloride, glass fiber, polyester, polyester film, nylon,
polyethylene, fluoride, silicon resin, other different hardness high temperature resistant insulating materials.
workshop:

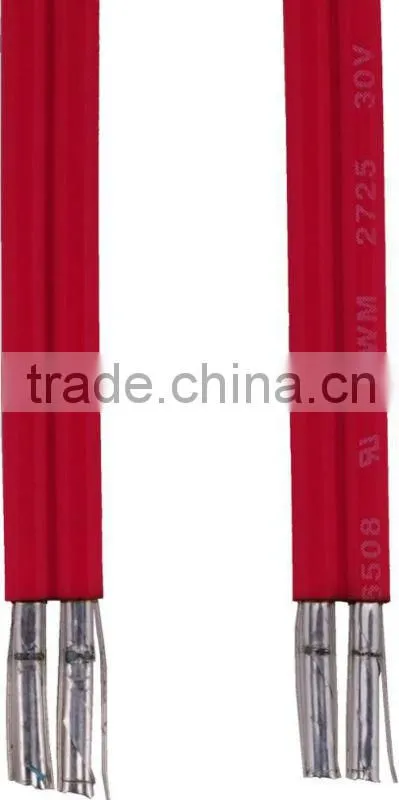

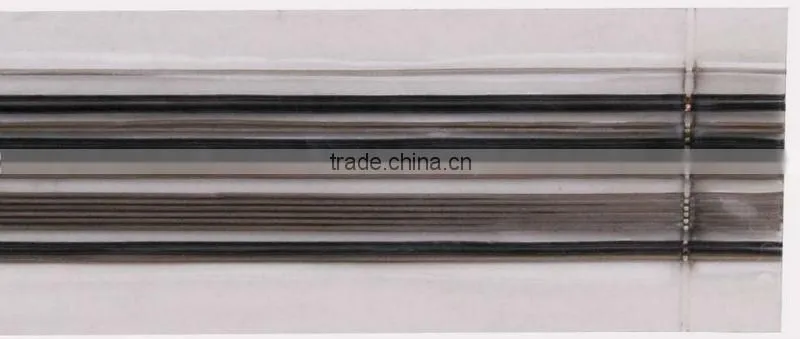

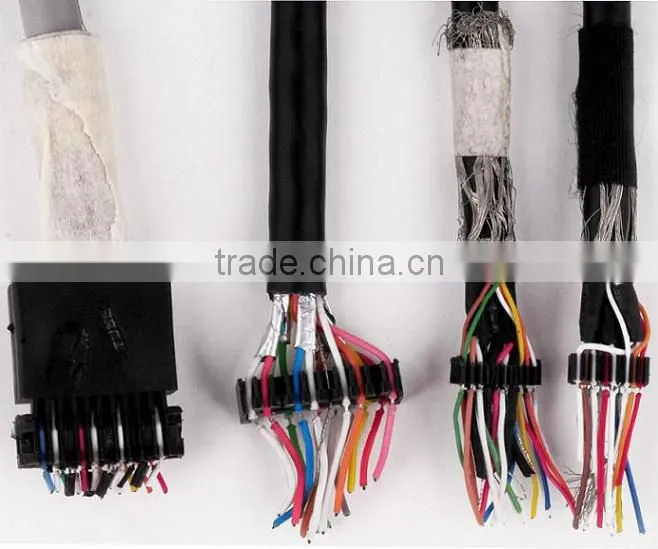

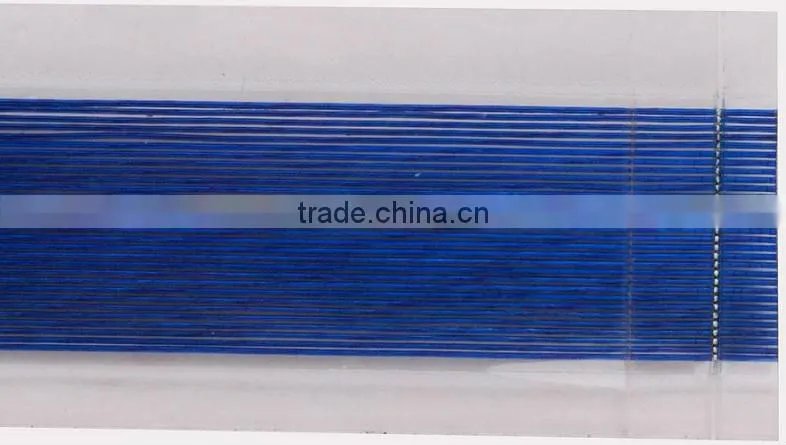

processed sample:
