Specifications
50W CO2 laser cutting and engraving machine1. AI,BMP,PLT,DXF,DST image data input
2.CORELDRAW,AUTOCAD,PHOTOSHOP
3.DSP tech

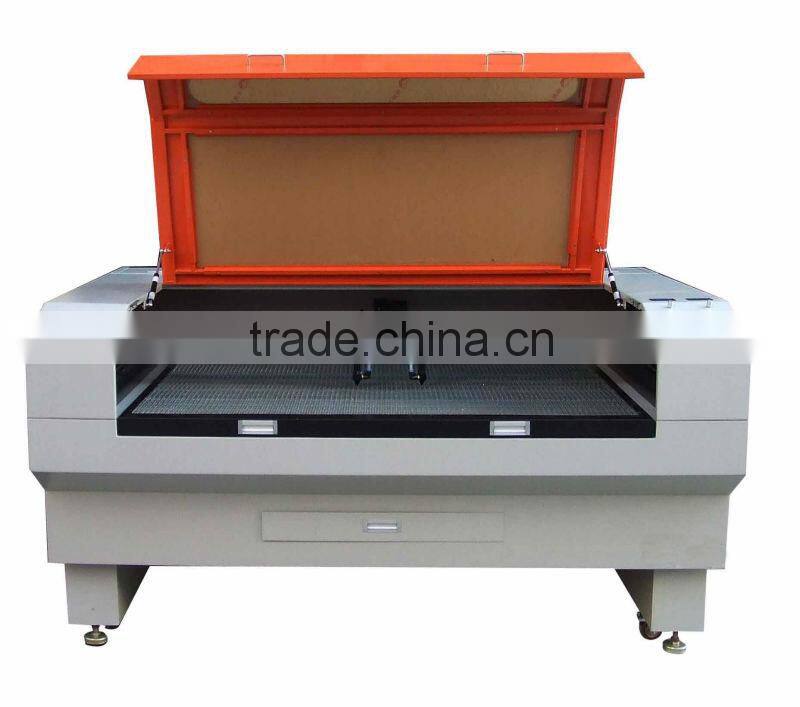

50W CO2 laser engraving and cutting machine:
Product Description:
Laser cutting is laser beam irradiation to workpiece surface to make the energy release of the workpiece melting and evaporation, in order to achieve the purpose of cutting and sculpture, with high precision, fast cutting, is not limited to cutting pattern limit, automatic layout to save materials, incision smooth, processing of a cost low characteristic, will gradually improve or replace the traditional cutting process equipment.
LB-CE series laser engraving cutting machine with the CO2 laser for energy, mechanic-electrical as one of the high-tech products. It is by the stepper motor composed of the drive system, and then through the synchronous belt, synchronous wheel, straight axis of precision mechanical drive system, and international leading level DSP digital control technology and USB data transmission high and new technology of organic integration, to the maximum to meet the requirements of different customers.
Technical Advantage:
1. The off-line motion control system, need not connected to PC operation, USB data input, can save more processing document.
2.Strong and stable mechanical structure, digital control.
3.The American import focusing mirror and silicon bottom gilded mirror, spot fine, strong cutting force.
4.Configuration professional industrial cooling water system, continuous work stable performance.
5.Support for AI, BMP, PLT, DXF, DST (TAJIMA, embroidery software) image data format import.
6.Support TAJIMA embroidery software (TAJIMA), CORELDRAW, PHOTOSHOP, AUTOCAD, all kinds of clothing CAD software
7.Equipment can choose servo drive and imported linear guide, enhance stability, improve accuracy, increase the work efficiency.
8.Can adopt double-head laser cutting, machining dimension is big, high processing efficiency.
Technical Parameter:
Type |
LB-CE6040 |
LB-CE9060 |
LB-CE1280 |
LB-CE1490 |
LB-CE1680 |
Laser Power |
60W/80W |
60W/80W |
80W/100W |
80W/100W |
80W/100W |
|
Laser type |
CO2 seal from type glass tube laser |
||||
|
Working area |
600mm×400mm |
900mm×600mm |
1200mm×800mm |
1400mm×900mm |
1600mm×800mm |
|
Max. curve movement speed |
50000mm/min 50000mm/min (Stepping motor)
|
||||
|
Cutting speed |
0-40000mm/min 0-40000mm/min (Stepping motor) |
||||
|
Engraving speed |
0-50000mm/min 0-50000mm/min |
||||
|
Laser energy control |
1-100% 1-100%(Software Settings) |
||||
Max. scanning accuracy |
2500DPI |
||||
|
Positioning precision |
≤±0.01mm |
||||
|
Min. Carving Character |
2.0×2.0mm,1.0×1.0mm Chinese characters 2.0×2.0mm, English 1.0×1.0mm |
||||
|
Dichroic Cutting |
The color can set a variety of carving parameter |
||||
|
Working voltage |
220±10% 50HZ |
||||
Application Industry:
Shoes, leather clothing, trademark processing, embroidery, advertisement, decoration, wood processing, packaging and printing, laser knife die, decoration decoration industry, printing tipping template, process gifts industry, electronic industry, model industry (architecture model, aviation and navigation models and wooden toys), etc.
Applicable Materials:
Cloth, tile, cardboard, paper, leather, PU leather, trademark embroider, plastic, rubber, wood products, wood, organic glass, acrylic, jade, leather, shell, horn, animal sebum, double color boards, bamboo and wood products, ABS board, PVC board, fiber and composite materials etc. Nonmetal materials.

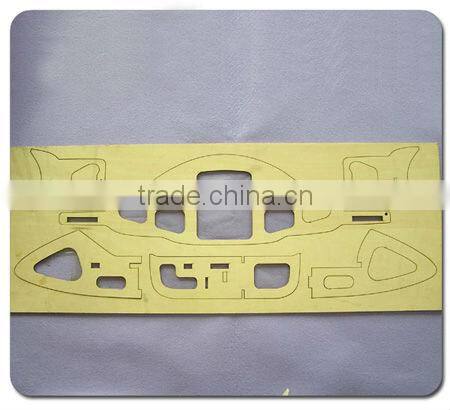

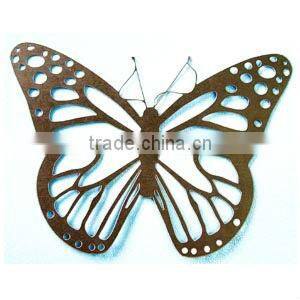

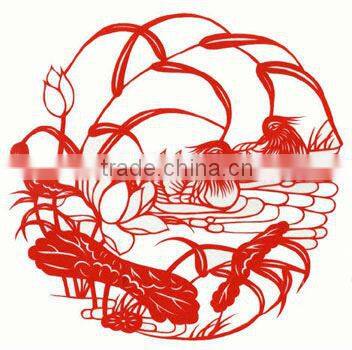

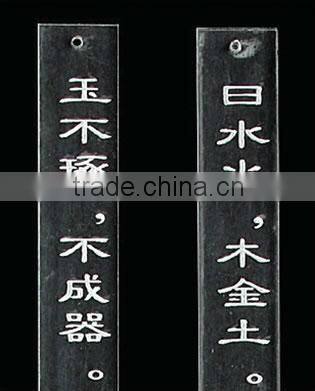

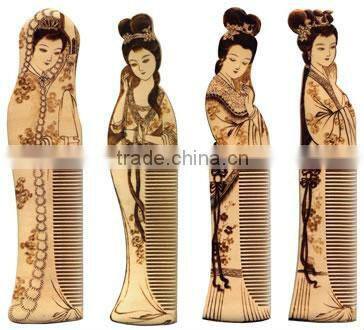

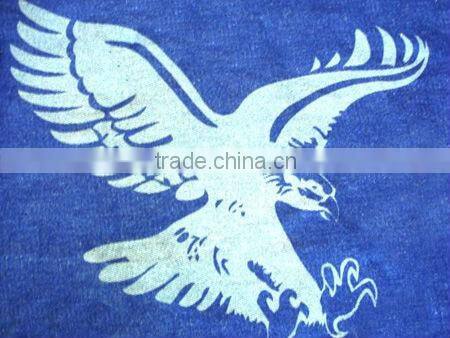

Carving Sample:
workshop appearance
