Specifications
UV Curing Machine1.Factory Price
2.The length of feeding material: 250 mm
3.Wavelength:365nm

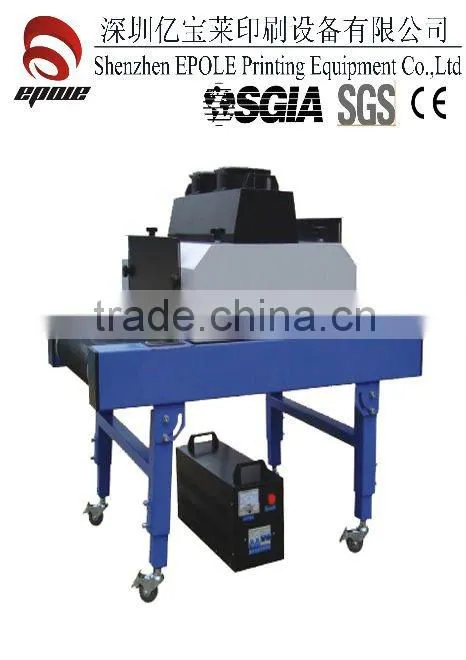

UV Curing Machine, UV Dryer,UV SPOT Machine,UV Varnish Dryer
Application:
Ultraviolet (UV) ink curing, spot-varnished, colorful, and frosted, wrinkles, refraction and other UV ink curing. It can adjust and control independently for the level of light source according to clients’ craft, And curing and drying for customized a variety of offset and spray drying curing lines
Specification:
1. This machine belong to Transmission UV Curing Equipment; It is used for the curing of Ink, Coating, Resin; It has these characters of small volume, light weight and perfect design; it can move conveniently and place on the desk;
2. The Reflector of this equipment adopt focusing type baffle-board;
3. It's very convenient to adjust the height of UV lamp; it has an uniform luminance and long lifetime;
Technical Parameters:
(1)Overall Size (L*W*H): 1020*660*955mm
(2)The length of feed material hole: 250 mm
(3)The length of discharge material hole: 270mm
(4)The height of feed material hole: 540±100mm
(5)The height of discharge material hole: 10-120mm
(6)The width of Teflon: 400mm
(7)The material of mesh belt: Teflon
(8)Wattage of Tube: 3KW/piece, the shinning height of lamp tube can be adjusted by manual
(9)Wavelength: 365nm
(10)The shinning width of light tube: 400mm
(11)Transmission Motor: 25W 1:15
(12)Exhaust Fan: 38W,2set
(13)The transmission speed: 0-12m/min, electronic speed regulation;
(14)The transmission way: chain
(15)Decoration way: spray coating
(16)Power: 220V
(17)Net Weight: 80kg
(18)Gross Weight: 85kg
OEM and ODM: our factory can custom according to your requirement with our excellent engineers who have more than 10 years experience.
