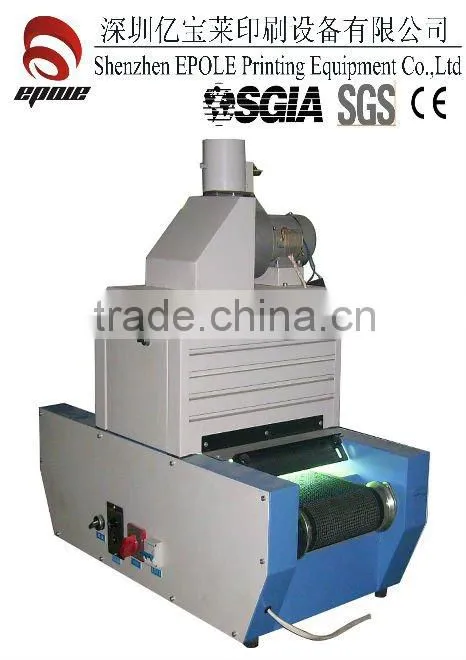

1.Ultraviolet (UV) ink curing, spot-varnished, colorful, and frosted, wrinkles, refraction and other UV ink Drying& CuringUV Curing Machine&UV Dryer
Application:
Ultraviolet (UV) ink curing, spot-varnished, colorful, and frosted, wrinkles, refraction and other UV ink curing. It can adjust and control independently for the level of light source according to clients’ craft, And curing and drying for customized a variety of offset and spray drying curing lines
Specification:
1. This machine belong to Transmission UV Curing Equipment; It is used for the curing of Ink, Coating, Resin; It has these characters of small volume, light weight and perfect design; it can move conveniently and place on the desk;
2. The Reflector of this equipment adopt focusing type baffle-board;
3. It's very convenient to adjust the height of UV lamp; it has an uniform luminance and long lifetime;
4. The transmission speed is 1-8m/min; you can adjust the speed stepless;it transmit stably and has low noise;
Technical Parameters:
Name |
Technical Parameters |
Model |
YBL-UV200-1 |
Power |
Single Phase220V 50Hz |
The height of feeding material |
30mm |
The length of feeding & discharging material |
170/170mm |
Overall Size |
L800mm*W430mm*H638mm |
Transmission belt |
ultraviolet rays Teflon |
The Width of Teflon |
200mm |
Tube |
2KW*1piece |
Wavelength of Tube |
365mm |
The length of Tube |
300mm |
The shine length of tube |
200mm |
Transmission Motor |
Electron Regulate Speed 15w |
Transmission Style |
Chain Transmission |
Cooling Motor |
40W*1set 220V |
Ballast Resistor |
2.0KW*1set |
Decoration Style |
injection |
Rubber Foot Margin |
Four piece |
Panel |
Superior Cold Plate |
The lifetime of Tube |
It can achieve 800 hours if you use it for 24 hours continuously all day. |
OEM: our factory can custom according to your requirement with our excellent engineers who have more than 10 years experience
