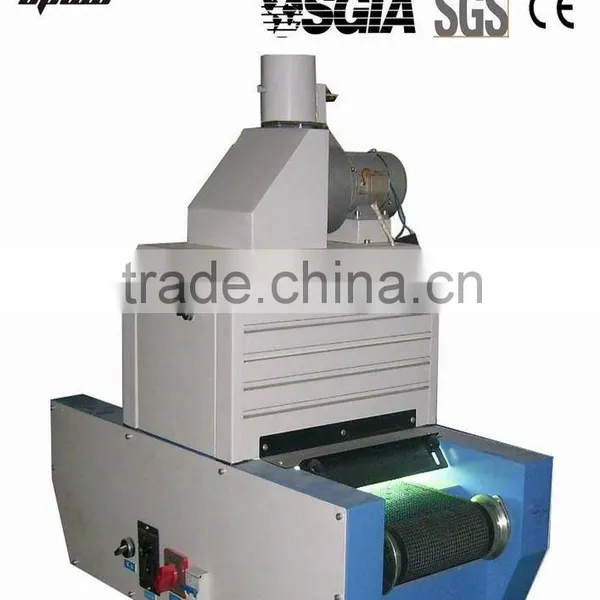

Portable UV Curing Machine1.Suitable for UV ink curing,varnish,frosted, wrinkles
2.The Width of Teflon:200mm
Portable UV Curving Machine
Specification:
1. This machine belong to Transmission UV Curing Equipment; It is used for the curing of Ink, Coating, Resin; It has these characters of small volume, light weight and perfect design; it can move conveniently and place on the desk;
2. The Reflector of this equipment adopt focusing type baffle-board;
3. It's very convenient to adjust the height of UV lamp; it has an uniform luminance and long lifetime;
4. The transmission speed is 1-8m/min; you can adjust the speed stepless;it transmit stably and has low noise;
Technical Parameters:
Name |
Technical Parameters |
Model |
YBL-UV200-1 |
Power |
Single Phase220V 50Hz |
The height of feeding material |
30mm |
The length of feeding & discharging material |
170/170mm |
Overall Size |
L800mm*W430mm*H638mm |
Transmission belt |
ultraviolet rays Teflon |
The Width of Teflon |
200mm |
Tube |
2KW*1piece |
Wavelength of Tube |
365mm |
The length of Tube |
300mm |
The shine length of tube |
200mm |
Transmission Motor |
Electron Regulate Speed 15w |
Transmission Style |
Chain Transmission |
Cooling Motor |
40W*1set 220V |
Ballast Resistor |
2.0KW*1set |
Decoration Style |
injection |
Rubber Foot Margin |
Four piece |
Panel |
Superior Cold Plate |
The lifetime of Tube |
It can achieve 800 hours if you use it for 24 hours continuously all day. |
OEM: our factory can custom according to your requirement with our excellent engineers who have more than 10 years experience.
