Help CenterUV Curing Machine
Related Products
Specifications
Uv curing machine1.General-use, mature and stable performance
2. Novel model
3. Fast speed

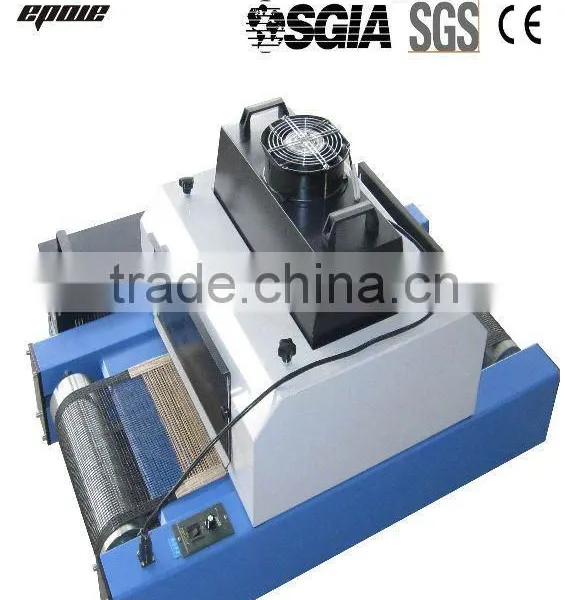

YBL - UV 300-1 Curving Machine
Specification:
1. This machine belong to Transmission UV Curing Equipment; It is used for the curing of Ink, Coating, Resin; It has these characters of small volume, light weight and perfect design; it can move conveniently and place on the desk;
2. The Reflector of this equipment adopt focusing type baffle-board;
3. It's very convenient to adjust the height of UV lamp; it has an uniform luminance and long lifetime;
4. General-use, mature and stable performance.
5. The distance between UV lamp and net belt surface is adjustable, focus reflection device, and ensure Uniform illumination.
6. The reasonable cooling system makes UV lamp illuminate with full power and extends the life span of UV lamp.
7. Lamp box design makes it convenience for the wipe, replacement and maintenance of UV lamp and its reflecting cover.
8. Transmission speed can be adjusted in effective range.
9. Uv curing machine with dynamic surface temperature below 40 degrees Celsius.
10. The speed of net belt and the height of UV lamp is adjustable.
Application:
This is one kind of UV Curing Equipment. It is widely used in the UV paint surface coating of mobile phone shell, membrane switch, and plastic shell of electronic products. It is also used in Curing electronic components, liquid crystal slice, terminal gum, mobile phone assembly gum, plastic assembly gum and LCD; it has a small volume and light weight, craft and move conveniently.
Technical Parameters:
a. Overall Size (L*W*H): 1020*660*557mm
b. The length of feeding material: 250 mm
c. The length of discharging material: 270mm
d. The width of Teflon: 300mm
e. The material of mesh belt: Teflon
f. The height of feeding material: 80±10mm
g. The height of feeding material hole: 10~120mm
h. Wattage of Tube: 2KW/piece, the shinning height of lamp tube can be adjusted by manual
i. The shinning width of light tube: 300mm
j. The shinning width of light tube: 300mm
k. Exhaust Fan: 38W,2set
l. Wavelength: 365nm
m. Stable Time: about 3 minutes
n. Lifetime: 1000hours, (we can promise 800 hours)
o. Transmission Motor: 25W/set
p. Transmission Speed: 0-12m/min, the transmission speed can be adjusted stepless;
q. The transmission way: chain
r. The way of Regulating Speed: electronic speed regulation
s. Power: 220V
t. Net Weight: 65kg
u. Gross Weight: 70kg;
OEM & ODM:
With the strong belief and continuous efforts and the past many years'experience in manufacturing machinery . Epole will create every machine with heart , and provide excellent service for our customers . Welcome your inquiry !
